FrOnt Panel Hardware
The front panel of Vess A6120 provides access to drive carriers. It is shipped with a secure bezel cover to
protect the drive carriers from being unintentionally removed.
For all Vess A-Series enclosures, defective drives can be replaced without interruption of data availability to
the host computer. The self-contained hardware-based RAID logical drive provides maximum performance in a
compact external enclosure.
Also on the front panel are two USB 2.0 ports, LED indicators, power button, UID button, and VGA port. See
“Front Panel Controls and LED indicators” on page 7 for details about LED indicators and controls on the front
panel.

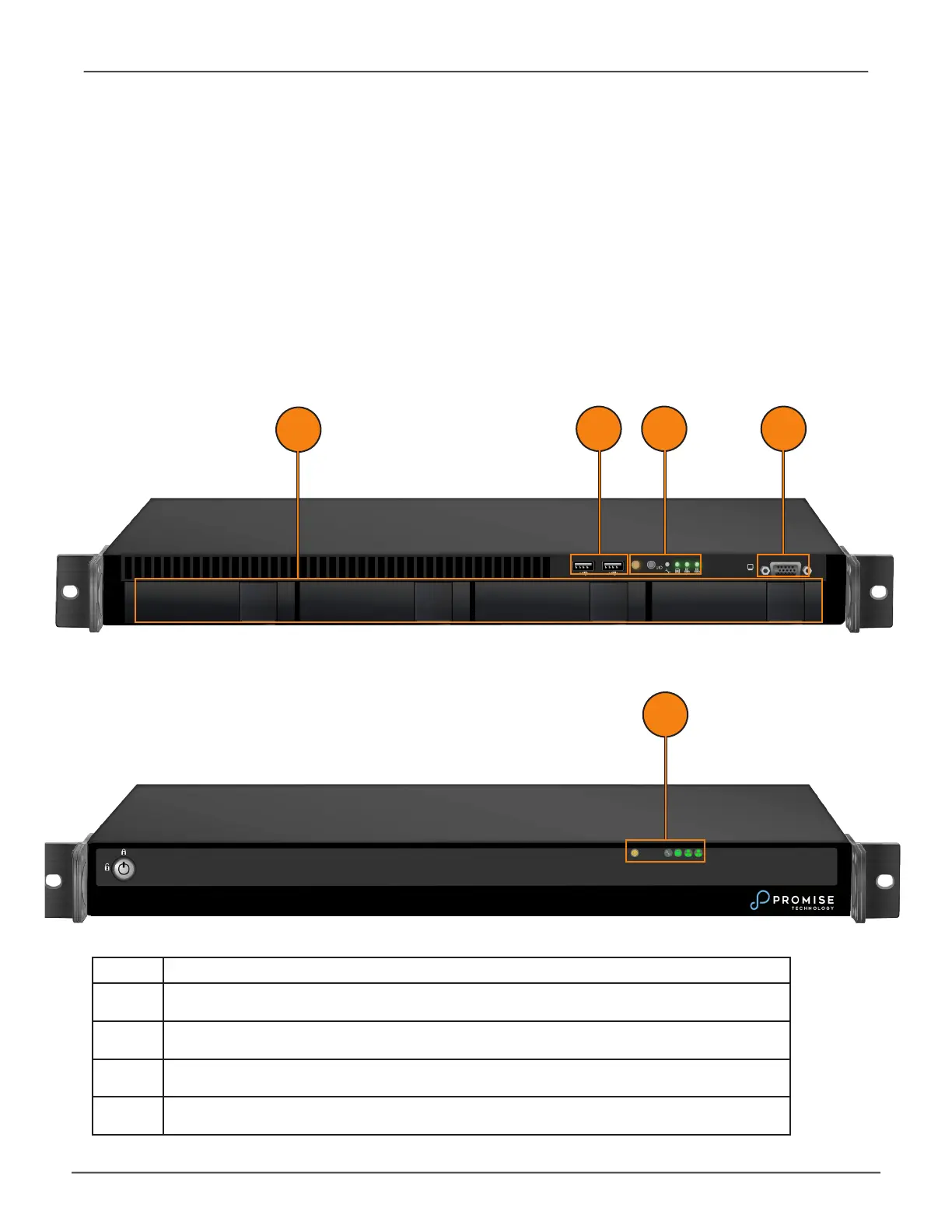

No. Description
1 4 x 3.5" Hot-Swap HDD Trays (HDD0~HDD3)
2 2 x USB 2.0 Ports
3 Control Panel Buttons and LEDs
4 VGA Port
HDD0 HDD1 HDD2 HDD3
1
2 3 4
Front Panel without bezel cover
Front Panel with bezel cover (Vess A6120-MS pictured)
3
5
IntroductionVess A6120 Product Manual
