No. Description
1 USB 2.0 Port (USB1)
2 USB 2.0 Port (USB2)
3 Power Button and LED
4 UID Button and LED*
5 Error Status LED*
6 RAID Status LED*
7 LAN1, LAN2 Activity LED*
Front PAneL ControLs And Led indiCAtors
The Vess A6120 is shipped with a lockable front secure cover to provide physical security for installed hard disks
and cooling unit module. Use the tubular key shipped with the unit to lock or unlock this cover to access the six
hard drive carrier trays and removable cooling unit in front.

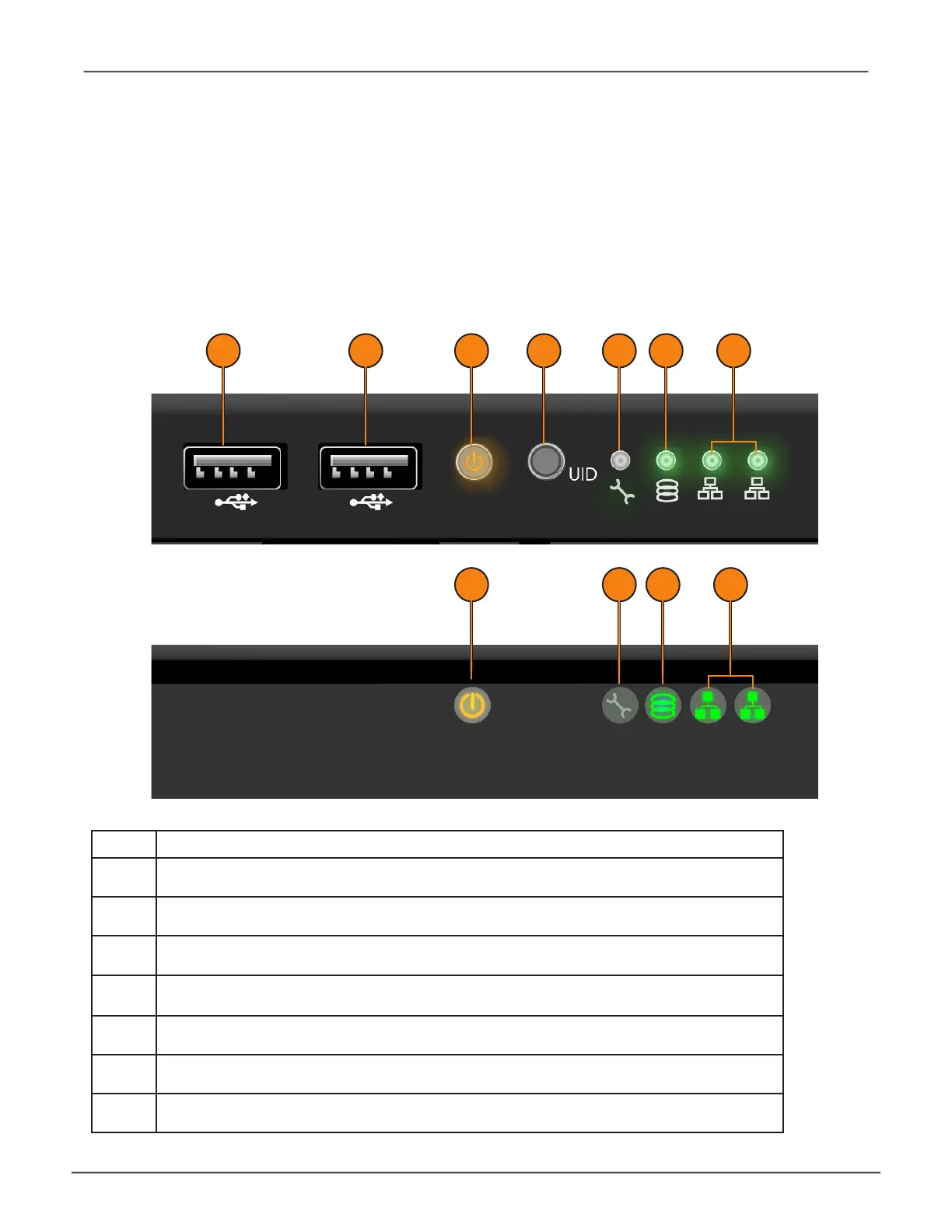

The left panel contains the power button, various LEDs, USB ports and the tubular lock. Note that top illustration
below represents the Vess A6120 front panel LEDs and controls with the bezel cover removed.
Front Panel LEDs with bezel cover
Front Panel Controls and LEDs with bezel cover removed
1 2 3 4 5 6 7
3 5 6 7
7
IntroductionVess A6120 Product Manual
