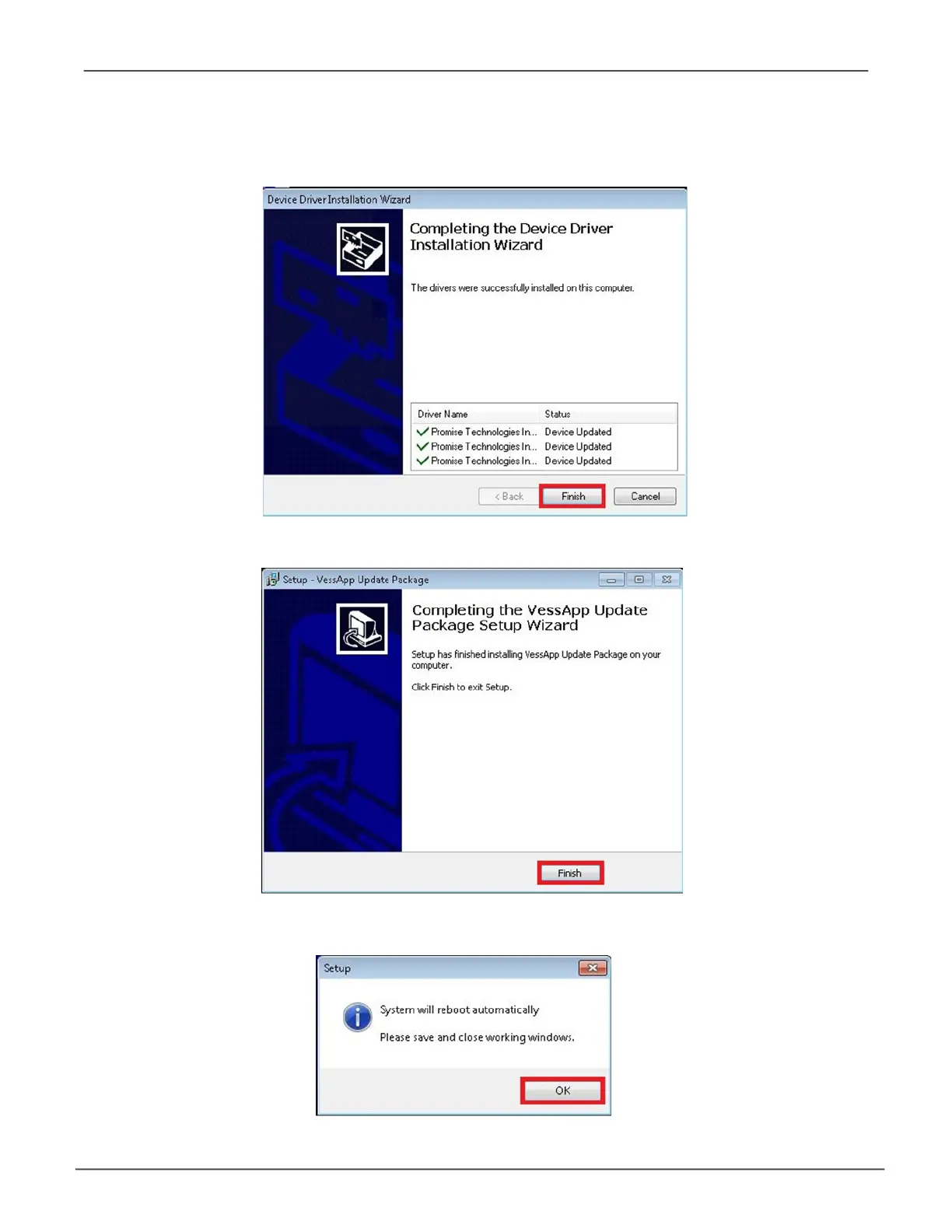

8. The Driver Installation Wizard menu informs you that the driver is now installed. Press the

Finish button to continue.

9. The nal Setup menu appears. Click on Finish.

10. A restart is required for the new driver to begin operating. Press the OK button to restart the

system.
