Configuration MP.11-R Installation and Management
QoS (Quality of Service) Parameters (BSU Only)
132
• PIR Priority: This priority per rule defines the order of execution of PIRs during packet identification process. The PIR
priority is a number in the range 0-63, with priority 63 being executed first, and priority 0 being executed last. The PIR
priority is defined within a QoS class, and can be different for the same PIR in some other QoS class. If all PIRs within
one QoS class have the same priority, the order of execution of PIR rules will be defined by the order of definition of
SFCs, and by the order of definition of PIRs in each SFC, within that QoS class.
• Entry Status: This field is always set to Enable.
Click Add to add the entry. The new entry will be listed as the next sequential index entry in the SF Details table.
From this screen you may also edit an existing SFC by clicking on Details. See Edit an Existing SFC Associated with the
QoS Class for more information.

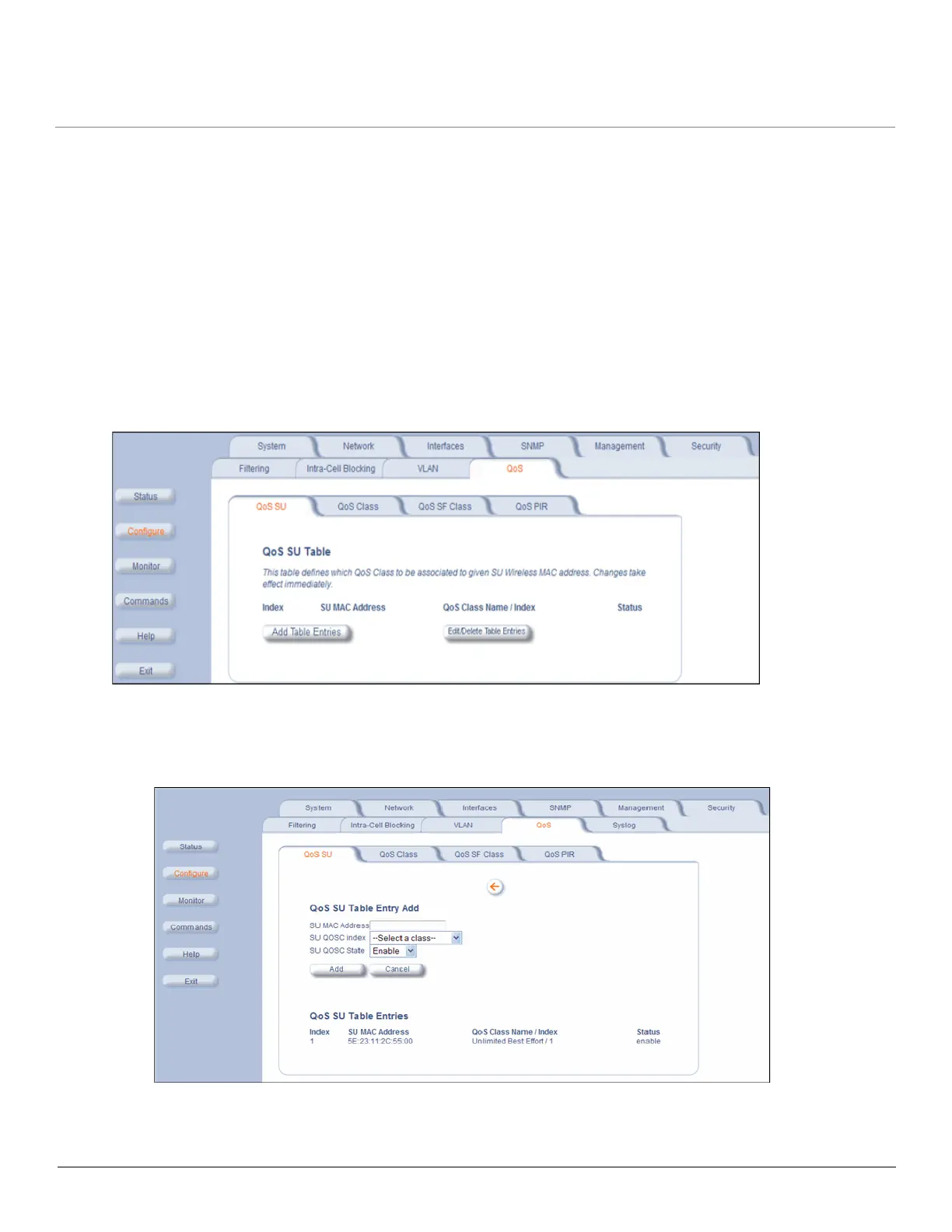

QoS SU Configuration
Click Configure > QoS > QoS SU.
This screen defines which QoS Classes will be associated to which SUs, using the SUs’ MAC addresses.
To add entries to the QoS SU Table, click Add Table Entries.
Enter the following information:
• SU MAC Address: The MAC Address of the SU you want to associate to a specific QoS Class.
