Step 4: Determine Proper Mounting Orientation

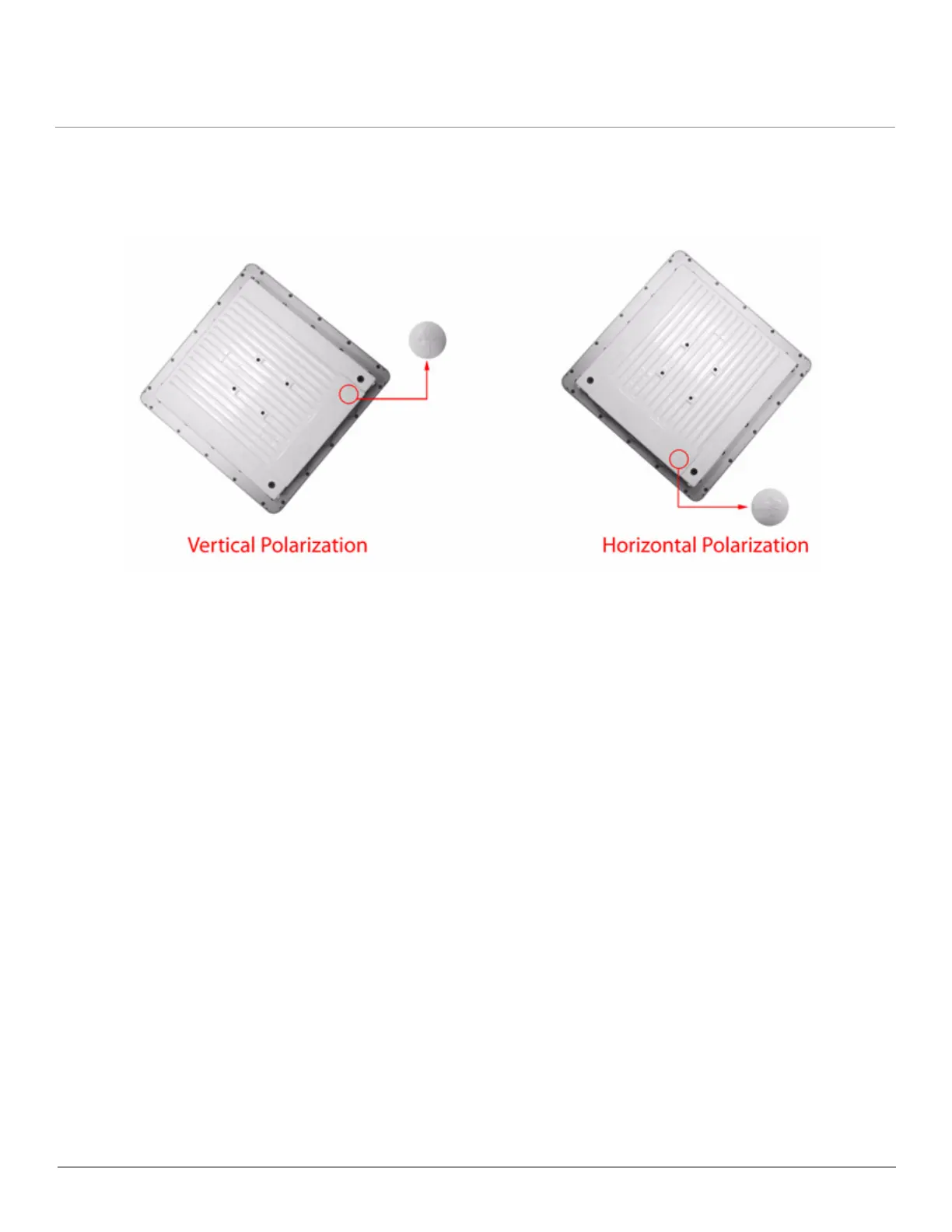

1. Locate the arrow on the back of the unit and determine your desired mounting orientation. For vertical polarization
using the integrated antenna, the arrow should be pointing up (perpendicular to the ground). For horizontal
polarization using the integrated antenna, the arrow should be horizontal (parallel to the ground).
