Step 8: Power on the Unit
Once you have connected the power injector to the Ethernet cabling and plugged the power injector cord into an AC
outlet, the unit is powered on. There is no ON/OFF switch on the unit. To remove power, unplug the AC cord from the AC
outlet or disconnect the RJ45 connector from the “Data and Power Out” port on the power injector.
Step 9: View LEDs
When the unit is powered on, it performs startup diagnostics. When startup is complete, the LEDs show the unit’s

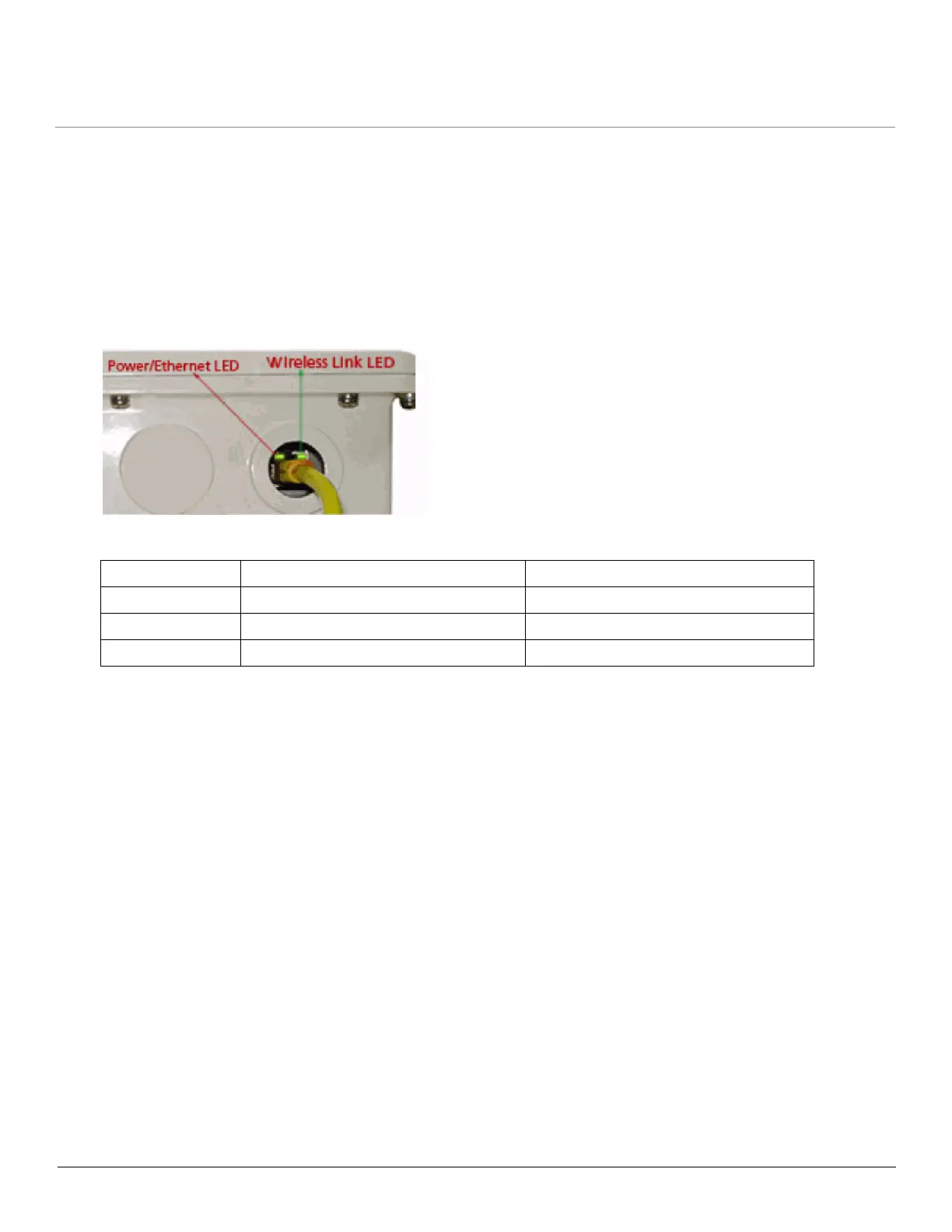

operational state. The LEDs are present at the unit’s Ethernet connector.
LEDs exhibit the following behavior:
LED State Wireless LED Power/Ethernet LED
Red Power is on; unit is self-heating. —
Flashing Green Wireless link is being established. Power is on, Ethernet link is down.
Solid Green Wireless link has been established. Power is on, Ethernet link is up.
