Installation and Initialization
Tsunami QB-8100 Series (100 Mbps/5 Mbps Models) Installation and Management Guide 23

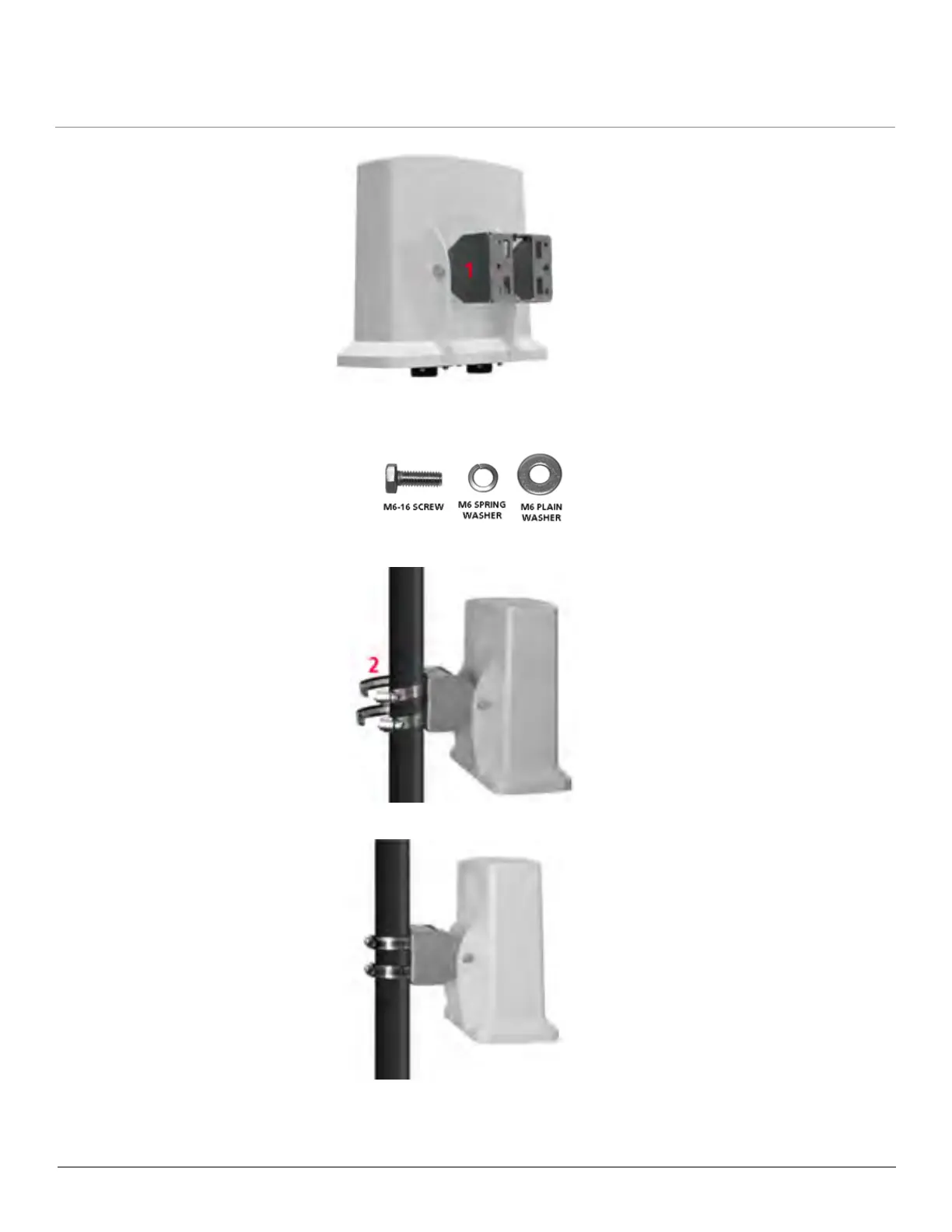

NOTE: Slide the M6-16 screw through the M6 Spring washer first and then through M6 plain washer. Misplacement of
the washers may cause damage to the enclosure.
3. Slide the hose clamps (2) through the mounting bracket and place the hose clamps around the pole as shown below:
4. Insert the end of the hose clamps into the fastening clip and tighten the screw as shown below:
NOTE: Do not over tighten the screws at this stage, as the unit may need adjustment to obtain good signal strength.
An optional universal wall mounting kit bracket is also available from Proxim (P/N 77537); this kit is designed to mount the
unit directly to a flat surface such as a roof, wall, or under an eave.
