MP3
Therapy Beam Analyzer
Operating Manual – The Components of the MP3 System
14 D175.131.00/11 en
1.3 Positioning Device
The positioning device allows the Perspex tank to
be aligned, using the light beam diaphragm, the
laser system and the lines on the walls of the tank.
The positioning device has three adjustable legs
with hand wheels that allow the height to be ad-
justed by ± 10 mm. Additionally, the three adjusting
screws allow the tank to be adjusted horizontally by
± 10 mm, or by approx. 1° on a vertical axis (micro-
adjustment). A mechanism allows the tank to be
rotated by 45°or 90° (refer to
Figure 5 for center of
rotation).
Horizontal alignment of the tank is easy when it is
filled to the horizontal lines and the water surface is
used as a level.
The tank is screwed on to the positioning device
(see section
2.1).

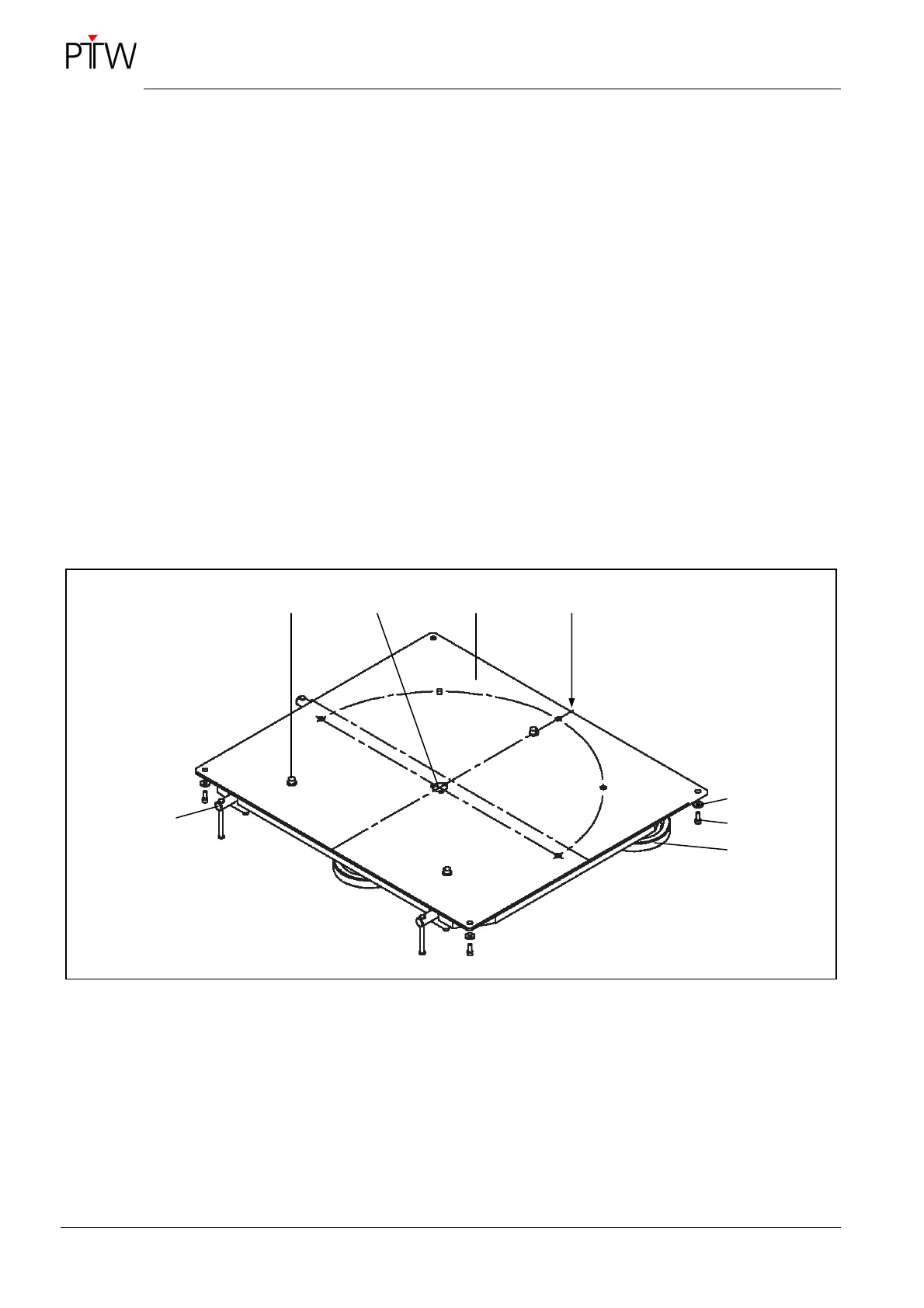

Figure 5: Positioning device for tank alignment
1 Transportation lock
2 Center of rotation
3 Plate
4 Locking device
5 Adjusting screw (3x)
6 Washer 6.4 DIN 9021 (4x)
7 Screw M6x16 DIN 912 (4x)
8 Adjustable leg (3x)
8
7
6
5
4 2 3 1
