MP3
Therapy Beam Analyzer
Operating Manual – Installation of the System for Measurement
32 D175.131.00/11 en
3.6.4 Mounting the Diamond Detector T60003
• Secure holder T4316/U251 on the C-slider, us-
ing two M4x10 screws.
• Introduce the diamond detector into the holder
such that the thin end of the metal stem (area
between detector housing and cable exit) rests
on both edges of the bore hole in the holder.
• Push the detector toward the front so that the
thicker part of the metal stem at the cable exit
rests against the rear edge of the holder. Secure
the detector with the clamping screw (
Figure 19)

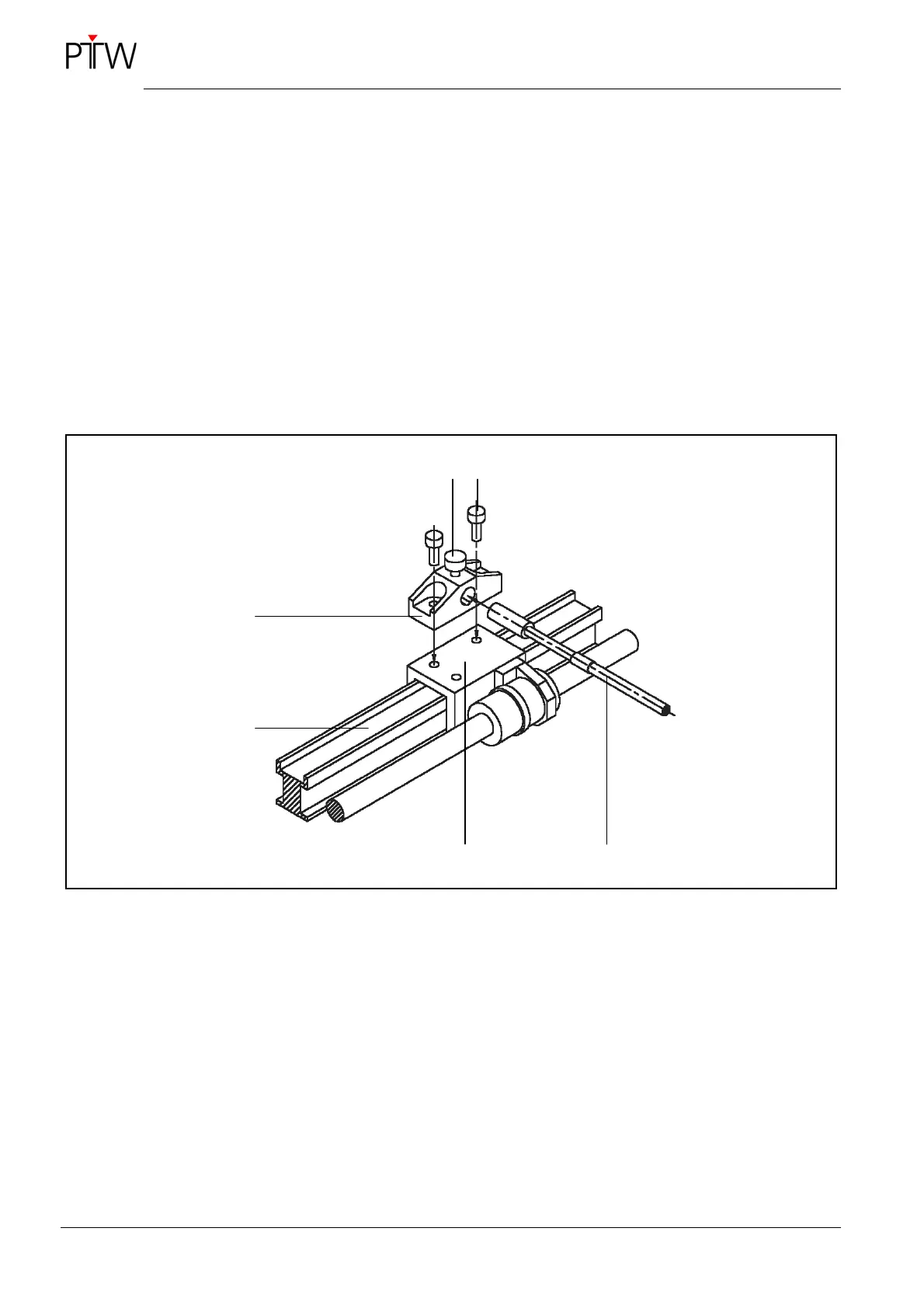

Figure 19: Mounting the Diamond detector T60003 with holder T4316/U251
1 White plastic screw
2 Screw M4x10 DIN 912 (2x)
3 Holder type 4316/U251
4 C-axis
5 C-slider
6 Diamond detector
2 1
5 6
4
3
