2.2 Assembly Junction Box and
Moving Mechanism
• Mount the junction box (T41013.1.100) to the
Perspex tank as shown in
Figure 3, using M4x40
screws and washers.
• Place the A-axis on the supports to the right and
left of the angle pieces on the Perspex container
and secure the axis with a swivel washer and an
M6x16 screw at each end, as shown in
Figure 9.

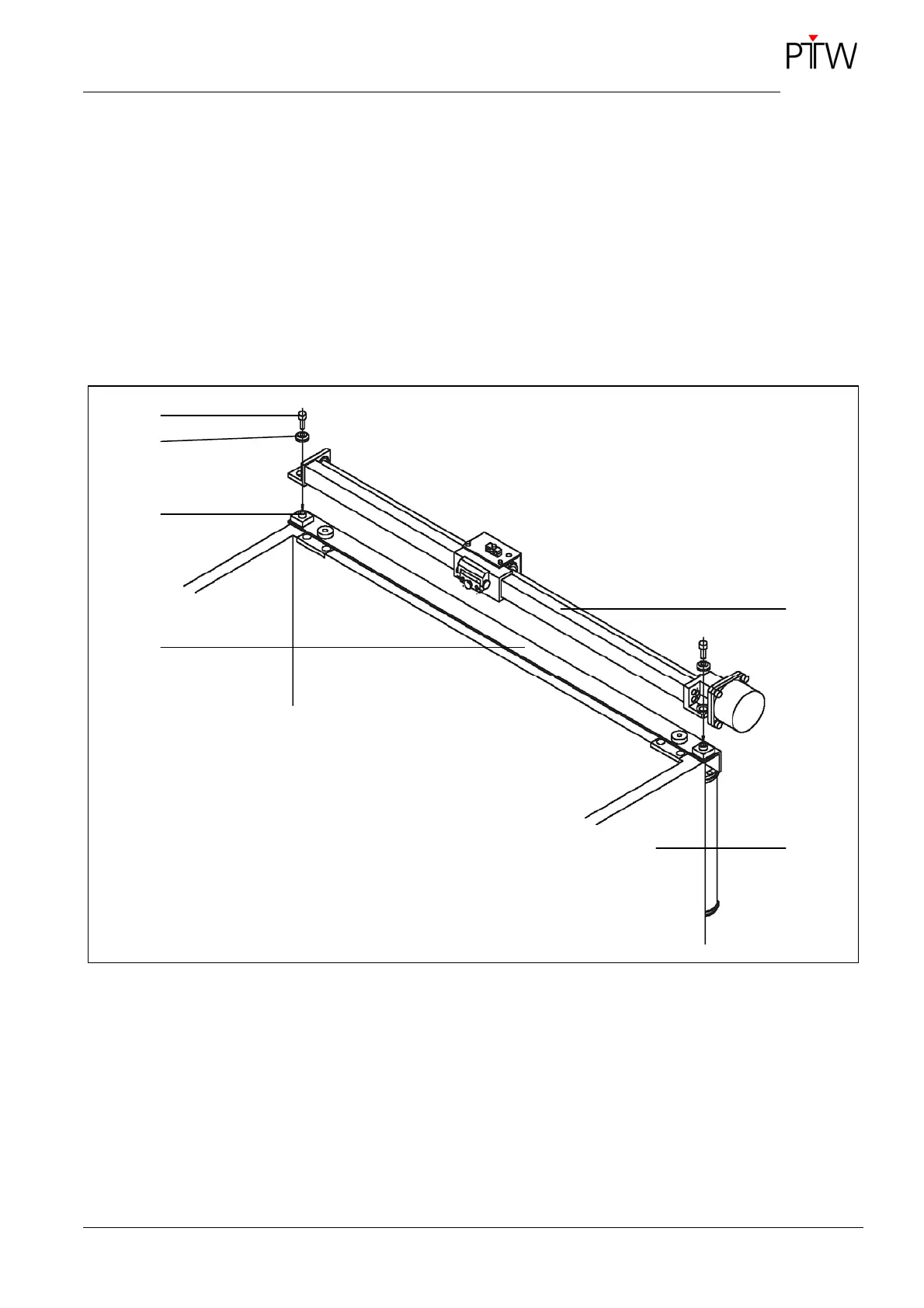

Figure 9: Mounting the A-axis
1 Screw M6x16 DIN 912 (2x)
2 Washer (2x)
3 Support (2x)
4 Angle
5 A-axis
6 Perspex tank
1
6
2
4
3
5
