PTW MP3 - Figure 20: Installing the Liquid Level Switch; Setup for TPR Measurements

MP3
Therapy Beam Analyzer
Operating Manual – Installation of the System for Measurement
D175.131.00/11 en 35
3.9 Setup for TPR Measurements
• Check whether your MP3 system is suitable for
TPR measurements.
• Connect the water reservoir and the junction box
(“RESERVOIR” socket refer to
Figure 4) using
cable T4316/K300.
• Attach holder T4316/U371 for the liquid level
switch L409005 to the moving mechanism (see
Figure 20).
• Mount the liquid level switch in the holder (may
be preinstalled).
• Connect the liquid level switch to the “PROBE”
socket in the junction box (refer to
Figure 4).

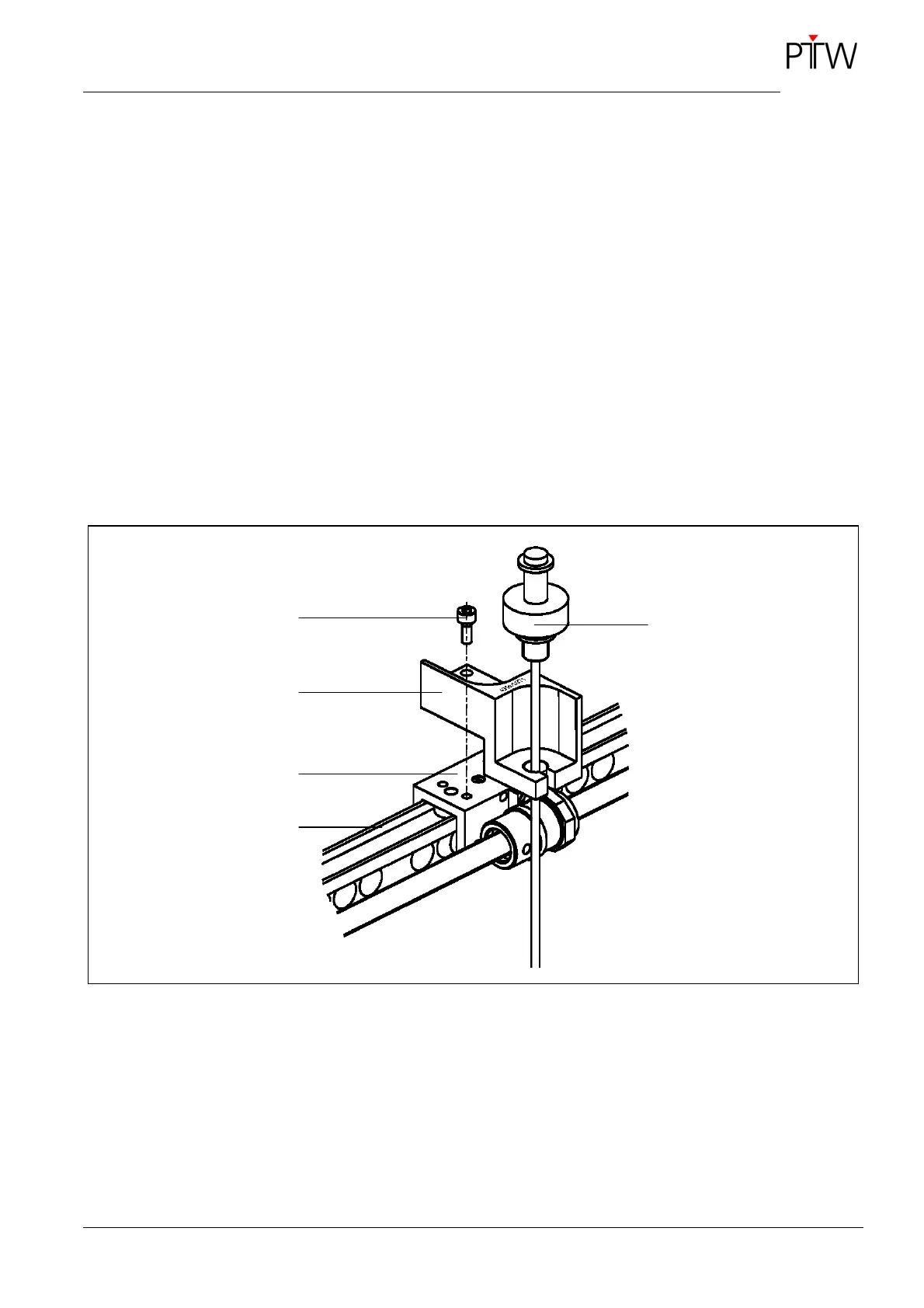

Figure 20: Installing the liquid level switch
1 Screw M4x10 DIN 912
2 Holder type 4316/U371
3 C-slider
4 C-axis
5 Liquid level switch type L409005
5
1
2
3
4
