3.6.2 Mounting the Electron Chamber T23343
• Secure holder T4316/U151 on the C-slider, us-
ing two M4x10 screws.
• Introduce the chamber as shown in Figure 17 as
far as it will go, then secure it with the two
clamping screws.

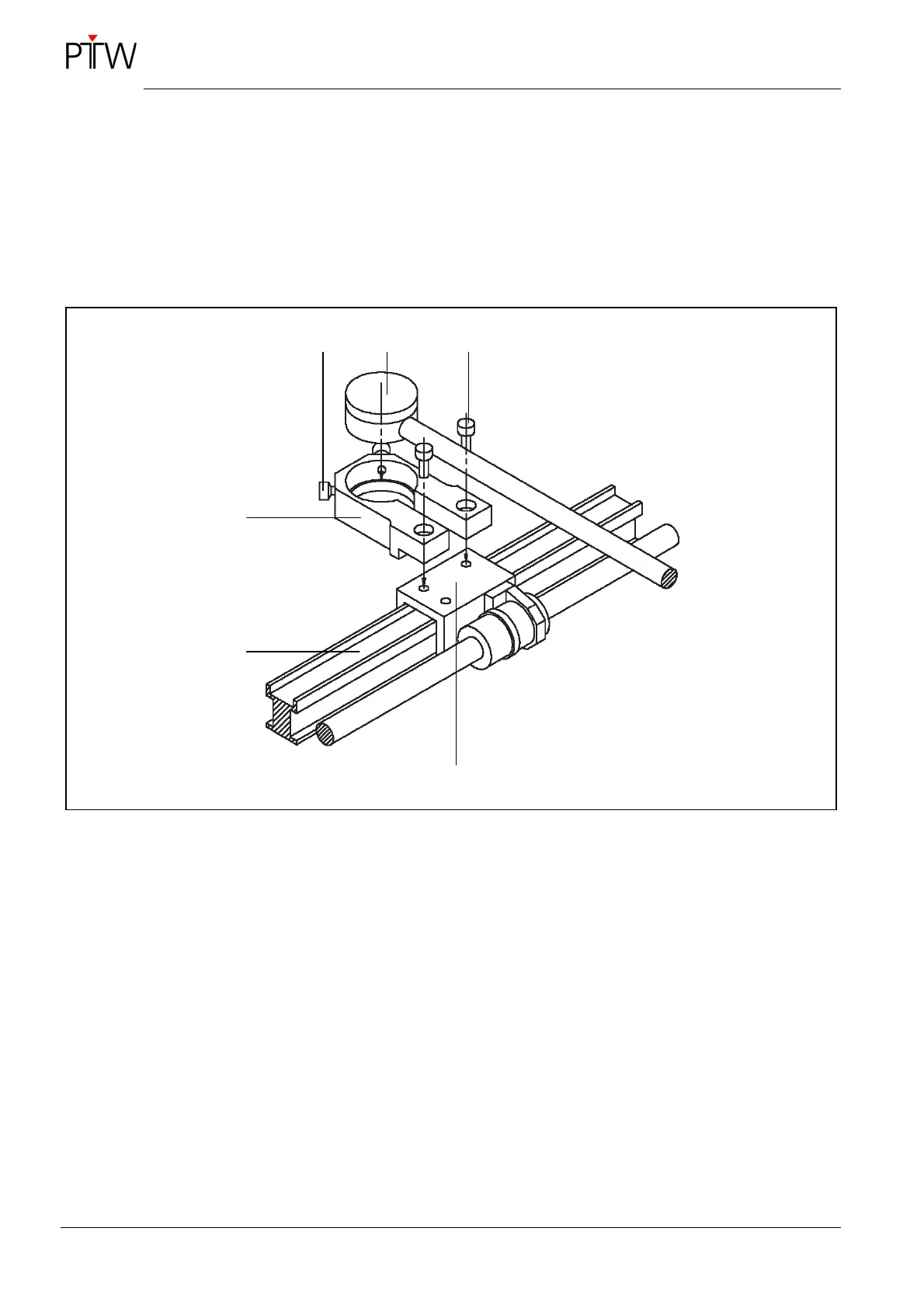

Figure 17: Mounting the chamber T23343 with holder T4316/U151
1 White plastic screw
2 Electron chamber
3 Screw M4x10 DIN 912 (2x)
4 Holder type 4316/U151
5 C-axis
6 C-slider
3 1
6
2
4
5
