MP3
Therapy Beam Analyzer
Operating Manual – Installation of the System for Measurement
D175.131.00/11 en 31
3.6.3 Mounting the Electron Chamber T34001
• Secure holder T4316/U271 on the C-slider, us-
ing two M4x10 screws.
• Introduce the chamber as shown in Figure 18 as
far as it will go, then secure it with the two
clamping screws.

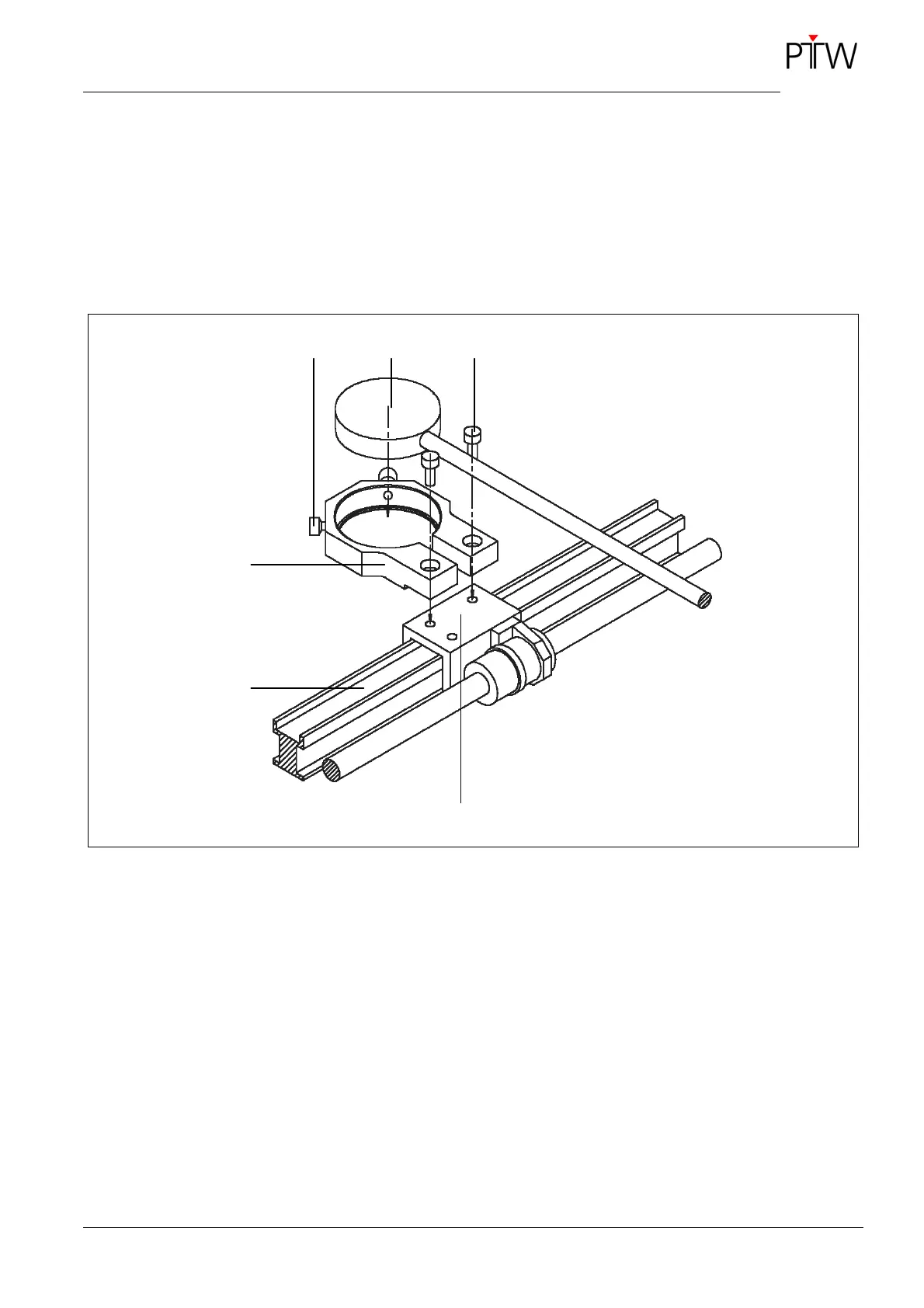

Figure 18: Mounting the Electron chamber T34001 with holder T4316/U271
1 White plastic screw
2 Electron chamber
3 Screw M4x10 DIN 912 (2x)
4 Holder type 4316/U271
5 C-axis
6 C-slider
3 1
6
2
4
5
