MP3
Therapy Beam Analyzer
Operating Manual – Installation of the System for Measurement
D175.131.00/11 en 29
Positioning the chamber T31010 with adjusting
cube T4316/U241 (refer to
Figure 15)
The adjusting cube T4316/U241 is intended for use
with the 0.125 cm3 chamber T31010. After mount-
ing the chamber, the adjusting cube is carefully
slipped over the chamber cap and secured with the
two plastic screws. The black lines engraved in
pairs and with a distance of 2 mm each allow the
exact adjustment at the water surface and on the
central beam. With these chambers, the reference
point is located 4.5 mm behind the chamber tip.
Positioning the PinPoint chamber T31014 with
adjusting cube T4316/U241 (refer to
Figure 15)
When using the adjusting cube in conjunction with
the PinPoint chamber T31014, please note that this
chamber’s reference point is 3.4 mm behind the
chamber tip. Compared with the chamber T31010,
the reference point is moved 1.1 mm toward the
chamber tip in this case. The reference point of the
chamber is thus located almost exactly under the
front line of the pair of lines on the adjusting cube.
After mounting the chamber, the adjusting cube is
carefully slipped over the chamber cap and secured
with the two plastic screws. The black lines en-
graved in pairs and with a distance of 2 mm each
allow the exact adjustment at the water surface and
on the central beam.
Positioning the chamber T31013 with adjusting
cube T4316/U541 (refer to
Figure 16)
The adjusting cube T4316/U541 is intended for use
with the 0.3 cm³ chamber T31013. After mounting
the chamber, the adjusting cube is carefully slipped
over the chamber cap and secured with the two
plastic screws. The black lines engraved in pairs
and with a distance of 2 mm each allow the exact
adjustment at the water surface and on the central
beam. With these chambers, the reference point is
located 9.5 mm behind the chamber tip.

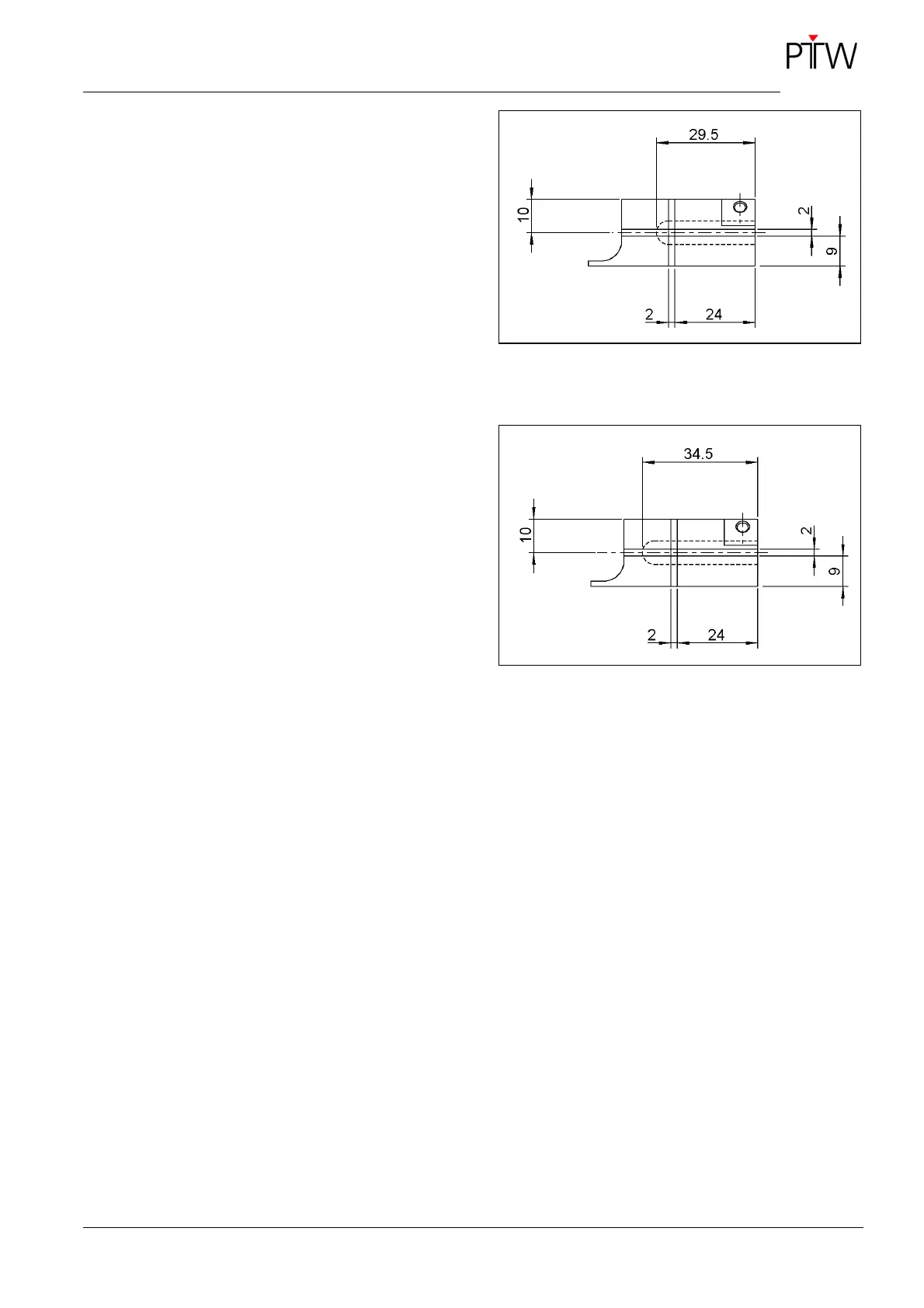

Figure 15: Adjusting cube T4316/U241
Figure 16: Adjusting cube T4316/U541
