MP3
Therapy Beam Analyzer
Operating Manual – Installation of the System for Measurement
D175.131.00/11 en 23
3.2 Connection of the Water
Reservoir
3.2.1 Connecting the Water Reservoir
• Place the water reservoir next to the Perspex
tank. First connect the water reservoir to the
power line, using the power cord (connector at
the control panel of the water reservoir).
• Fit the coupling of the open tubing end on the
nipple of the Perspex tank (
Figure 13). Make
sure that the nipple fully snaps into the coupling.
3.2.2 Disconnecting the Water Reservoir
• Remove the plastic hose from the Perspex tank.
To do this pull back the unlocking bush of the
coupling and then remove the coupling.

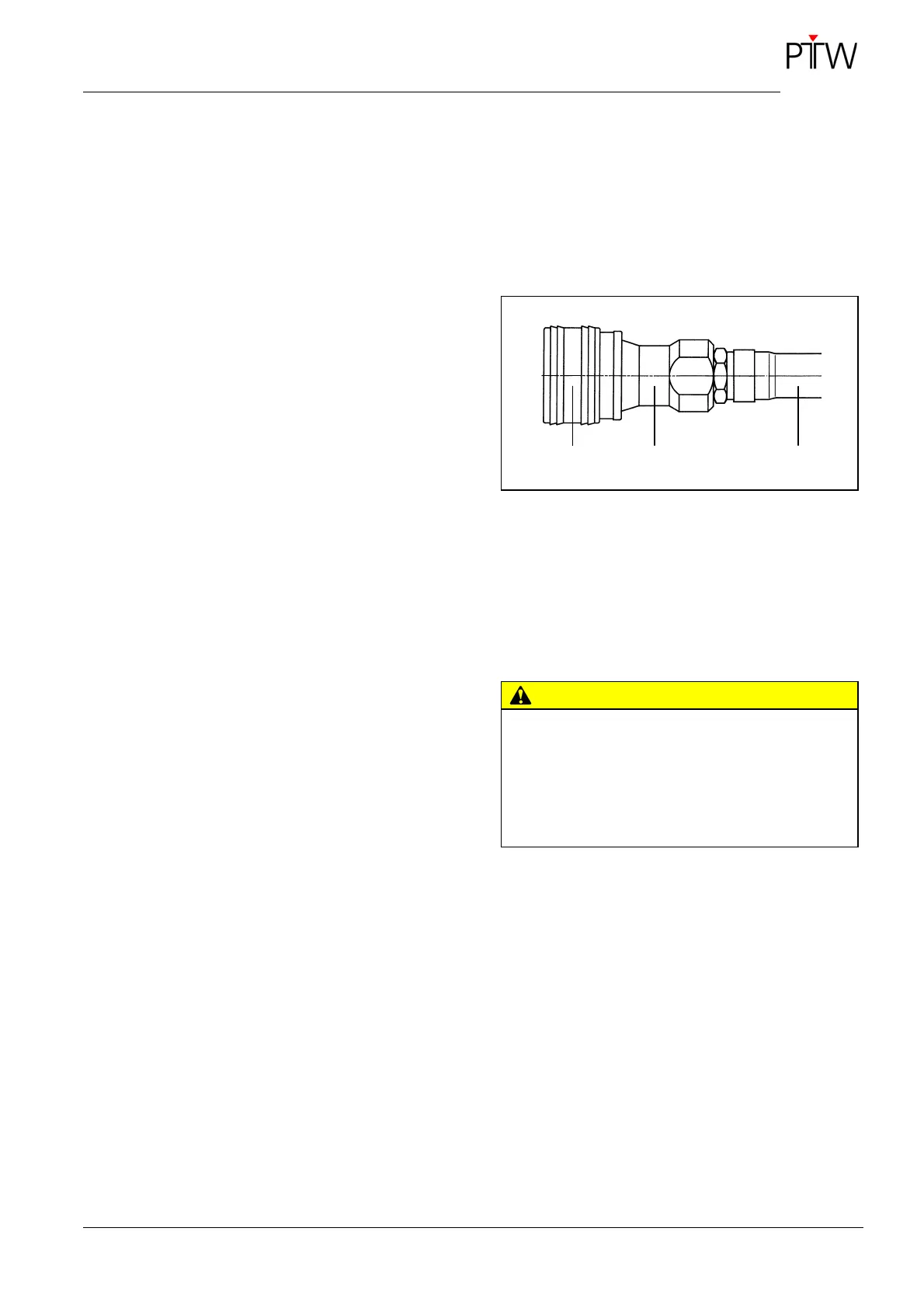

Figure 12: Coupling of the plastic hose of the water
reservoir
1 Coupling
a Unlocking bush
2 Plastic hose
CAUTION
Improper handling.
Equipment damage!
If you are pumping water, you must not remove
the plastic hose between water reservoir and
Perspex tank.
• Disconnect the power cord of the water reservoir
from the power line.
1a 2 1
