PTW MP3 - Figure 6: MP3 Lifting Carriage; Lifting Carriage

MP3
Therapy Beam Analyzer
Operating Manual – The Components of the MP3 System
D175.131.00/11 en 15
1.4 Lifting Carriage
The positioning device plus Perspex tank can be
placed on the lifting carriage (
Figure 6). An electro-
mechanical scissors-type lifting carriage allows the
height to be easily adjusted by means of the two
pushbuttons on its front panel. The platform is lifted
exactly parallel. The lifting carriage has no hydraulic
parts. Therefore, the adjusted height is maintained
indefinitely.
As an alternative to the motor-driven lifting carriage,
a carriage with a fixed height can be used.

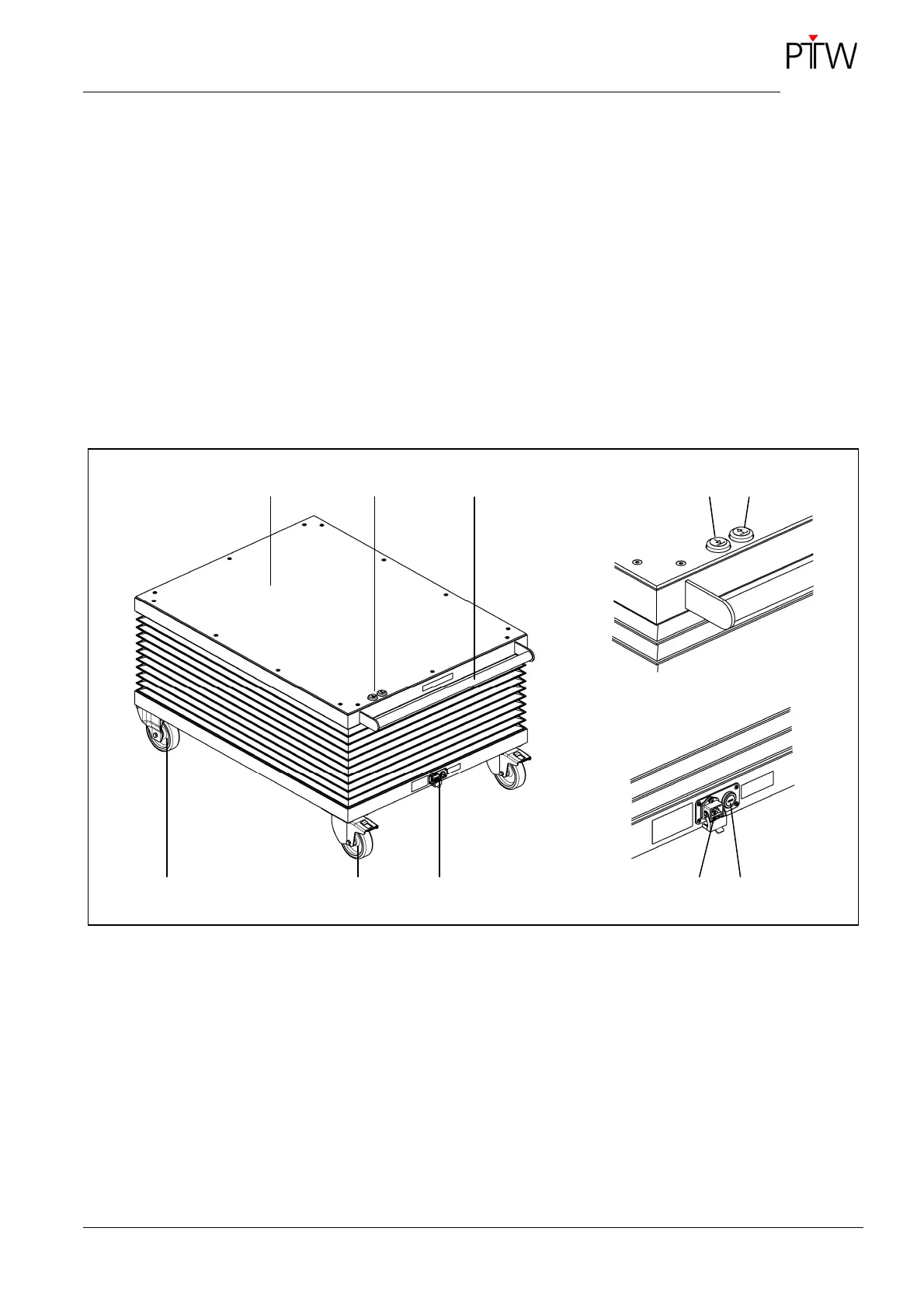

Figure 6: MP3 lifting carriage
1 Bearing plate
2 Control buttons
a Control button "Lowering"
b Control button "Lifting"
3 Push rod
4 Fixed castor (2x)
5 Castor with total locking device (2x)
6 Mains connection and fuse
a Connection for power cable
b Fuse
4
3 2 1
6 5
2a 2b
6b 6a
