PTW MP3 - Figure 14: Mounting the Chamber T31010, T31013, T31014 and the Light Probe T9311

MP3
Therapy Beam Analyzer
Operating Manual – Installation of the System for Measurement
28 D175.131.00/11 en

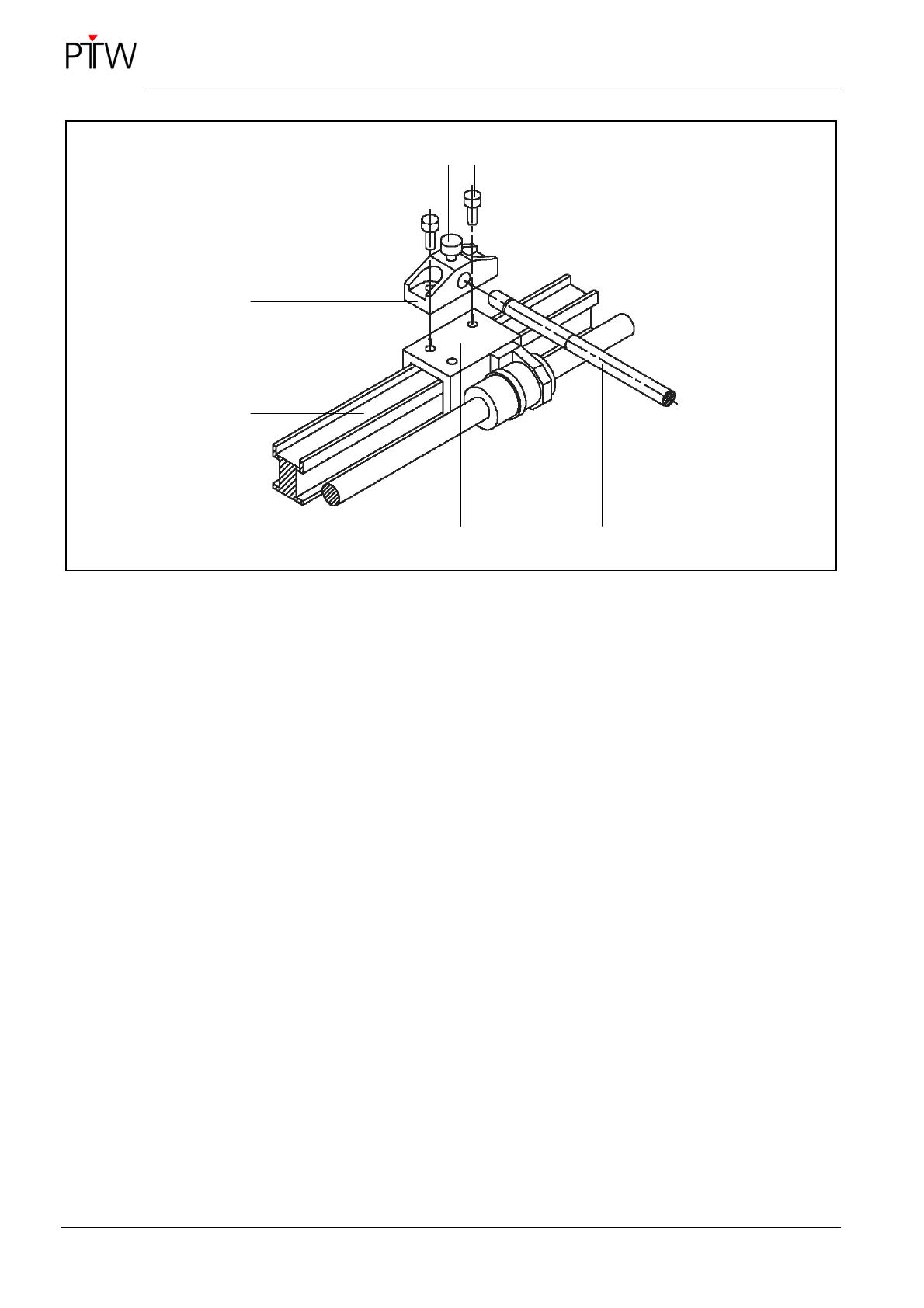

Figure 14: Mounting the chamber T31010, T31013, T31014 and the light probe T9311
1 White plastic screw
2 Screw M4x10 DIN 912 (2x)
3 Holder type 4316/U141
4 C-axis
5 C-slider
6 Ionization chamber
2 1
5 6
4
3
