QuadTech 1855 - IEEE-488 Commands - Detailed

Page 60 of 76 Interface
3.2.5 IEEE-488 Commands - Detailed
The IEEE commands listed in Figure 3-3 are detailed in paragraphs 3.2.5.1 – 3.2.5.39 including
command, parameter, return value, function, and description. Note: Numerical data is
transferred via one of three methods: integer format, fixed decimal format or floating point
decimal format. Refer to Figure 3-4.
+
<digit>
<digit>
+
-
Integer Format
Fixed Decimal Format
Floating Point Format
<NR1>
<NR2>
<NR3>
-
.
.
E
<digit>
<digit>
<digit>
+
-
+
-
<digit>
Example: 9000
Example: 9000.0
Example: 9.0E+3

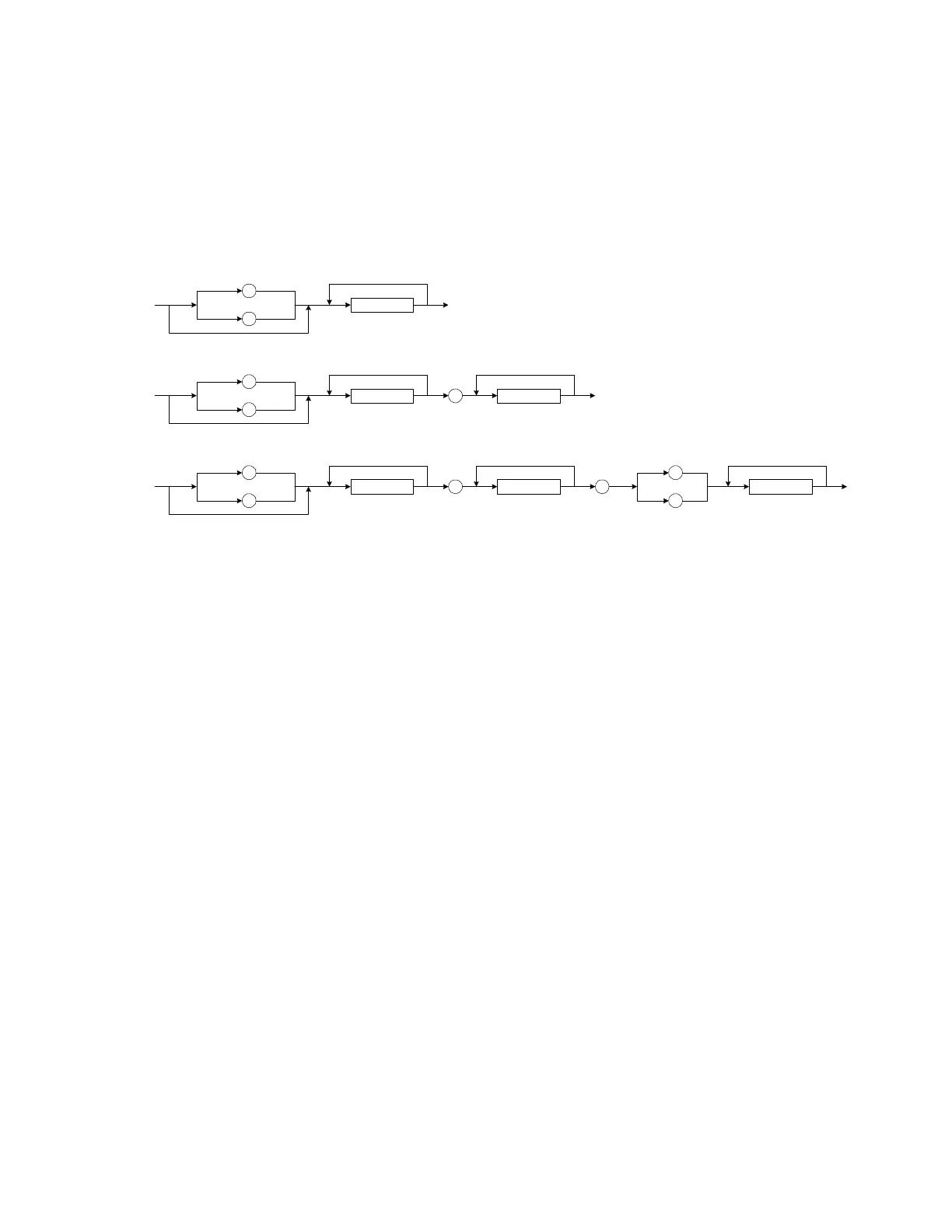

Figure 3-4: Numerical Data Transfer
3.2.5.1 ABOR
Instruction: ABOR
Parameter: None
Return Value: None
Function: Terminate Trigger in process and initiates Discharge.
3.2.5.2 CALC:LIM:FORM
Instruction: CALC:LIM:FORM
Parameter: {IR⏐LC}
Return Value: {IR⏐LC}
Function: Set or Query the measurement parameter for the Compare function.
Description: IR Insulation Resistance
LC Leakage Current
3.2.5.3 CALC:LIM:BEEP:COND
Instruction: CALC:LIM:BEEP:COND
Parameter: {FAIL⏐PASS}
Return Value: {FAIL⏐PASS}
Function: Set or Query the condition on which the beeper sounds.
Description: FAIL Beeper sounds on FAIL result
PASS Beeper sounds on PASS result
