Qualstar Q48 - Rear Panel; Figure 2 Q24;Q48 Rear Panel Components

Q24/Q48 Tape Library Installation and Operations Manual
1.3 Rear Panel
The rear panel of the Q24/Q48 Tape Library provides access to the drive interface connectors (either
SAS or Fibre Channel), the power connector, Ethernet, serial and USB ports and the magazine release
holes.
The power supply is on the left side, tape drives are in the middle and the library controller is on the
right side of the library.
Ref.
Description
Ref.
Description
1
Power supply (lower left)
A
Storage location for shipping lock.
2
Tape drive(s)
B
USB port (firmware upgrades, key storage)
3
Pull-out tab containing the product information
(Serial Number/Model/Customer)
4
Library controller

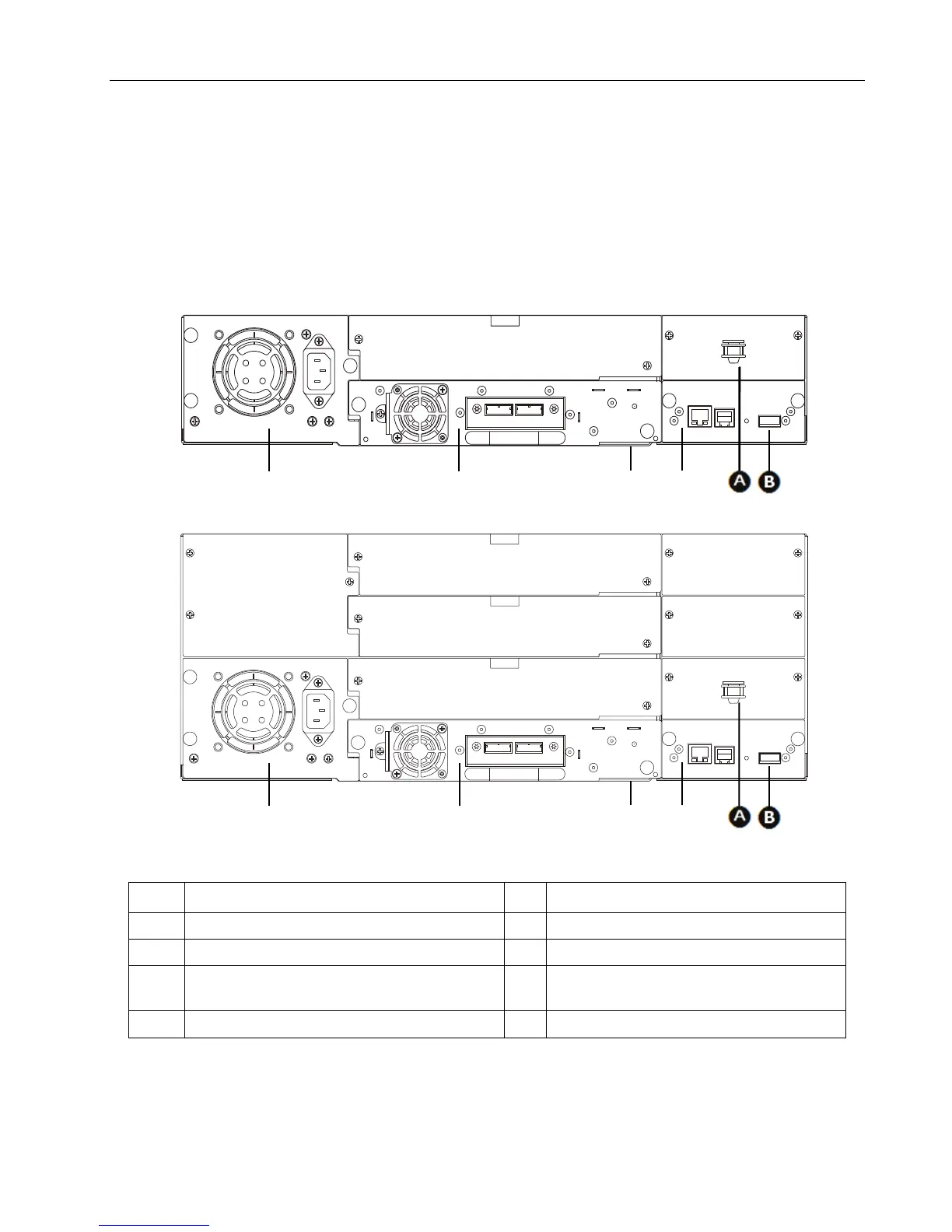

Figure 2 Q24/Q48 rear panel components




Q24
Q48




