Q24/Q48 Tape Library Installation and Operations Manual
FC connectors for both LTO Generations
Ref.
Description
1
Magazine release holes
2
Fan vent
3
FC connectors
4
Tape drive LED

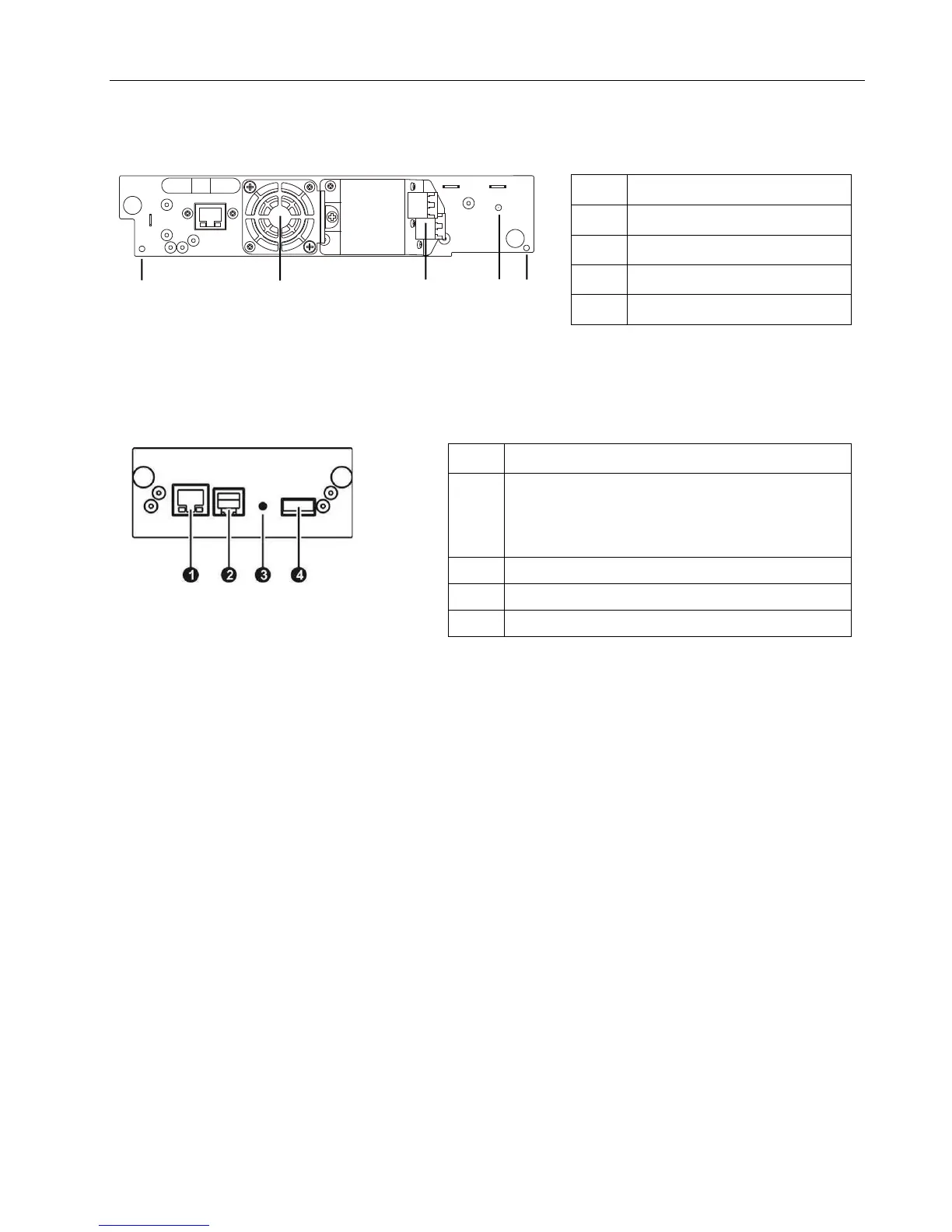

Figure 6 FC half-height tape drive
1.3.4 Library controller
Ref.
Description
1
Ethernet port (RMU connection). Left LED (amber) is
illuminated when a connection is in place. Right LED
(green) is illuminated when the connection is ready
or in use
2
Serial port (Engineering Diagnostics)
3
Controller LED blinking ok; if not, failure
4
USB port (Firmware upgrades, key storage)
Figure 7 Q24 / Q48 Library controller




A
B

© Copyright QUALSTAR 2015 7
