MITX-DNV0 Series - User Guide, Rev. 1.2
www.quanmax.com
// 17
3/ System Specifications
3.1. System Block Diagram

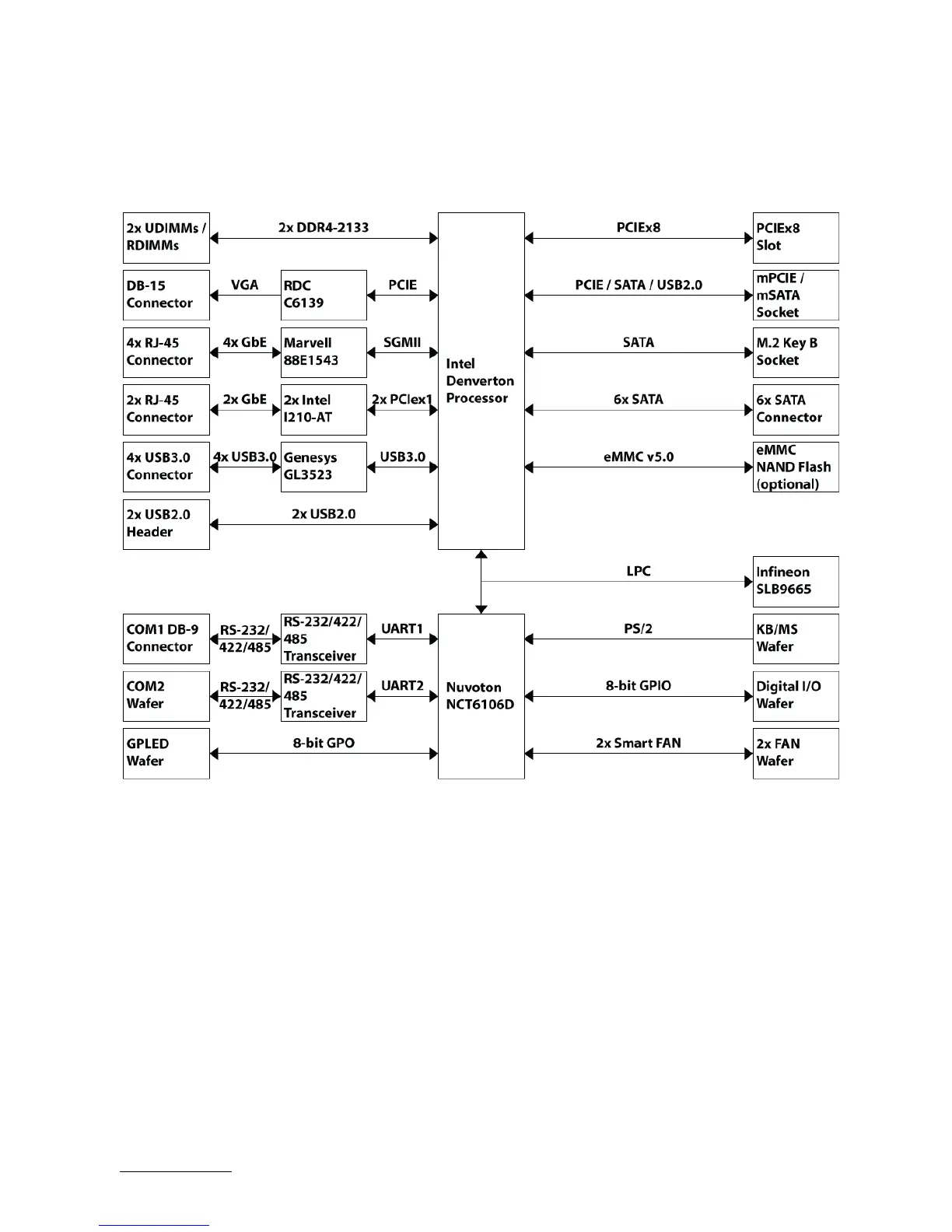

Figure 1: System Block Diagram MITX-DNV0 Series
