Quanmax MITX-DNV0 Series User Manual

MITX-DNV0 Series - User Guide, Rev. 1.2
www.quanmax.com
// 35

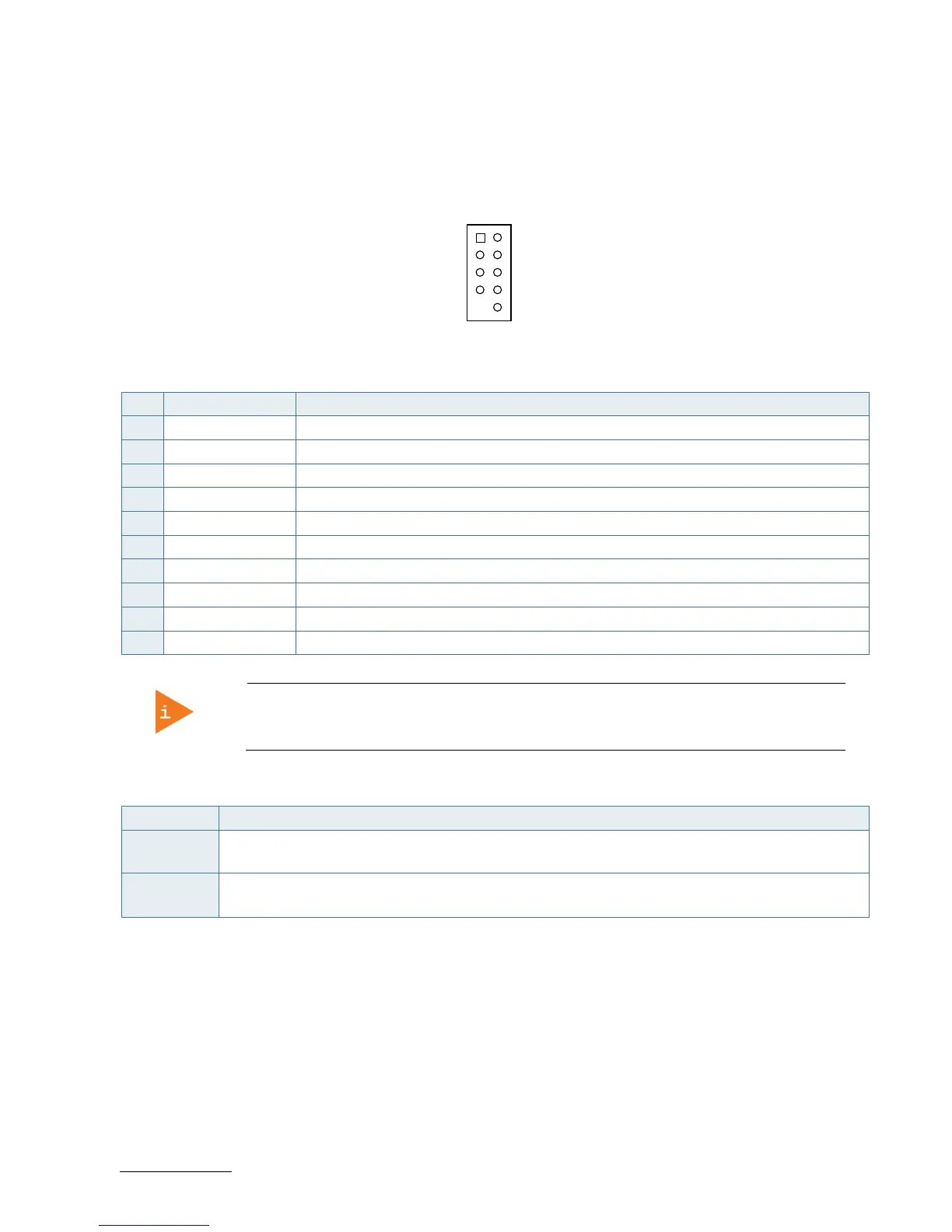

7.4. USB Connectors (Internal) (CN17)
The USB port pin header CN17 supports two USB 2.0 ports.
Figure 13: USB 2.0 Port 1, 2 Pin Header CN17
Table 24: Pin Assignment CN5
Pin Signal Note
1 +USBVCC
2 +USBVCC
3 USB_A-
4 USB_B-
5 USB_A+
6 USB_B+
7 GND
8 GND
9 KEY
10 GND
The power source of +USBVCC can be selected by JP2.
Table 25: Signal Description
Signal Description
+USBVCC 5 V supply for external devices. SB5V is supplied during power down to allow wakeup on USB device
activity. Protected by active power switch 1 A fuse for each USB port.
USB_A-/+
USB_B-/+
Universal Serial Bus Differentials: Bus Data / Address / Command Bus.
6
1
3
10
4
5
2
87
