Quanmax MITX-DNV0 Series User Manual

MITX-DNV0 Series - User Guide, Rev. 1.2
www.quanmax.com
// 34
7.3. SATA (Serial ATA) Port 1 ~ Port 6 Connector (SATA1 ~ SATA6)
The SATA connectors supply the data connection for the SATA hard disk and are SATA 3.0 compatible.

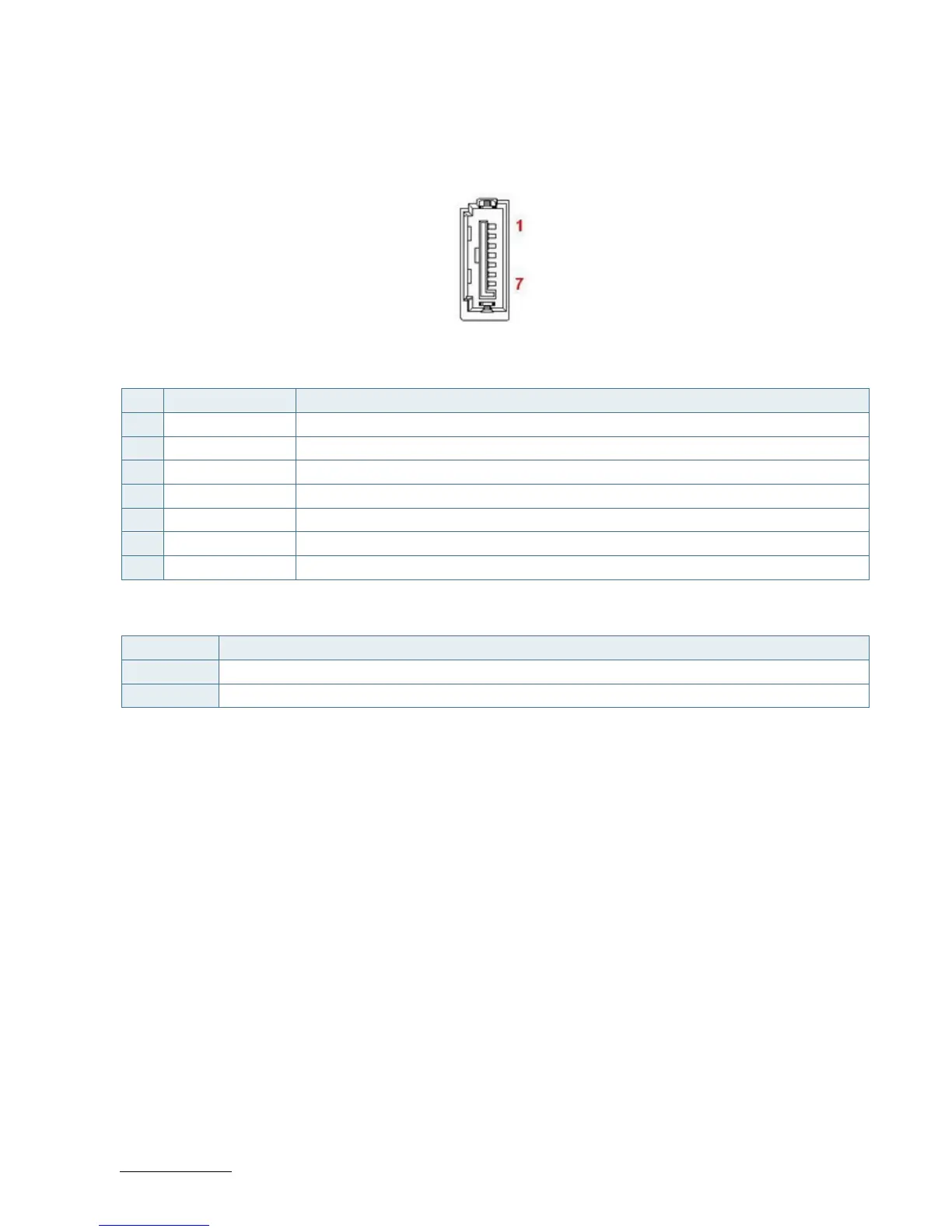

Figure 12: SATA Port 1 ~ Port 6 Connector SATA1 ~ SATA6
Table 22: Pin Assignment SATA1 ~ SATA6
Pin Signal Note
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Table 23: Signal Description
Signal Description
RX+ / RX- Host transmitter differential signal pair
TX+ / TX- Host receiver differential signal pair
