Quanmax MITX-DNV0 Series User Manual

MITX-DNV0 Series - User Guide, Rev. 1.2
www.quanmax.com
// 50
7.13. GbE LAN LED Header (CN2)

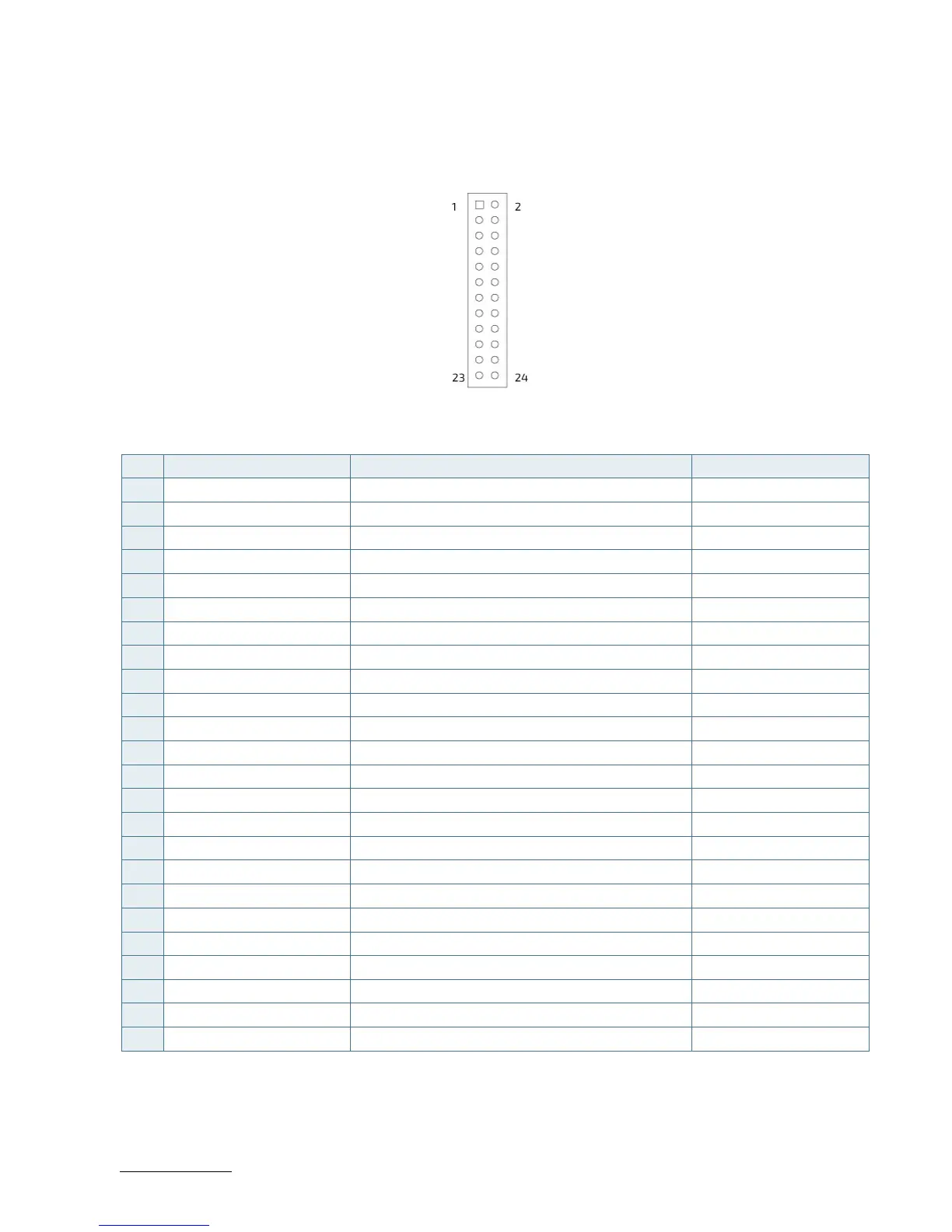

Figure 23: GbE LAN LED Header CN2
Table 39: Pin Assignment CN2
Pin Signal Description Note
1 LAN1_LINK+
2 LAN1_LINK-
3 LAN1_100#
4 LAN1_1000#
5 LAN2_LINK+
6 LAN2_LINK-
7 LAN2_100#
8 LAN2_1000#
9 LAN3_LINK+
10 LAN3_LINK-
11 LAN3_100#
12 LAN3_1000#
13 LAN4_LINK+
14 LAN4_LINK-
15 LAN4_100#
16 LAN4_1000#
17 LAN5_LINK+
18 LAN5_LINK-
19 LAN5_100#
20 LAN5_1000#
21 LAN6_LINK+
22 LAN6_LINK-
23 LAN6_100#
24 LAN6_1000#
