MITX-DNV0 Series - User Guide, Rev. 1.2
www.quanmax.com
// 51

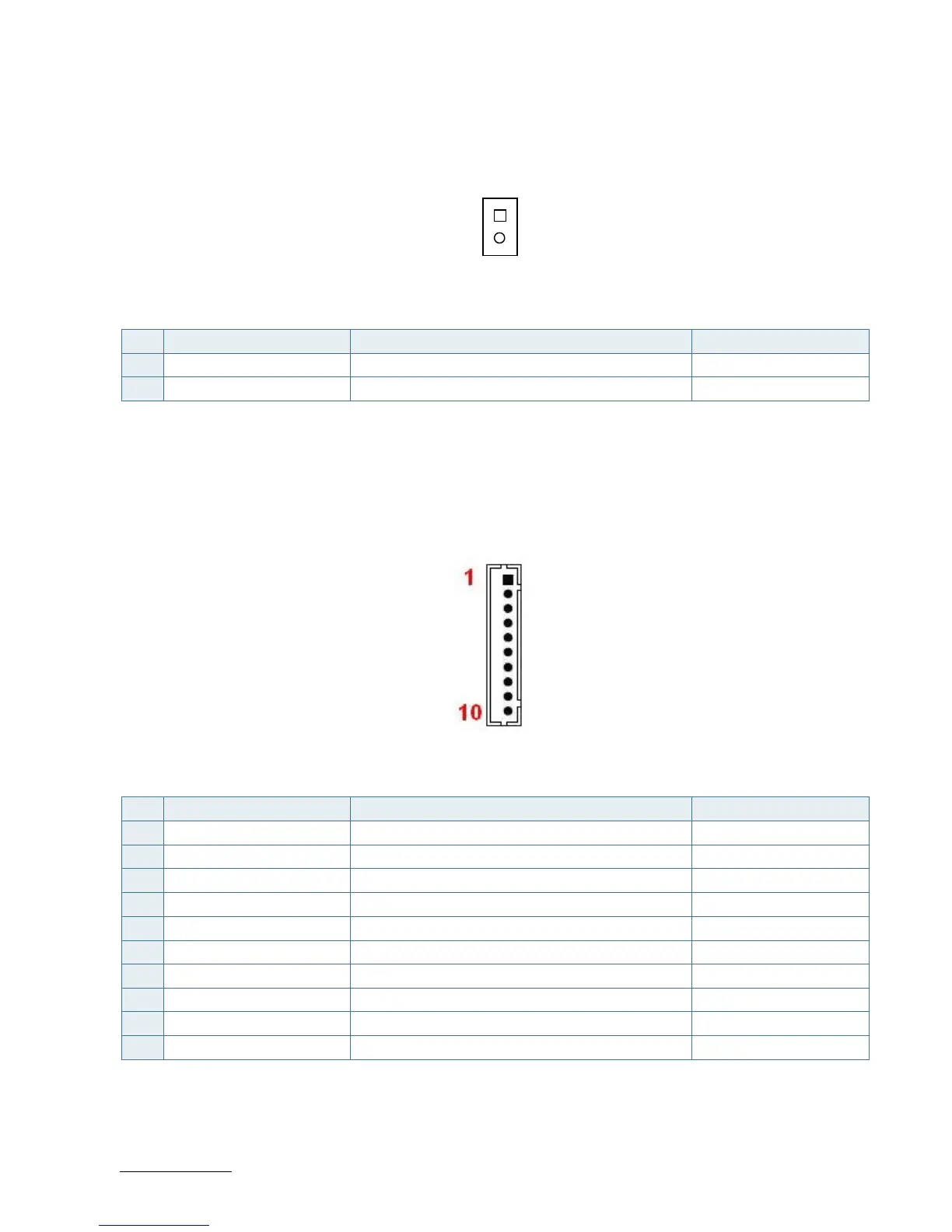

7.14. Wireless Activity LED Header for MPCIE1 (CN5)
Figure 24: Wireless Activity LED Header CN5
Table 40: Pin Assignment CN5
Pin Signal Description Note
1 LED+
2 LED-
7.15. General Purpose LED Wafer (CN25)
Figure 25: General Purpose LED Wafer CN25
Table 41: Pin Assignment CN25
Pin Signal Description Note
1 +5VSB_VCC
2 GPLED#_1
3 GPLED#_2
4 GPLED#_3
5 GPLED#_4
6 GPLED#_5
7 GPLED#_6
8 GPLED#_7
9 GPLED#_8
10 GND
For programming choose one of the following two examples.
