7/ Internal Connectors
7.1. Power Input Wafer (ATX1)
The MITX-DNV0 Series boards are designed to be supplied from a standard ATX power supply.
Hot plugging any of the power connector is not allowed.
Hot plugging might damage the board. In other words, turn off main supply etc. to make
sure all the power lines are turned off when connecting to the motherboard.

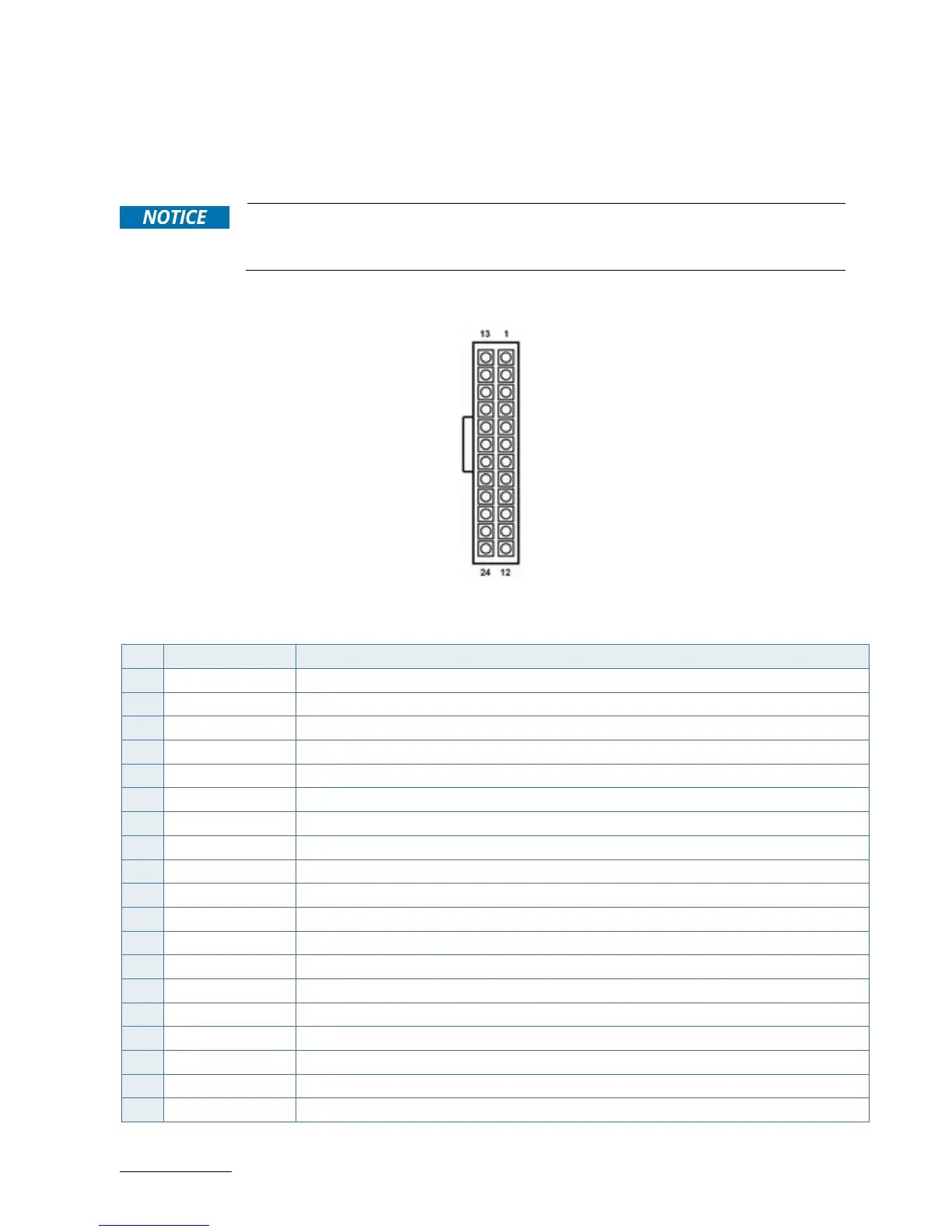

Figure 10: Power Input Wafer ATX1
Table 17: Pin Assignment ATX1
Pin Signal Description
1 +3.3V
2 +3.3V
3 GND Ground
4 +5V
5 GND Ground
6 +5V
7 GND Ground
8 POWER OK
9 +5VSB
10 +12V
11 +12V
12 +3.3V
13 +3.3V
14 -12V
15 GND Ground
16 PS_ON
17 GND
18 GND Ground
19 GND Ground
