MITX-DNV0 Series - User Guide, Rev. 1.2

www.quanmax.com

// 40

7.7. Digital Input / Output Wafer (CN15)

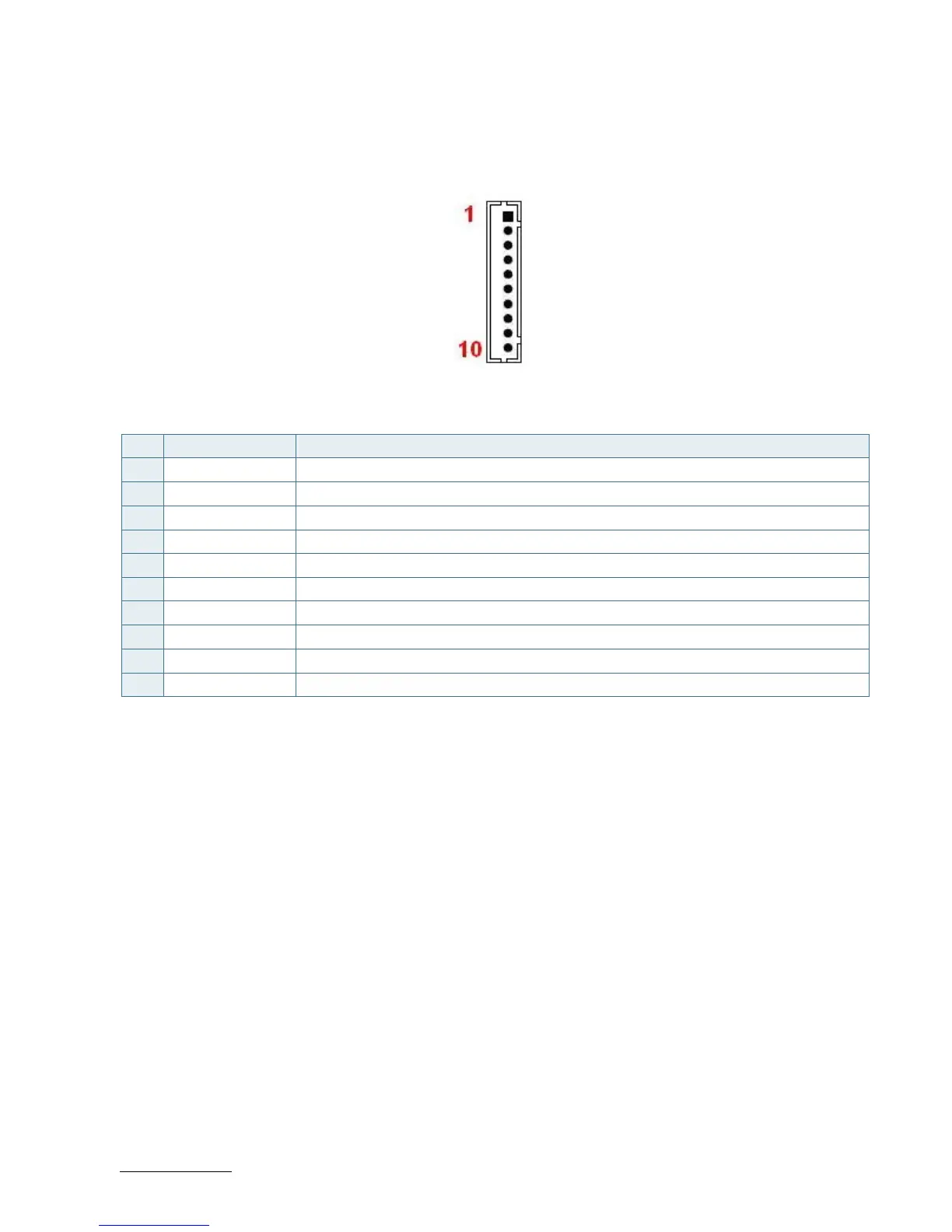

Figure 17: Digital Input / Output Wafer CN15

Table 32: Pin Assignment CN15

Pin Signal Note

1 +5V

2 DIO_0

3 DIO_1

4 DIO_2

5 DIO_3

6 DIO_4

7 DIO_5

8 DIO_6

9 DIO_7

10 GND
