Instructions for Use RAUMEDIC

MPR2 logO
Manufacturer: zwo-400EN
RAUMEDIC AG, Hermann-Staudinger-Strasse 2, 95233 Helmbrechts, Germany Rev. 9 2020-09-22
Page 10 of 99

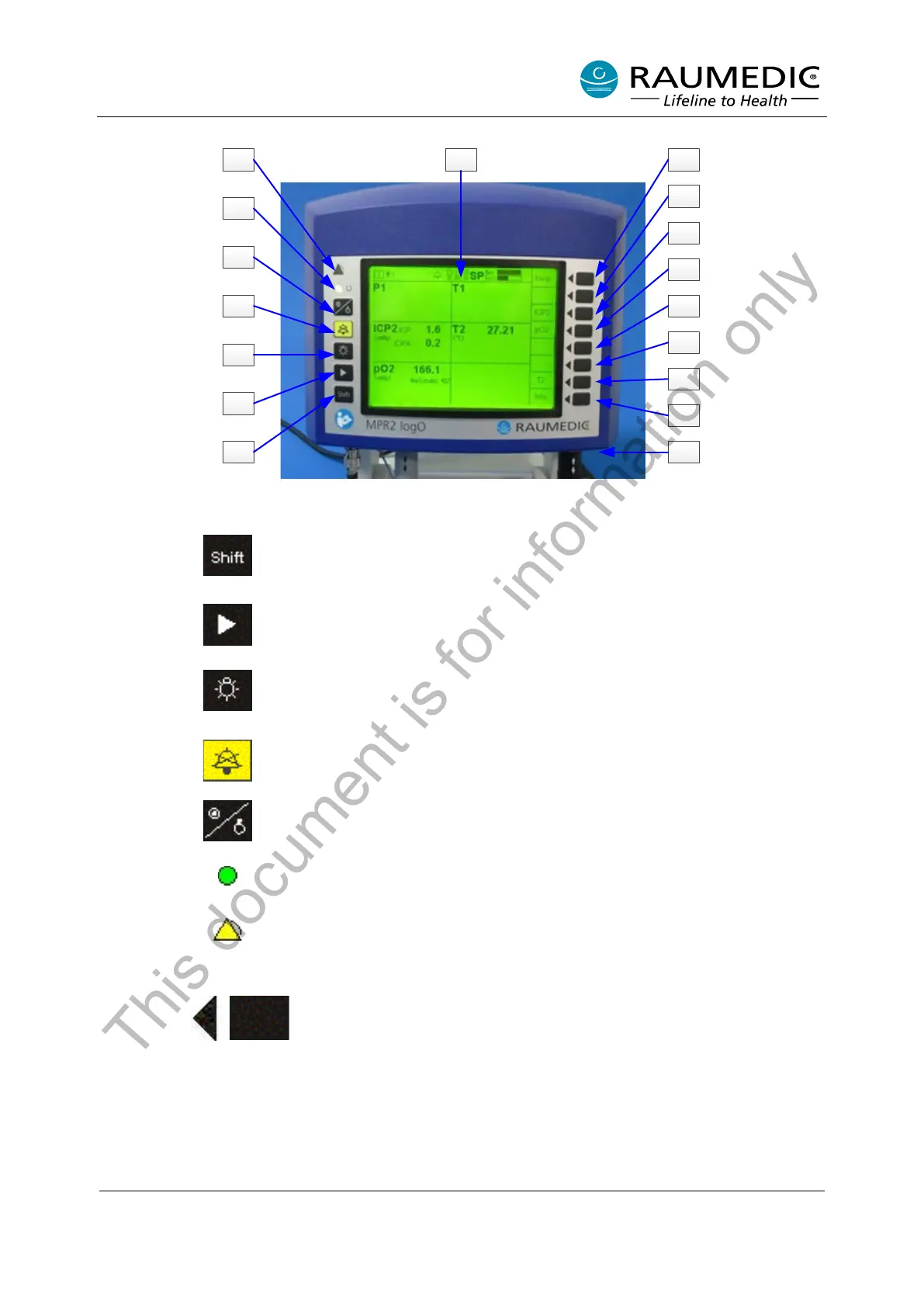

Figure 1: Operating elements, connections, displays
[1]
The Shift key switches this operation control key to the second level. The Shift
key is a toggle key (thus it switches on and off alternately); however, the Shift
status is automatically left without depression of the key after 15 seconds.
[2]
The right arrow key sets the display to the next image. When the last image
is made, the first image is displayed again.
[3]
The light bulb symbol switches the background lighting on/off in battery-
operated mode (toggle fu
nction). After 60 seconds the lighting is switched off
automatically. During mains operation this key has no function.
[4]
The bell symbol switches the AUDIO OFF function of the active alarm
conditions (in keeping with standard IEC 60601-1-8), long depr
ession sets
global AUDIO PAUSING or global AUDIO OFF).
[5]
The Symbol on/off key is used to switch the unit on and off. To switch the unit
off, keep the key pressed for 2 seconds.
[6]
Power On LED (green) combined with the optical display for alarms
with
higher priority (red LED).
[7]
Display for alarms with high priority (flashing red LED) or average priority
(flashing yellow LED).
[8] Display
[9] to
[16]
Soft keys, also referred to as F keys.
[17] Connection field
Table 1: Keys and functions
7 8 9
10
11
12
17
13
14
15
16
6
5
4
3
2
1
