Instructions for Use RAUMEDIC
MPR2 logO
Manufacturer: zwo-400EN
RAUMEDIC AG, Hermann-Staudinger-Strasse 2, 95233 Helmbrechts, Germany Rev. 9 2020-09-22
Page 11 of 99

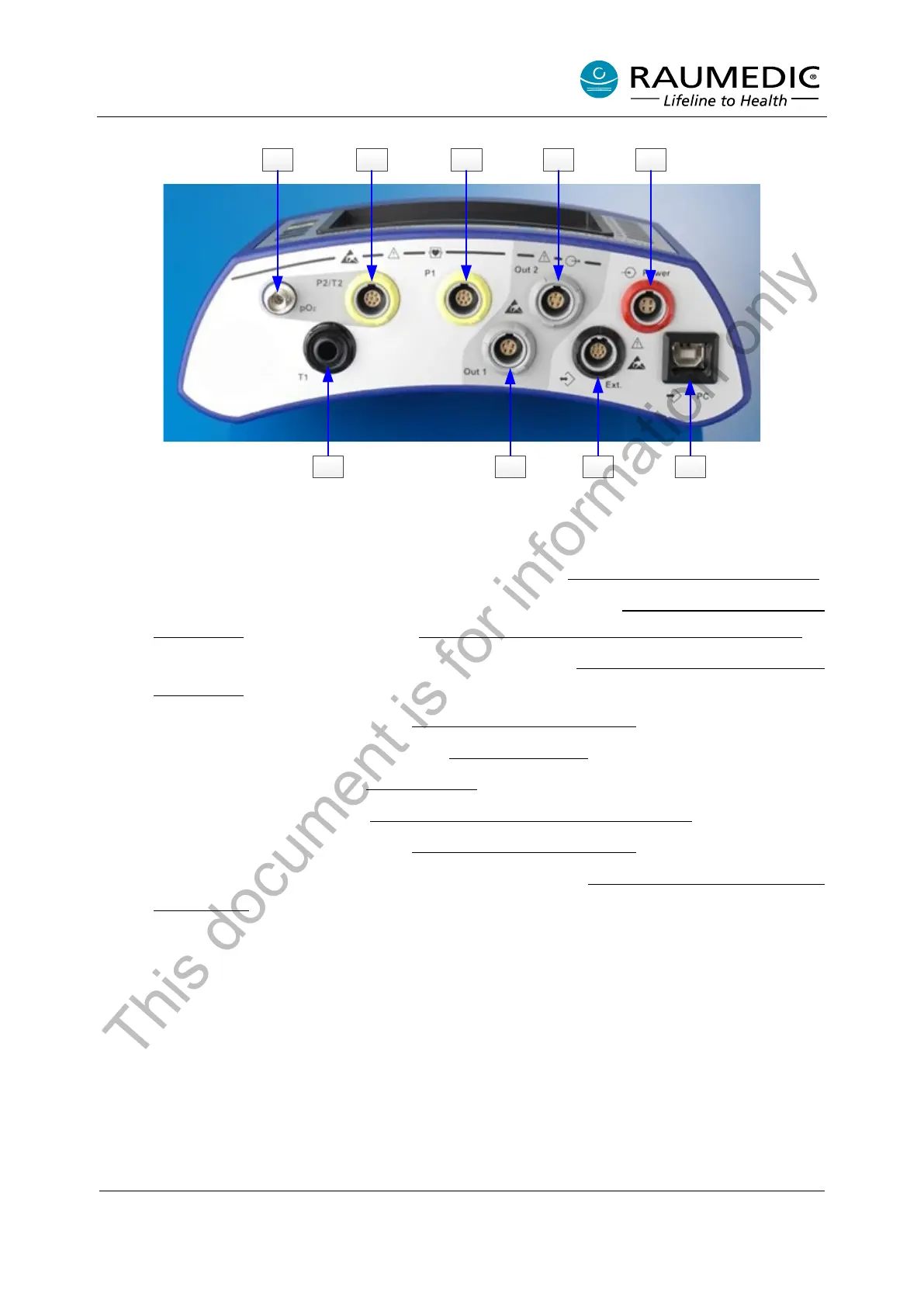

Figure 2: Connection field
[18] not equipped
[19] pO
2
: connection port for partial oxygen pressure (cf. chapter 4.4.3 Partial oxygen pressure sensor)
[20] P2/T2: multi-purpose port for invasive pressure P2 (cf. chapter 4.4.2 Transducer for invasive blood
pressure IBP) and temperature T2 (cf. chapter 4.4.4 Transducer for temperature measurement)
[21] P1: multi-purpose port for invasive pressure P1 (cf. chapter 4.4.2 Transducer for invasive blood
pressure IBP)
[22] Out-2: analogue output 2 (cf. chapter 4.6.1 Combine analogue outputs)
[23] Power: port for mains adapter (cf. chapter 4.1 General aspects )
[24] PC: USB interface (cf. chapter 3.6 PC interface)
[25] E: RS232 interface (cf. chapter 3.5 Interface for the extension of the apparatus)
[26] Out-1: analogue output 1 (cf. chapter 4.6.1 Combine analogue outputs)
[27] Temp-1: port for temperature probe, channel 1 (cf. chapter 4.4.4 Transducer for temperature
measurement)
