RAUMED NeuroSmart Instruction Manual
Manufacturer: RAUMEDIC AG, Hermann-Staudinger-Strasse 2, 95233 Helmbrechts, Germany
zwo-541EN Rev 3 / 2022-05-03
Page 20 of 61

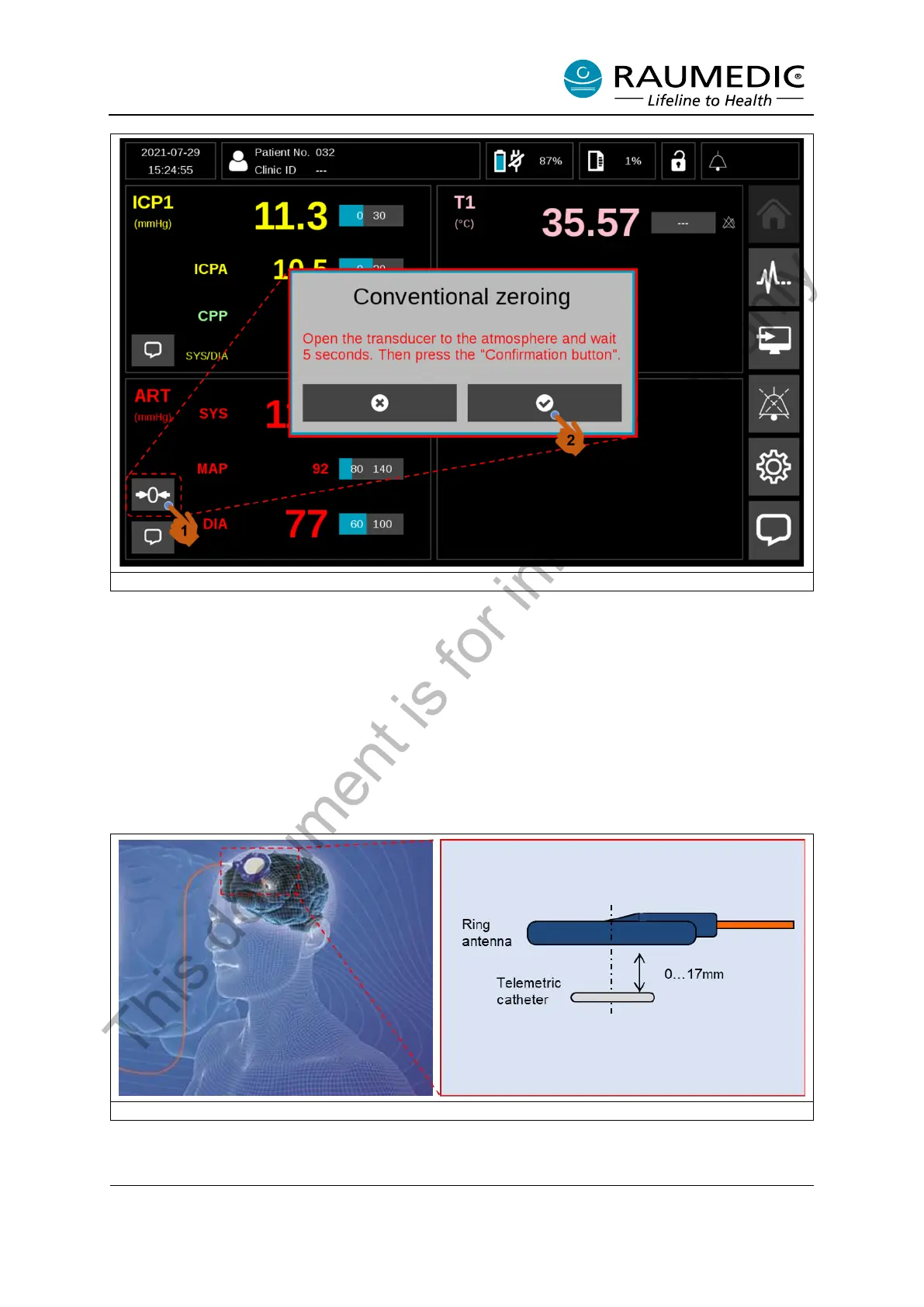

Figure 8: Performing conventional zeroing
3.4.4 Start telemetric measurement (ICPT)
For a telemetric measurement, the necessary accessories (Reader TDT1 readP and NEUROVENT-P-
tel) must be used.
• Please observe the instructions in the manuals for the accessories.
• Connect the Reader TDT1 readP to the NeuroSmart by inserting the plug with the black mark into
the black P-tel socket of the NeuroSmart. See Figure 1.
• Adjust the ring antenna on the NEUROVENT-P-tel as shown in Figure 9. The bridgeable distance
is limited to 17 mm.
Figure 9: Adjust ring antenna on telemetric catheter
The NEUROVENT-P-tel is automatically assigned the measurement location label ICPT. See Figure 10,
Field [1].
