RAUMEDIC NeuroSmart - Forwarding Pressures and Temperature

RAUMED NeuroSmart Instruction Manual
Manufacturer: RAUMEDIC AG, Hermann-Staudinger-Strasse 2, 95233 Helmbrechts, Germany
zwo-541EN Rev 3 / 2022-05-03
Page 39 of 61
3.7.2 Forwarding pressures and temperature
To forward pressures and temperature, please tap the <1> button on the menu bar. <2> The Select
buttons can be used to assign the measuring positions/channels the associated outputs. Leave the
outputs “inactivated” if no data is to be forwarded at these outputs. <3> Confirm your assignment with
the “Confirm-Continue” button.

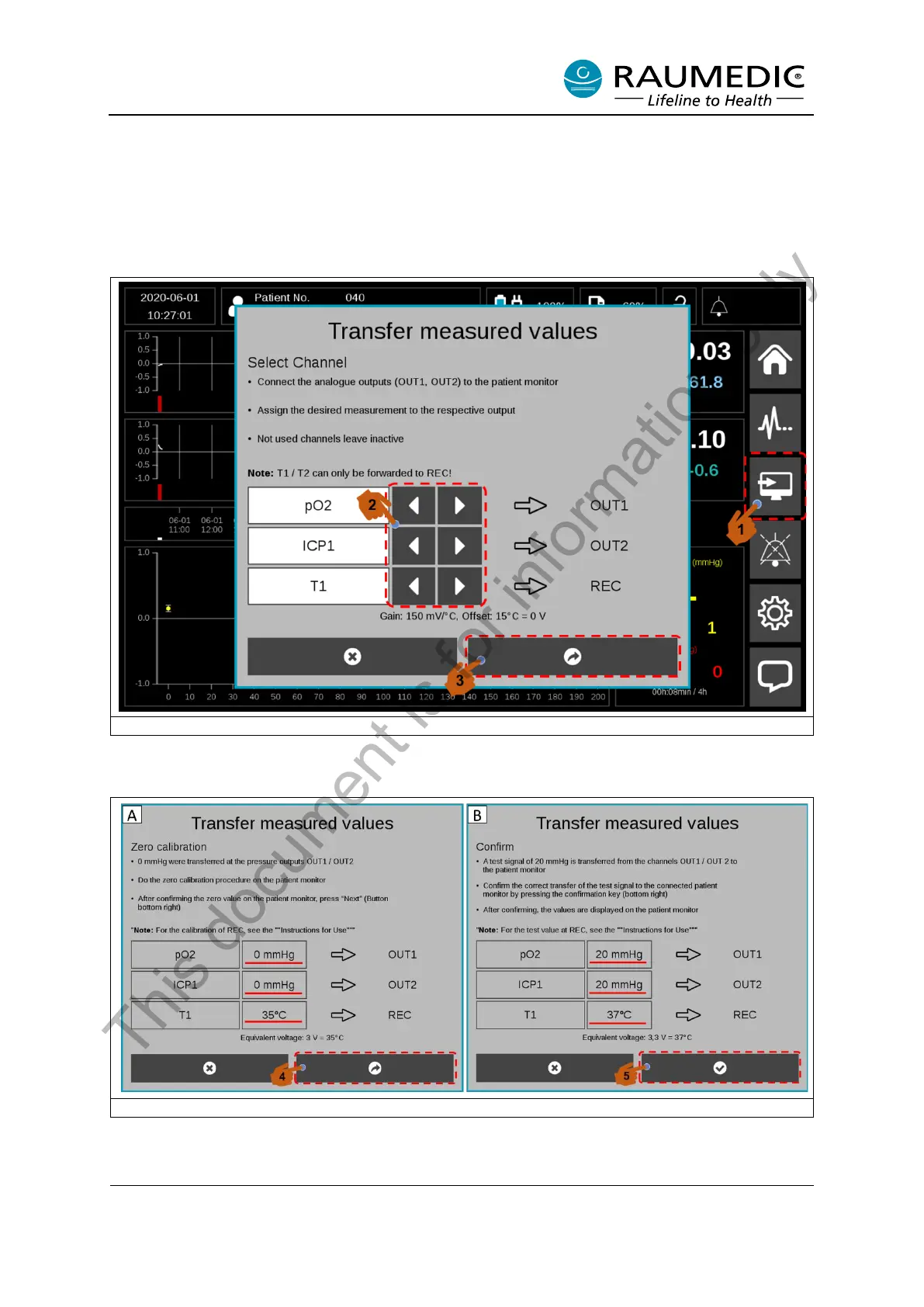

Figure 24: Forwarding 1
A pressure of 0 mmHg and/or temperature of 35°C is now output. See Figure 25 (A).
Figure 25: Forwarding 2
