CHAPTER 3
32 Viper Pro Installation & Operation Manual

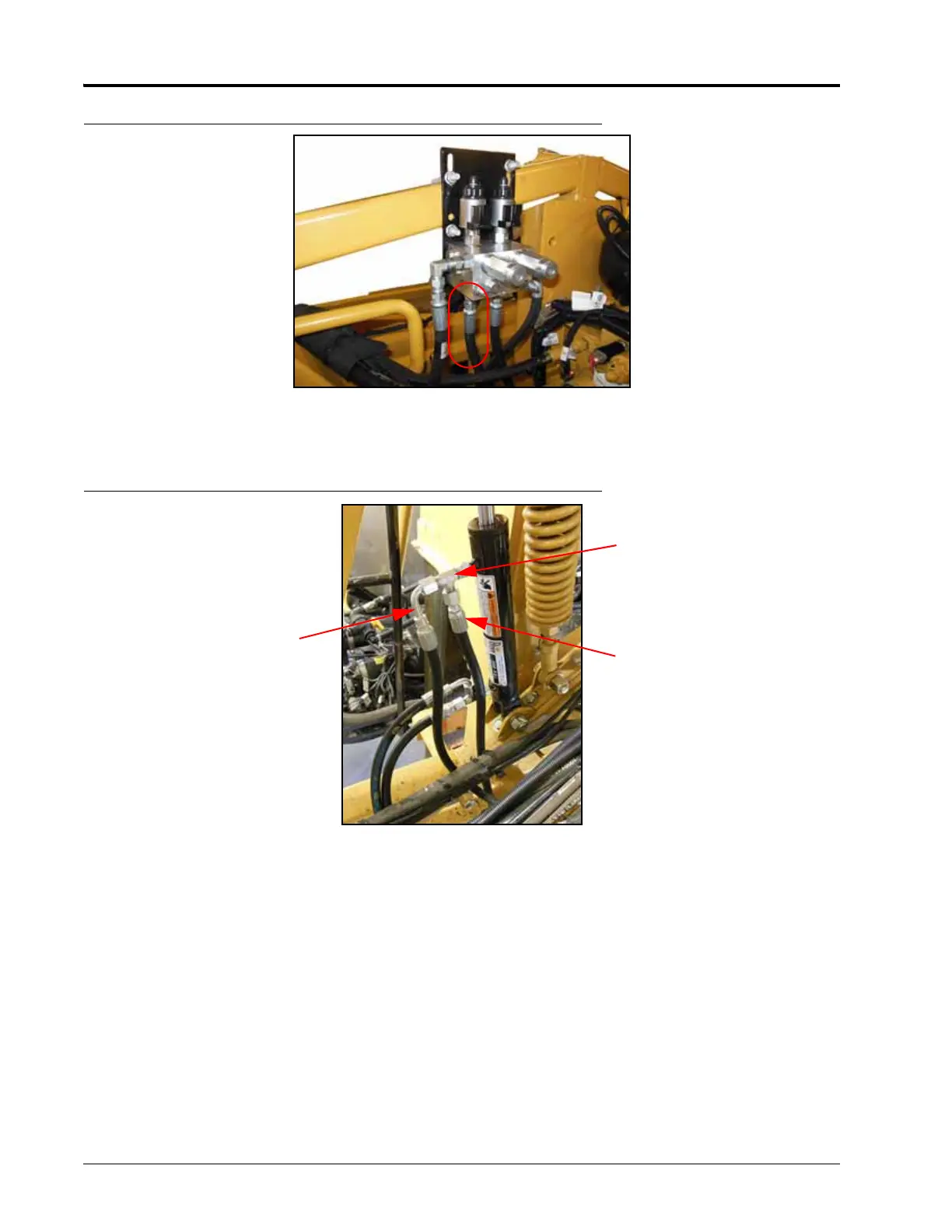

FIGURE 17. Hose Installed on UltraGlide XT Valve
2. Install one end of the supplied hydraulic (P/N 214-1001-034) hose on the fitting installed in Port 1 of the
UltraGlide XT valve (P/N 063-0131-154).
FIGURE 18. Hydraulic Hoses Installed on Left Cylinder
3. Install the other end of the installed hydraulic hose on the 90° end of the tee fitting installed in the rod-end of
the hydraulic cylinder.
4. Install the 90° end of the supplied hydraulic hose (P/N 214-1001-035) on the remaining end of the rod-end tee
fitting.
-6 JIC M/M/F Swivel Run Tee
Adapter Fitting
(P/N 333-0012-043)
Hydraulic Hose
(P/N 214-1001-034)
Hydraulic Hose
(P/N 214-1001-035)
Connected to Port P1 of
UltraGlide XT Valve
To Next Page
