TROUBLESHOOTING FLOW METER CABLES
Disconnect the extension cable from the flow meter. Hold the extension cable so that the keyway is facing toward
the 12 o’clock position.

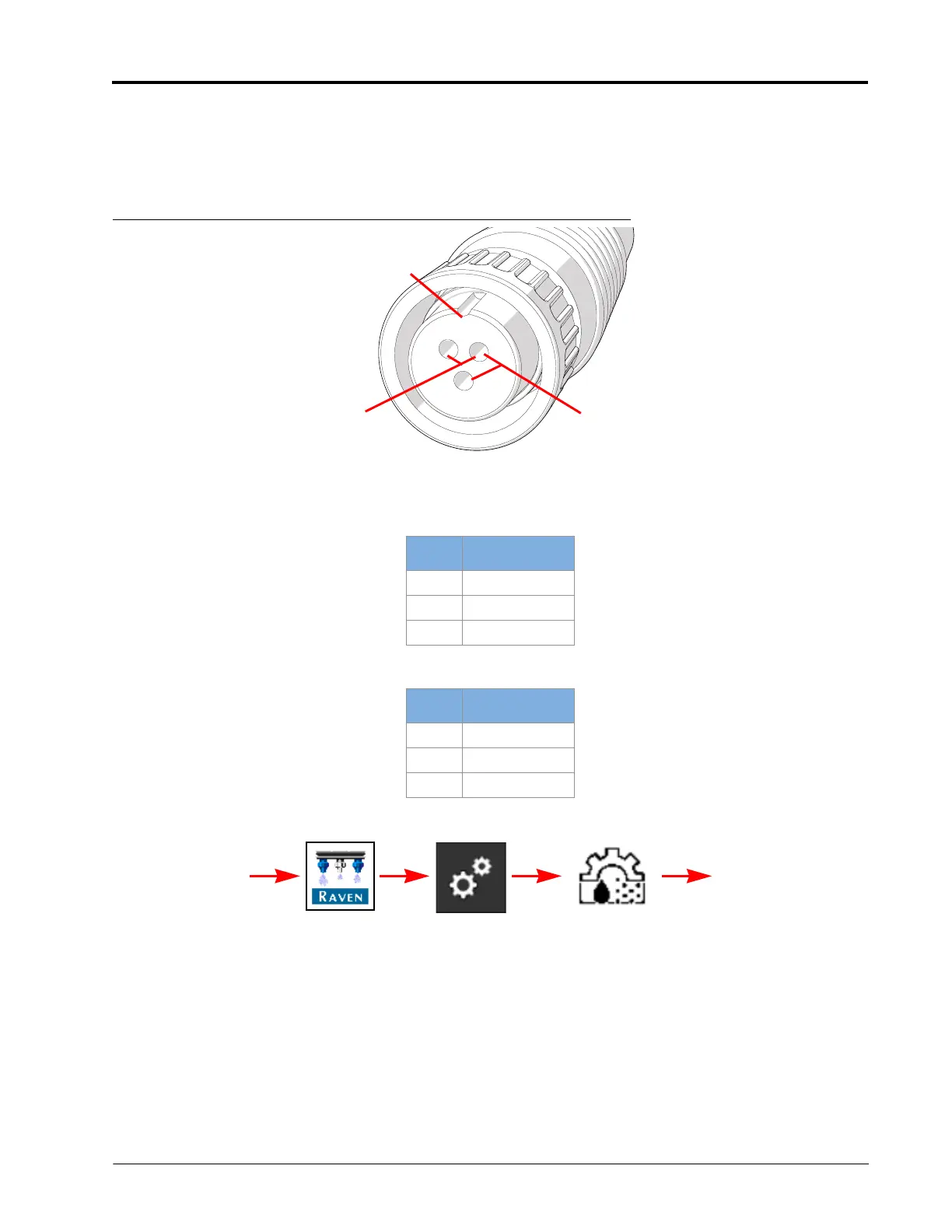

FIGURE 8. Flow Meter Extension Cable Pin Diagram (Con-X-All)
TABLE 7.
Flow Meter with Deutsch DT Connector
TABLE 8. Flow Meter with Deutsch DTM Connector
TEST THE FLOW METER CABLE
To test the flow meter cable:
1. Open the UT Menu and select the RCM - Sprayer Menu button.
2. From the home screen, change the product Rate Control Mode to Manual.
NOTE: Ensure the control valve output is zero.
3. Access the Tools Menu and select the Rate Setup and set the Flow Meter Calibration value to 1.
4. Change the Flow Meter Pulse/Units to 1 (not 10 pulses per unit).
Pin Function
APower
BGround
CSignal
Pin Function
1Signal
2Ground
3Power
Keyway
5 VDC5 VDC
2 o’clock
Ground
10 o’clock
Power
6 o’clock
Signal
RCM - Sprayer Menu Tools Menu
UT Menu
Rate Sensor
Setup
Rate Setup
To Next Page
