PERFORMANCE DATA DISPLAY

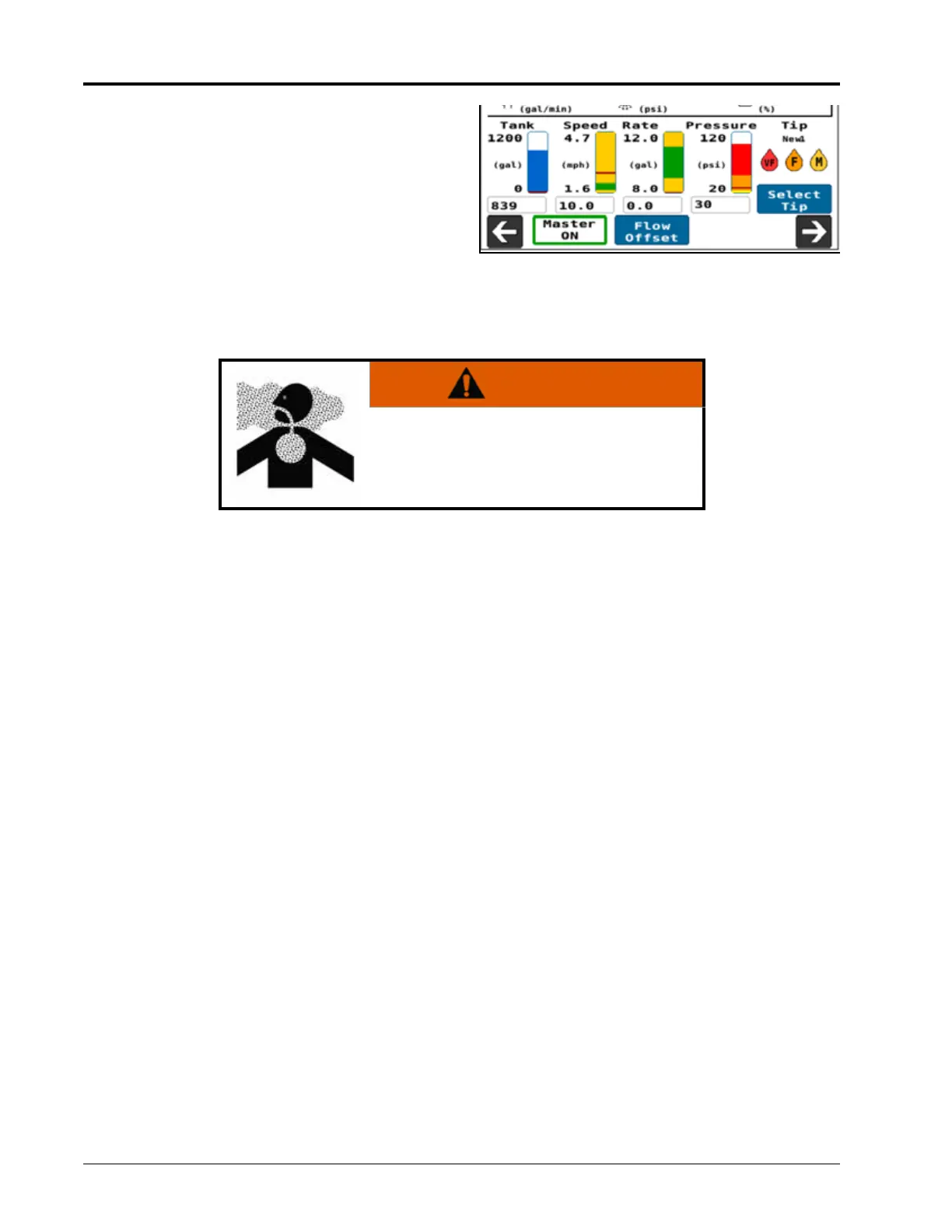

Toggle to the performance data display to monitor
various system performance statistics and recommended
operation ranges in one view.
This view displays the user defined tank volume and
volume remaining in the tank, the recommended speed
range and current speed, current application rate and off
rate limits, current pressure and allowable pressure range, as well as the droplet size settings and monitoring
options previously entered by the operator.
AUTOMATED BOOM PRIME
Automated Boom Prime will automatically turn on the main product pump and control valve to the set Tank Fill
control valve duty cycle and each configured spray section for the assigned Auto-Operation time, starting from
the outermost section and working inward, until each section has turned on once.
NOTE: Ensure the main product tank has sufficient product to fully fill the spray boom and have some visibly
remaining in the tank to prevent from getting air in the pump and system plumbing. Ensure all
machine valves are in the spray position. Move the machine to an area safe for the application system
to spray and be fully unfolded.
1. Select Begin to enter the Boom Prime Menu.
2. Enter in the Section Auto Operation Time for each section. Sections will operate automatically in pairs from
outermost to innermost sections. Auto-Operation times do not need to be equivalent for pairs, and can be
adjusted up to a maximum of 180 seconds.
WARNING
Chemical will be discharged during the boom
prime procedure. Be sure the boom is fully
unfolded and in a location safe for chemicals to
be dispensed.
