CHAPTER 6
50 RCM - Sprayer and AIM Command FLEX™ II Calibration and Operation Manual
UNIVERSAL TERMINAL DEFINITIONS
To access the RCM - Sprayer home screen, select the RCM - Sprayer Menu button on the UT Menu.

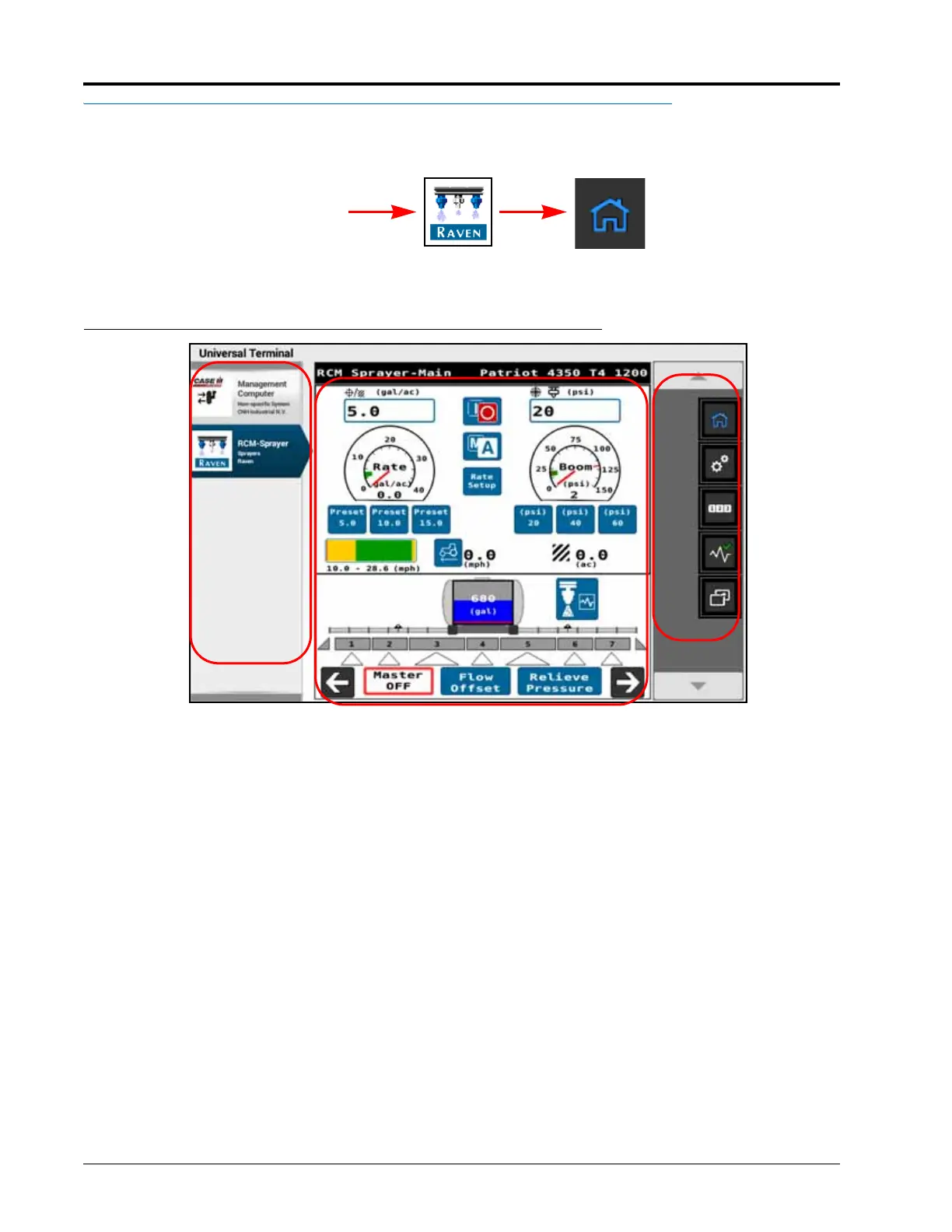

FIGURE 1. Home Page
UT WORKING SET MENU
The UT Working Set menu displays systems and components detected on the ISOBUS. Use the Working Set menu
to access these systems, including the RCM - Sprayer working set, and allows the operator to operate the system
and monitor performance of system operation.
NOTE: The UT working set menu may be shown differently on various Universal Terminal displays. Refer to
the specific display instructions for additional assistance with using the display or finding and using
ISOBUS systems, components, and features.
RCM - Sprayer Menu Home Page
UT Menu
Working Set
Menu
Quick Access
Softkeys
RCM - Sprayer Home Page
