RATES SETUP TAB

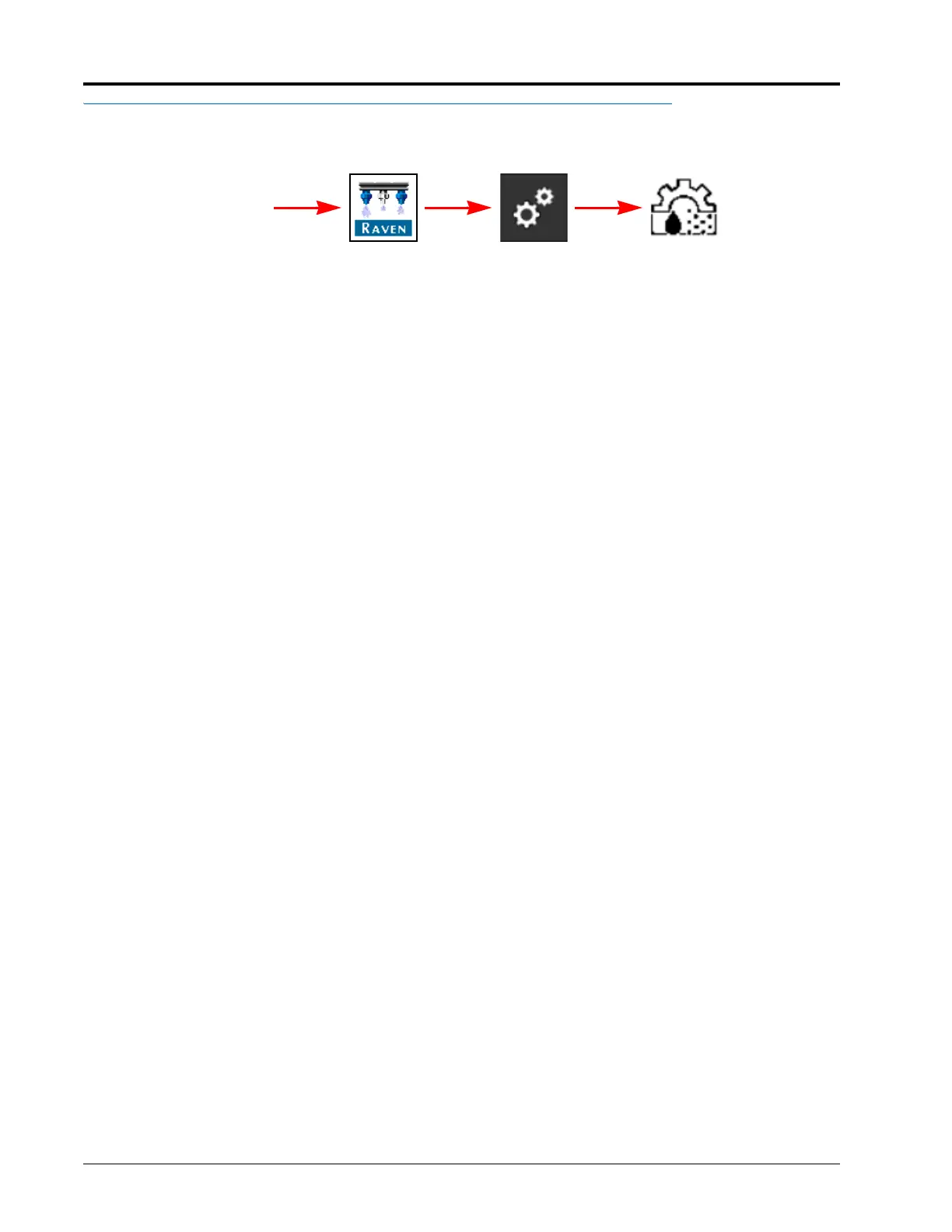

To access the Rates Setup tab:
1. Open the UT Menu and select the RCM - Sprayer Menu button.
2. Select the Tools Menu softkey along the right side of the display.
3. Select the Rates Setup tab along the top of the display.
4. The following options and features are available on the Rates Setup page:
PRESET RATE VALUES
Enter non-zero rate presets to allow the equipment operator to quickly switch between user defined rates during
field operations. While operating in the automatic product control mode, the rate preset buttons are displayed
within the product rate tab view on the Home page.
NOTE: In manual control mode, the rate preset buttons will be replaced with the control valve ± buttons.
PRESET PRESSURES
NOTE: Pressure presets are disabled or not available in some nozzle control modes or on any direct injection
product rates.
Enter non-zero pressure presets to allow the equipment operator to quickly switch between user defined
pressures during field operations. While operating in the automatic product control mode, the pressure preset
buttons are displayed within the pressures tab view on the Home page.
NOTE: In manual control mode, the pressure preset will be replaced with the NCV PWM percent ± buttons.
RATE SELECTION
Use the drop-down option to select between the following options:
Predefined or Rx (Prescription). Use predefined application rate values or a prescription (Rx) map to input rate
changes.
UT Rate Entry. Use this setting when not using Rx or Predefined application rate maps. Input the rate directly into
the field.
DISPLAY SMOOTHING
The Display Smoothing feature allows the system to smooth the actual rate display during operation. When
enabled, the actual rate display will show the target rate as long as the actual rate is within ±10% of the target rate.
The actual rate will be displayed if the rate controller does not reach the control deadband within 10 seconds.
RCM - Sprayer Menu Tools Menu Rate Setup
UT Menu
To Next Page
