System Setup: Applicator Setup Tab 25
SYSTEM SETUP
SECTION CONTROL MODE DISPLAY
To view the Section Control Mode configured during the System Calibration:
1. Open the UT Menu and select the RCM - Sprayer Menu button.
2. Select the Tools Menu softkey along the right side of the display.
3. Select the Applicator Setup tab along the top of the display. The following section control modes may be
displayed:
• Boom Valve
• Virtual Section
• Nozzle Level
NOTE: The highest available system nozzle resolution will be displayed based upon the operating mode and
features unlocked.
SELECT TIP
SETUP NEW TIP PROFILE
NOTE: Up to 10 spray tip profiles may be saved. Spray tip profiles are available in all modes of NCV
operation for a machine profile. Profiles entered in one machine profile are not available in other
machine profiles. Tip profiles must be entered for each configured machine profile.
To setup a new spray tip profile for the RCM - Sprayer system:
1. Open the UT Menu and select the RCM - Sprayer Menu button.
2. Select the Tools Menu softkey along the right side of the display.
3. Select the Applicator Setup tab along the top of the display.
4. Touch the Select Tip button. The Tip Selection page will be displayed. Use the following options and settings to
assist with monitoring the droplet size during field applications.
5. Use the following options and settings to configure the control system to assist with droplet size monitoring.
NOTE: The NCV tip size is required. A bypass tip size is optional, depending upon the nozzle configuration
installed on the machine. Refer to the NCV Control Mode (Systems with AIM Command FLEX™ II)
section on page 24 for additional details.
NCV or bypass tip size options may not be available in some NCV control modes. When set to bypass
mode, the NCV tip size is not editable.

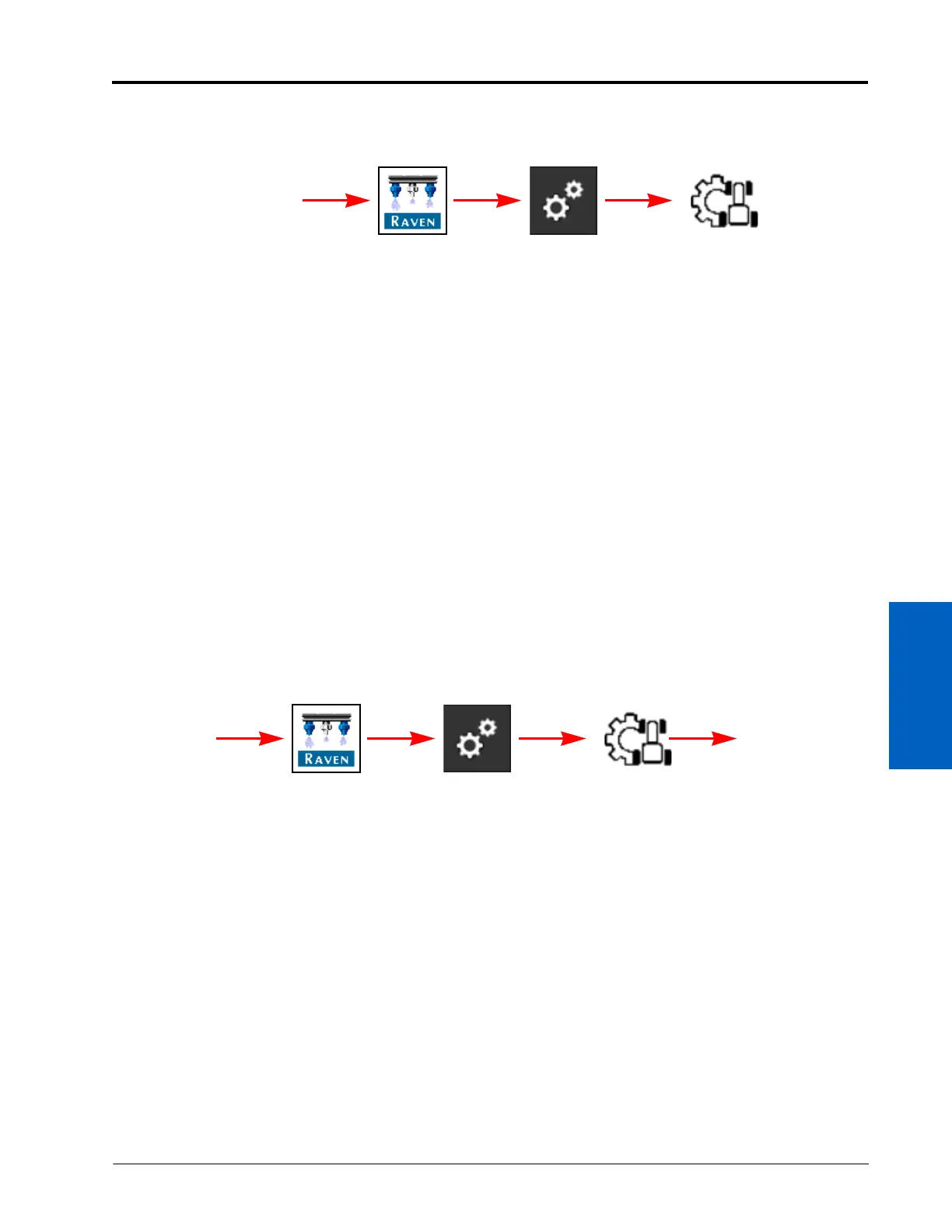

RCM - Sprayer Menu Tools Menu Applicator
Setup
UT Menu
RCM - Sprayer Menu Tools Menu Applicator
Setup
UT Menu
Select Tip
