CHAPTER 4
22 RCM - Sprayer and AIM Command FLEX™ II Calibration and Operation Manual
APPLICATOR SETUP TAB
PROFILE AND MACHINE TYPE
To review the current profile name and machine type:
1. Open the UT Menu and select the RCM - Sprayer Menu button.
2. Select the Tools Menu softkey along the right side of the display.
3. Select the Applicator Setup tab along the top of the display. The name entered for the machine profile and the
type of equipment selected during the initial system calibration will be displayed at the top of the Applicator
Setup page.
• Use the Change/New button to select a different profile or create a new profile for the machine in
operation. Up to 8 unique profiles may be saved on the RCM - Sprayer ECU.
• Use the Edit button to edit the selected profile.
NOTE: Some calibration settings are only available through the Machine Profile wizard and will require the
equipment operator to edit the Machine Profile.
Some settings entered into a specific profile (such as tip information) will not be available if a different
profile is selected.
• Use the Remove button to remove the selected profile from the system.
NOTE: A new profile must be created if a profile is deleted and there are no other profiles remaining in the
selection list.
SECTION SETUP SUMMARY
To review the current section setup:
1. Open the UT Menu and select the RCM - Sprayer Menu button.
2. Select the Tools Menu softkey along the right side of the display.
3. Select the Applicator Setup tab along the top of the display.
4. Select the Section Setup Summary button. The Section Summary page will be displayed.
Page 1 of the Section Setup Summary displays the following section information for each product control
channel configured on the system:
NOTE: Refer to the Chapter 3, System Calibration, to change the following section configuration.
Liquid Section Width. The width of each section associated with a boom valve, displayed in inches [centimeters].

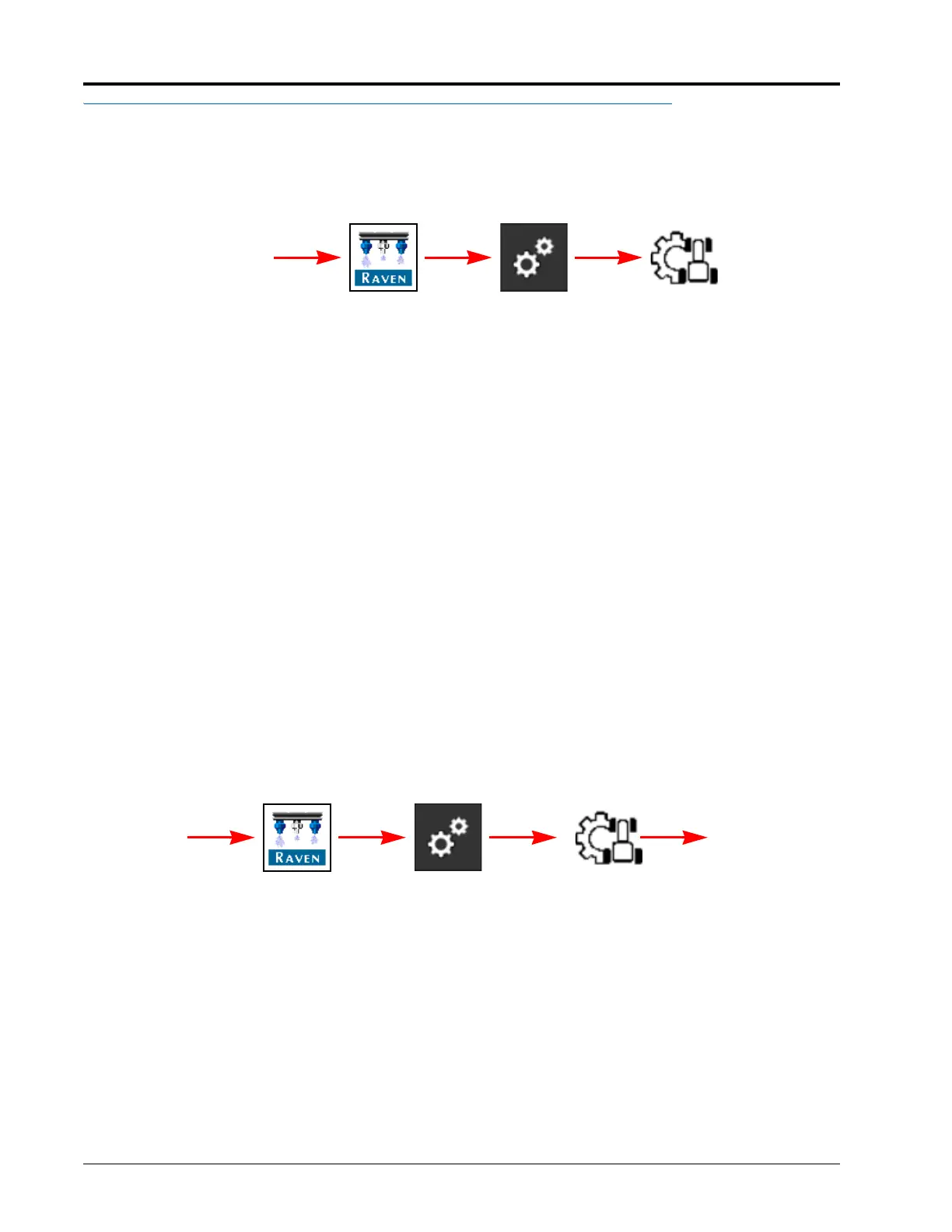

RCM - Sprayer Menu Tools Menu Applicator
Setup
UT Menu
RCM - Sprayer Menu Tools Menu Applicator
Setup
UT Menu
Section Setup
Summary
To Next Page
