CHAPTER 8
82 RCM - Sprayer and AIM Command FLEX™ II Calibration and Operation Manual
NCV DIAGNOSTICS
NOTE: NCV Diagnostics are not available in Bypass NCV operation mode.
To access AIM Command FLEX™ II nozzle control valve diagnostics information by configured section:
1. Open the UT Menu and select the RCM - Sprayer Menu button.
2. From the home screen, select the NCV Diagnostics button in the lower portion of the screen. The following
settings and information may be displayed for each configured section:
NOTE: The NCV Diagnostics button is displayed on the Home page in the lower portion of the page. It may
be necessary to toggle the lower display to either the tank level or analog gauge view.

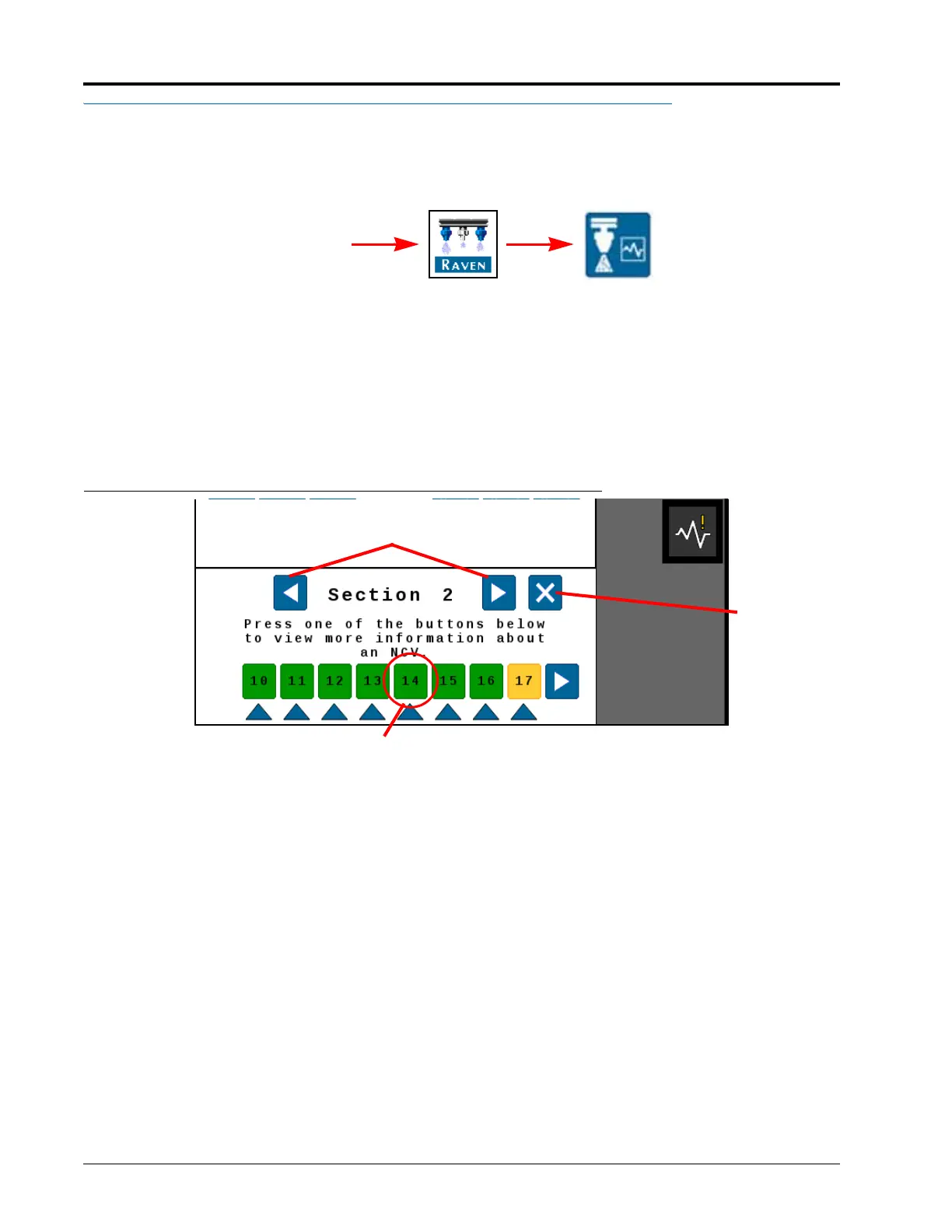

FIGURE 1. NCV Diagnostics Display
NOTE: Selecting an NCV with a green or yellow status will display the NCV Readings page while selecting an
NCV with a red status will display the NCV Errors page.
NCV SELECT
Press the NCV select arrow to cycle through each individual NCV status.
CURRENT SECTION DISPLAY
The current section for which diagnostic information is being displayed is shown at the top of the NCV diagnostics
prompt. Select the left or right section select arrow buttons to cycle through sections configured for use with the
AIM Command FLEX™ II nozzle control system.
RCM - Sprayer Menu NCV
Diagnostics
UT Menu
NCV Status
Close
Diagnostics
Section Select
