Operation: Universal Terminal Definitions 55
OPERATION
Section On/Mixed NCV Status. The section is enabled and at least 1 NCV assigned to the section is applying. The
task controller may automatically control NCVs as needed to cover field area.
Section On/NCVs Off. The section is enabled and ready for application. The task controller may automatically
turn on NCVs assigned to this section.
Flow Offset Enabled. A flow offset is active in that section.
Section Off. the section is manually disabled. NCVs assigned to this section cannot be enabled or turned on by
the task controller.
NCV FLOW OFFSET %
The Flow Offset feature allows a limited number of NCVs to provide additional flow. For example, NCVs in line with
the sprayer wheel tracks may need increased flow to ensure complete coverage. The NCV Flow Offset percentage
value sets how much the offset NCV will deviate from nominal flow.
Flow offsets may be ±50% and the machine operator may enter two preset profiles of four NCVs and both preset
profiles may be active at the same time.
NOTE: When offset profiles are active, the triangle for the affected section will display purple and the Offset
button will display green.
RELIEVE PRESSURE
NOTE: The relieve pressure button is displayed when the main product is toggled off.

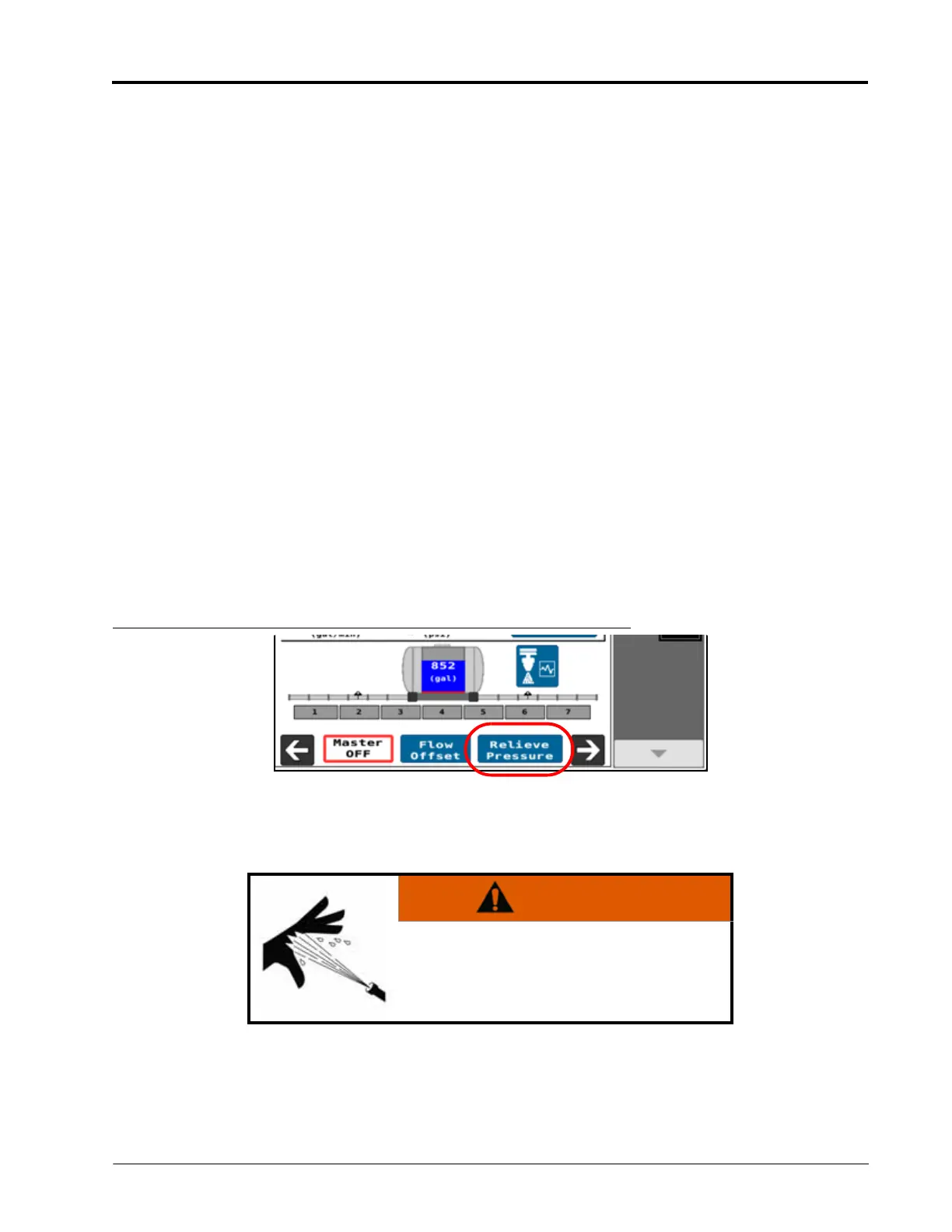

FIGURE 4. Relieve Pressure
Select the Relieve Pressure button and toggle the master spray switch on. All section valves and NCVs will open
briefly to relieve excess boom pressure is released. This feature is useful to reduce boom pressure and allow
system and boom maintenance.
WARNING
Some residual pressure may remain in the boom.
Be sure to wear proper PPE and proceed with
caution when performing maintenance on the
spray system.
