APPENDIX C
114 RCM - Sprayer and AIM Command FLEX™ II Calibration and Operation Manual

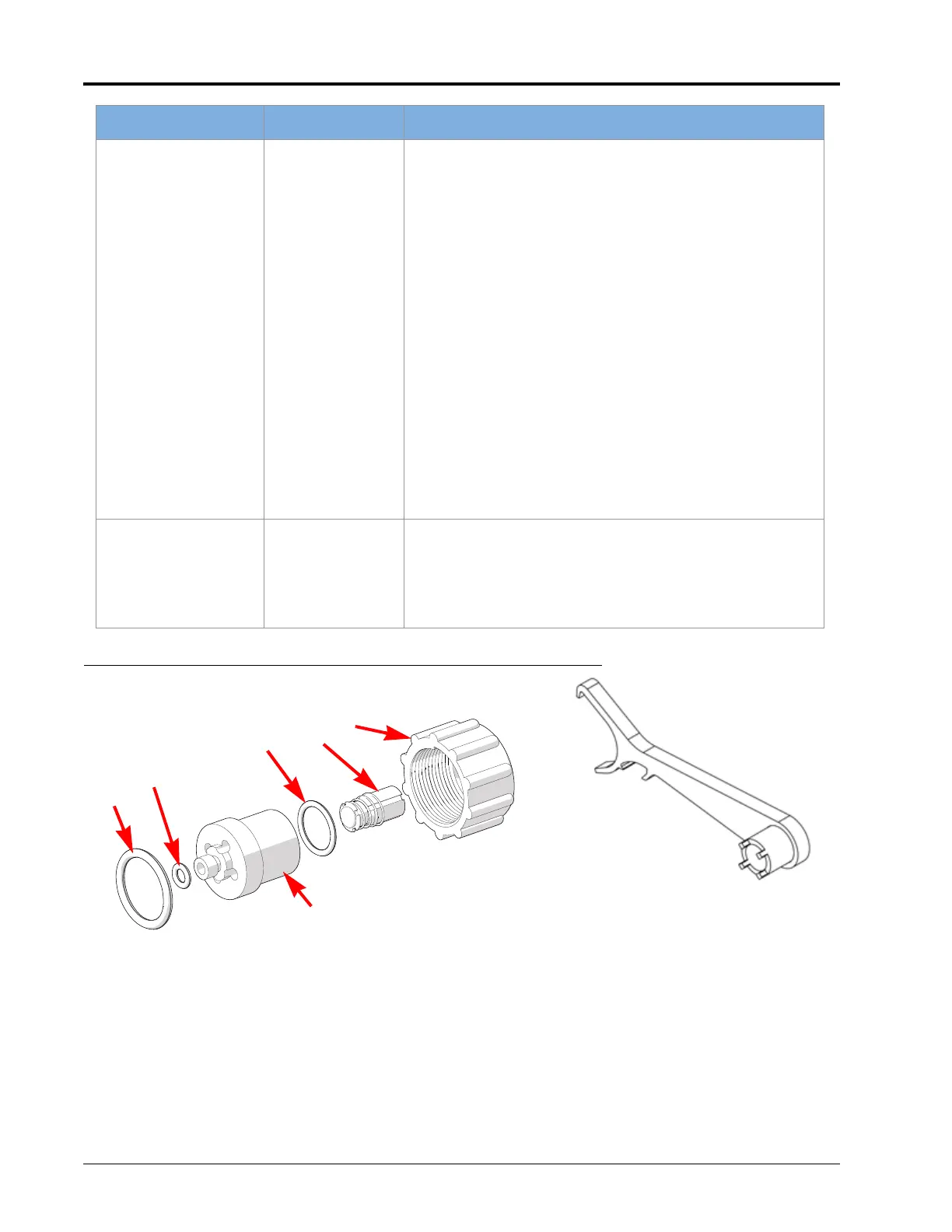

FIGURE 1. Service Parts (reference tables below for detail)
Walk-Around
Inspection of
System Cables and
Components
Weekly/as
needed
1. With the system power on, ensure all installed AIM
Command FLEX™ II NCV LEDs are flashing. If not, check
the cable connections to the NCVs and the fuses in the
fuse block located near the boom on the chassis cable
harness.
2. Verify the boom cables are securely fastened to the
boom and are not hanging below the lower boom tube.
3. Inspect each NCV for damage and proper installation on
the nozzle bodies.
4. Verify that the AIM Command FLEX™ II CANbus
terminators (located on the boom cables on each boom
tip) are present and securely tied to the boom cables.
5. Inspect system cables, sensor cables, connections, fuses,
and relays for trapped moisture, corrosion, stretching, or
other signs of potential damage. Repair or replace as
needed.
Systems that have significant debris or product buildup,
and those that are cleaned with high pressure water
often may require more diligent inspection.
NCV Seal
Replacement
After 500 hours
or as needed.
Inspect both
before and after
spray season.
1. Turn off the AIM Command FLEX™ II system and product
pump.
2. Bleed any remaining pressure from the boom system.
3. Perform the Nozzle Control Valve maintenance
procedure (page 116).
Inspection Frequency Procedure
1
2
3
4
5
6
Valve Body Removal Tool
(P/N 321-0000-490)
To Next Page
