5. Take note of the Wireless ID and passcode on the prompt displayed on the UT. This information will be
necessary to connect to the RCM - Sprayer ECU.

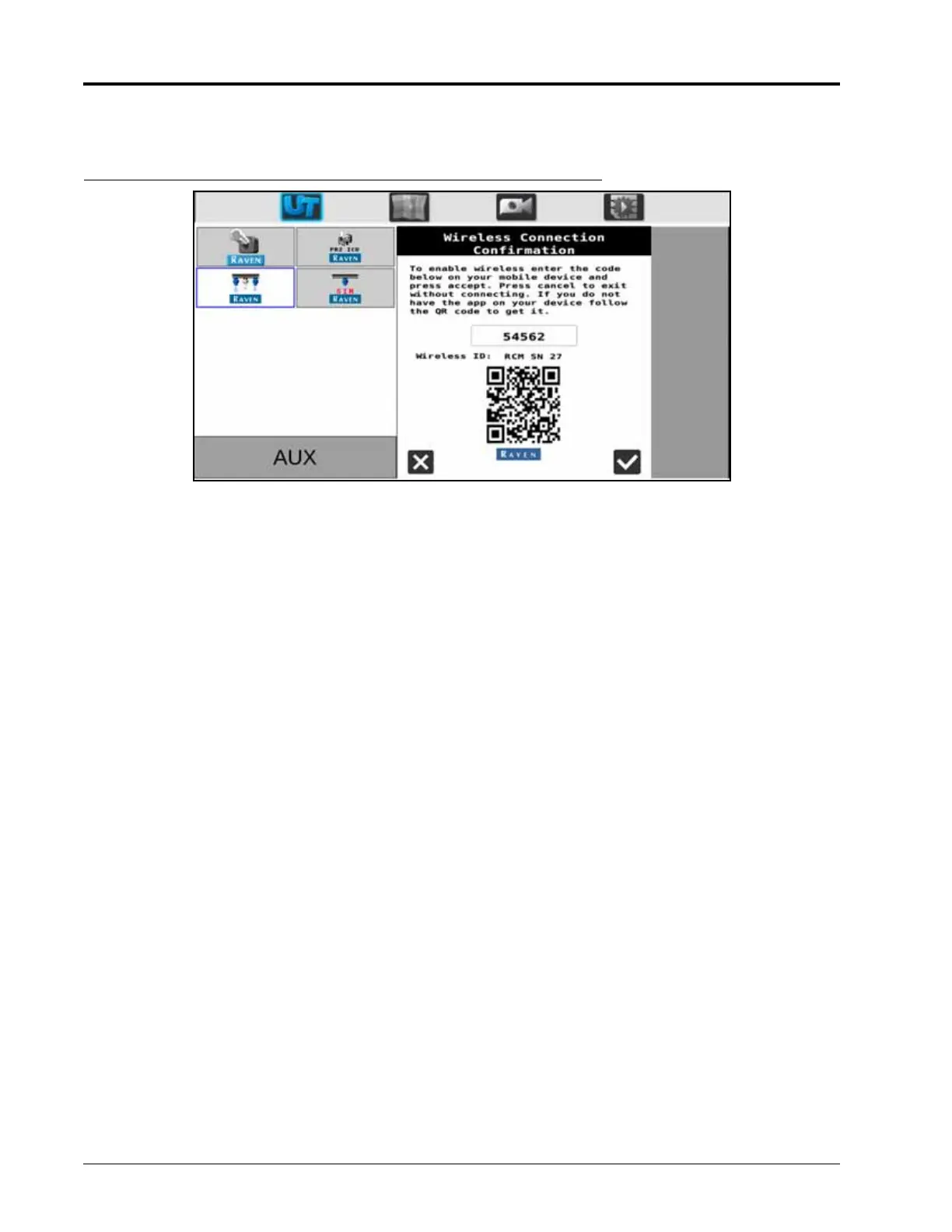

FIGURE 2. Wireless Connection Confirmation
IMPORTANT: Do not attempt to connect the remote and RCM - Sprayer devices yet.
OUTSIDE OF THE MACHINE CAB
1. Exit the cab and go to the back of the machine until you have a clear view of the RCM - Sprayer ECU mounting
location.
NOTE: The RCM - Sprayer may be mounted within an enclosure and not be directly visible on some OEM
installations.
2. Enter the passcode. The passcode should only be required the first time that the section control remote is
paired with the RCM - Sprayer ECU.
3. Once the remote is connected to the RCM - Sprayer, the operator may:
• Toggle the product pump on and off.
• Toggle boom sections and NCVs on and off as needed using the ON and OFF buttons, Left/Right Indexing
Arrows.
• Sections and NCVs will turn on as the boom is mapped for conventional or bypass section
control.To take control of boom sections, use the off and on buttons.
Select the desired RCM - Sprayer ECU Wireless ID and enter the passcode.
NOTE: The wireless ID and passcode are displayed on the UT when the Section or NCV Wireless Control
modes are selected. If the remote and RCM - Sprayer ECU have been connected previously, the
remote will automatically connect tot he RCM - Sprayer ECU when both are turned on and the
desired wireless control mode is selected.
