CHAPTER 4

38 RCM - Sprayer and AIM Command FLEX™ II Calibration and Operation Manual

GROUP END NCVS

NOTE: Not available in the Bypass NCV control mode.

Enable this option to link the three NCVs at the end of the boom to the NCV immediately beside them. When one

of the NCVs are turned on, all linked NCVs will turn on. This feature may be helpful in areas with poor GPS

coverage to prevent the end NCVs from flickering on and off.

NCV FREQUENCY

NOTE: Not available in Bypass NCV control mode.

Select the desired NCV frequency for when NCVs are actively pulsing. Higher frequencies will reduce overall speed

and flow range of the NCVs, but may result in better coverage at low operating speeds and duty cycles. The

default PWM frequency for AIM Command FLEX™ II is 20 Hz.

ENABLE TURN COMPENSATION

NOTE: Not available in the Bypass NCV control mode.

The turn compensation feature allows for even application while the machine is negotiating curves and turns in

the field. This feature automatically adjusts individual AIM Command FLEX™ II NCVs duty cycles to compensate for

the yaw rate while the operator is steering the vehicle around obstacles, curved swath paths, or turns in the field.

The lowest NCV duty cycle may match the Minimum Nozzle PWM value for the innermost operating AIM

Command FLEX™ II NCV in a turn. The highest NCV duty cycle may not be 100% due to maximum output

capabilities of the AIM Command FLEX™ II NCV with a given tip size and system efficiency.

To enable the turn compensation feature:

1. Open the UT Menu and select the RCM - Sprayer Menu button.

2. Select the Tools Menu softkey along the right side of the display.

3. Select the System Settings tab along the top of the display.

4. Select the User Settings button.

5. Touch the check box to toggle the Enable Turn Compensation.

Turn Compensation Calibration. If the RCM - Sprayer ECU mounting position is modified or adjusted, recalibrate

turn compensation to ensure the feature correctly adjusts AIM Command FLEX™ II NCV rates during applications

and ensure that the ECU orientation is configured properly.

NOTE: The ECU orientation is calibrated during the initial system calibration wizard. To recalibrate the ECU

gyro, edit the profile or perform the following procedure.

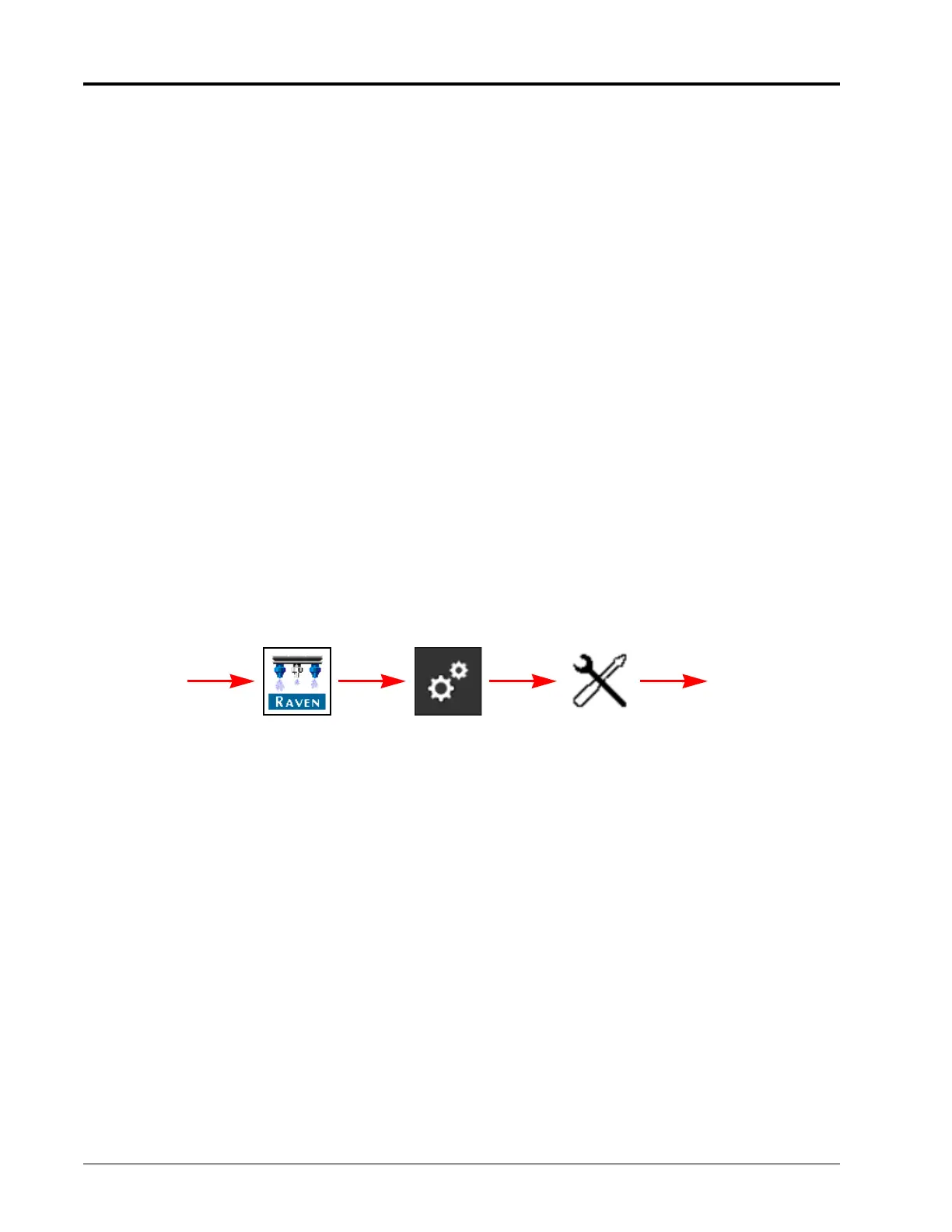

RCM - Sprayer Menu Tools Menu System

Settings

UT Menu

User Settings
