Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C20000TZ

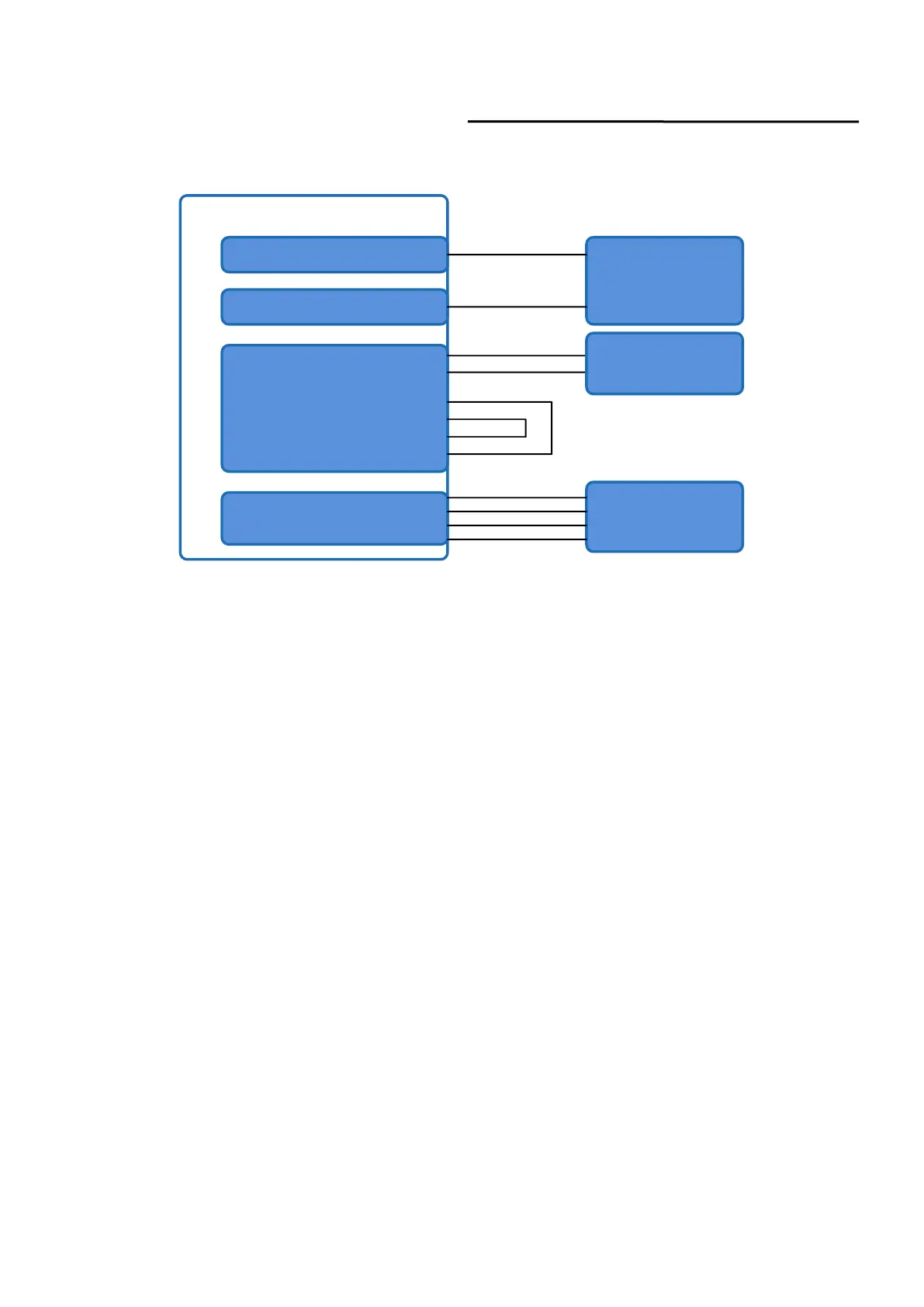

Figure 19 The wiring diagram of laser operating in external control mode
Operations Steps
a) Turn the knob switch on the rear panel to“ON”
b) Turn the key switch to“ON”
c) Open the Raycus PC software
d) Click the guide laser “ON” button to view the guide laser
e) Turn off “AD” mode and turn on “External Control” mode (this mode can be memorized after
power off)
f) Click the main power “ON”
g) Waiting for “Ready”
h) Set the percentage of laser emission power
i) Turn on the laser through the high level output by MOD signal
