Raycus XZ Series User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C20000TZ
47

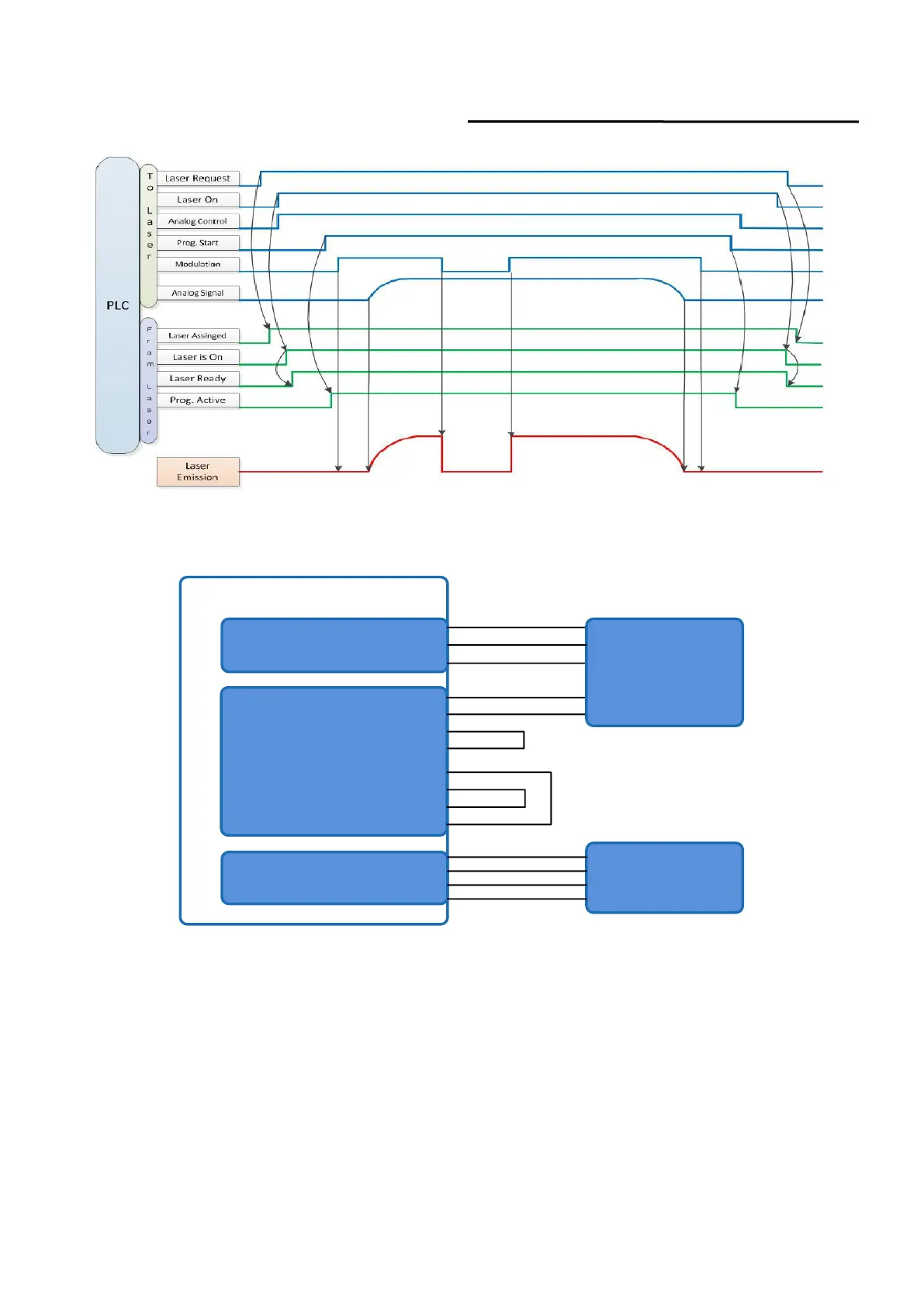

Figure 23 Timing diagram
6.6 Power Communication Setting in REM
XP1(Hardwiring)
AC INPUT
XP2
(Security Interface)
AC POWER
~380VAC
L1
L2
L3
PE
1
2
8
9
17
18
19
20
A16(COM)
Interlock1
Interlock2
A1(Laser Request)
Raycus Laser
MOD+
MOD -
Peripheral
Equipment
A2(Laser EN)
Power ON
Figure 24 Wiring diagram of power internal control and laser emission external
Operations Steps:
a) Turn the knob switch on the rear panel to“ON”
b) Turn the key switch to“REM”
c) Short-circuit pin 8/9 on XP2
d) XP1-A1 connects to 24V
