User Guide of RFL-C20000TZ
Table 13 The laser main display content and meaning
Current setting percentage of power in real time
Average laser output power in real time(kW)
Water cooling temperature in real time(℃)
Status of main power supply: green-main power supply is on, gray-main power supply is off
Indicates readiness of current laser:green-laser is ready,gray-laser is not ready
Indicates alarm status of current laser: yellow- laser is abnormal, gray-laser is normal
Indicates the working model of the current laser: red-laser is in working model; gray-laser is
not in output model
8.3.1 Laser’s Cumulative Operating Time Display Area

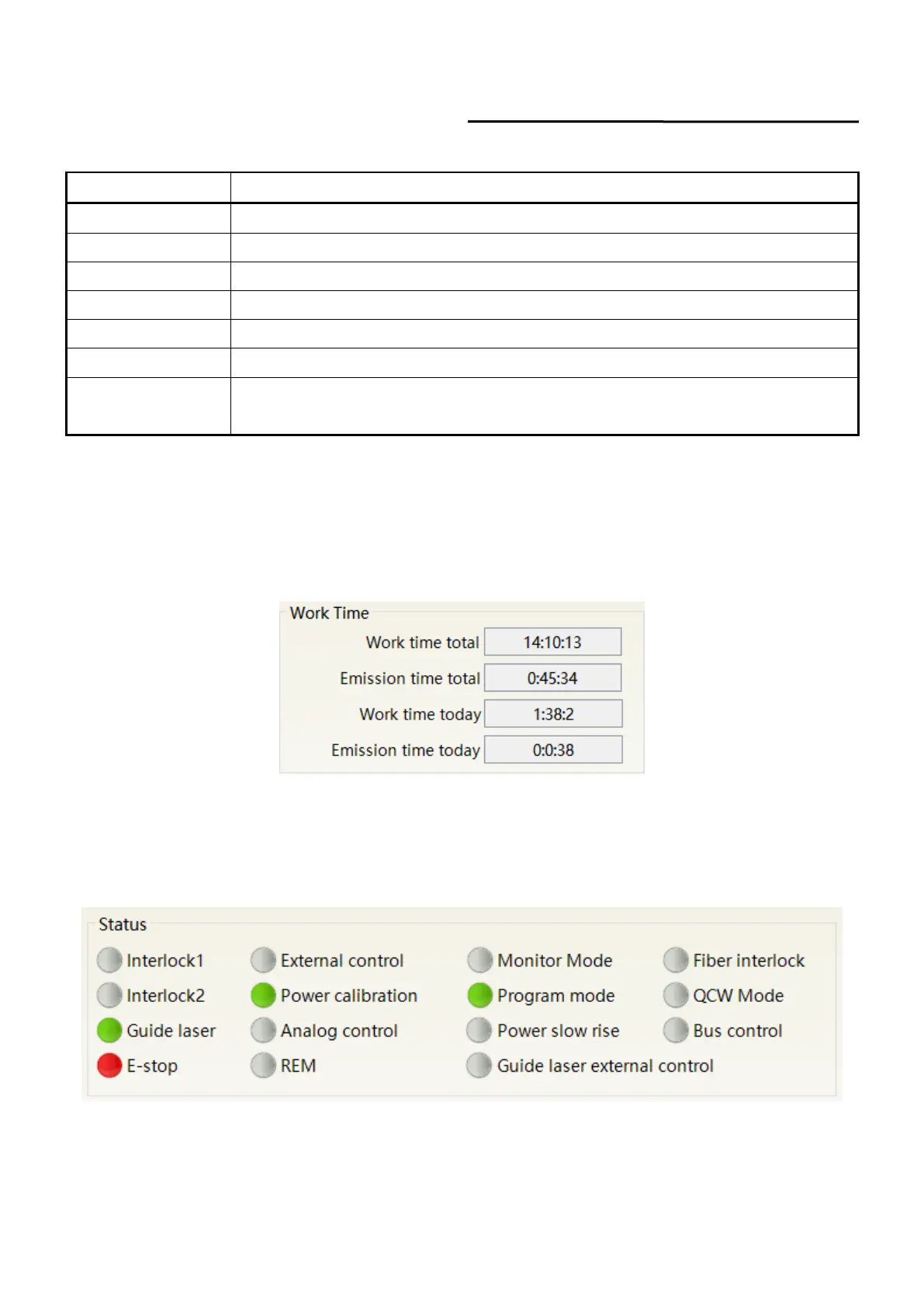

The laser’s cumulative operating time display is shown in Figure 33. The cumulative start-up time,
cumulative laser output time, today's power-on time and today's lighting time can be displayed in hours,
minutes and seconds respectively.
Figure 33 Laser cumulative operating time display interface
8.3.2 Laser Working Status Display Area
The laser working status display area is as Figure 34, and the meaning is as Table 14.
Figure 34 A diagram of the laser's working status display area
