User Guide of RFL-C20000TZ
60

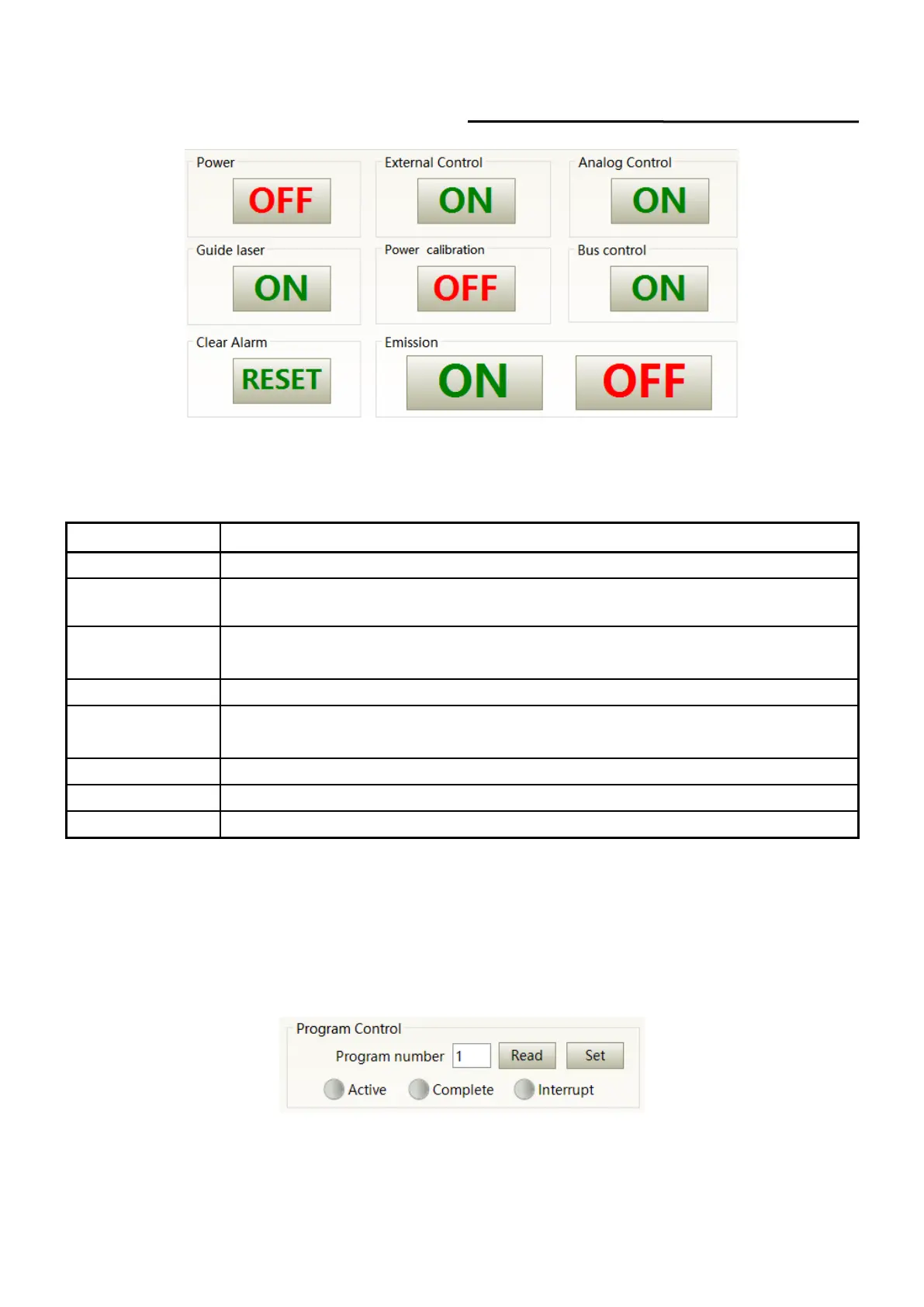

Figure 35 Laser power-on, mode selection, light out control display area
Table 15 Laser power-on, mode selection, light out control display area meaning
Display
Meaning
Main power button
Click ON, main power on; click OFF, main power off
External control
mode
Click ON, activate laser external control; Click OFF, shut laser external control.
With memory function in case of power-down.
AD mode
Click ON, AD analog mode on; click OFF, AD analog mode off.
With memory function in case of power-down.
Red guide beam
Click ON, red guide beam on; click OFF, red guide beam off.
Power correction
Click ON, activate laser power correction mode; click OFF, shut laser power correction mode.
With memory function in case of power-down.
Eliminate alarm
Eliminate current laser alarm.
Laser ON
Emit the laser.
Laser OFF
Off the laser.
8.3.4 Programming Mode Area
The laser programming mode area interface is as Figure 36, in which the ‘START’ button is used to
test the programming of the programming mode. This function can only run internal mode (when external
mode is turned off). Enter the current pre-tested programming number in the digital text box and click the
START button.
Figure 36 Laser programming mode test area display interface
