User Guide of RFL-C20000TZ
e) Connect XP1-A5 to 24V and turn on the guide laser; after checking the optics, connect XP1-A5
to 0V and turn off the guide laser
f) XP1-C1 is connected to 24V, and the main power is turned on (users can also directly press the
“LASER” button, or clicks the main power “ON” on the Raycus PC software)
g) Waiting for “Ready”
h) The Raycus PC software sets the power, XP1-A2 is connected to 24V, and the control board
card outputs MOD signal
6.7 Programming Mode in REM Mode
XP1(Hardwiring)
AC INPUT
XP2
(Security Interface)
AC POWER
~380VAC
L1
L2
L3
PE
8
9
17
18
19
20
A16(COM)
Interlock1
Interlock2
A1(Laser Request)
Raycus Laser
Peripheral
Equipment
A2(Laser EN)
A8~A14(ProgramNum)
Power ON

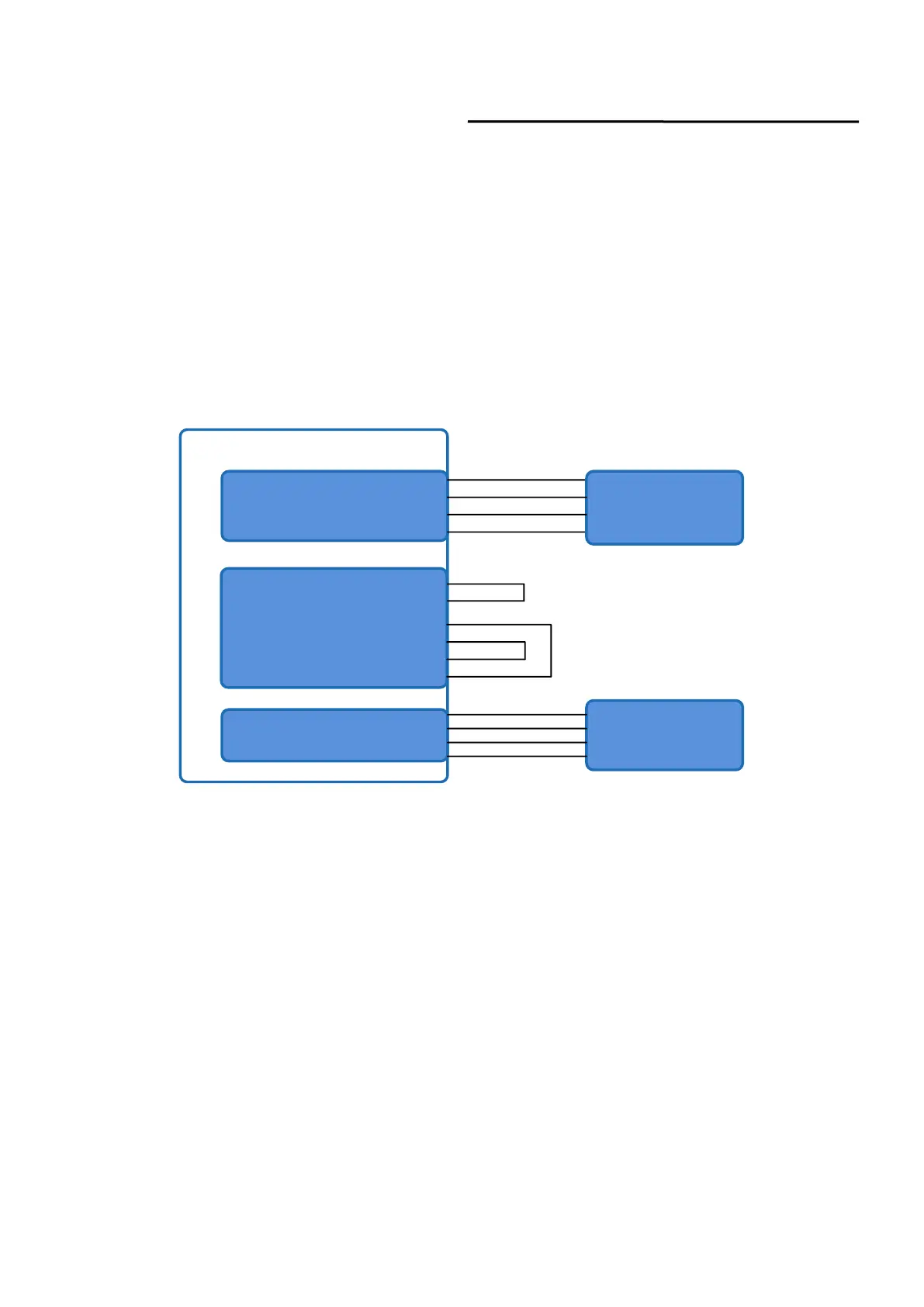

Figure 25 Wiring diagram of programming mode in REM Mode
Operations Steps:
a) Turn the knob switch on the rear panel to“ON”
b) Turn the key switch to“REM”
c) Short-circuit pin 8/9 on XP2
d) XP1-A1 connects to 24V
e) Connect XP1-A5 to 24V and turn on the guide laser; after checking the optics, connect XP1-A5
to 0V and turn off the guide laser
f) XP1-C1 is connected to 24V, and the main power is turned on (users can also directly press the
“LASER” button, or clicks the main power “ON” on the Raycus PC software)
g) Waiting for “Ready”
