Raycus XZ Series User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C20000TZ
70

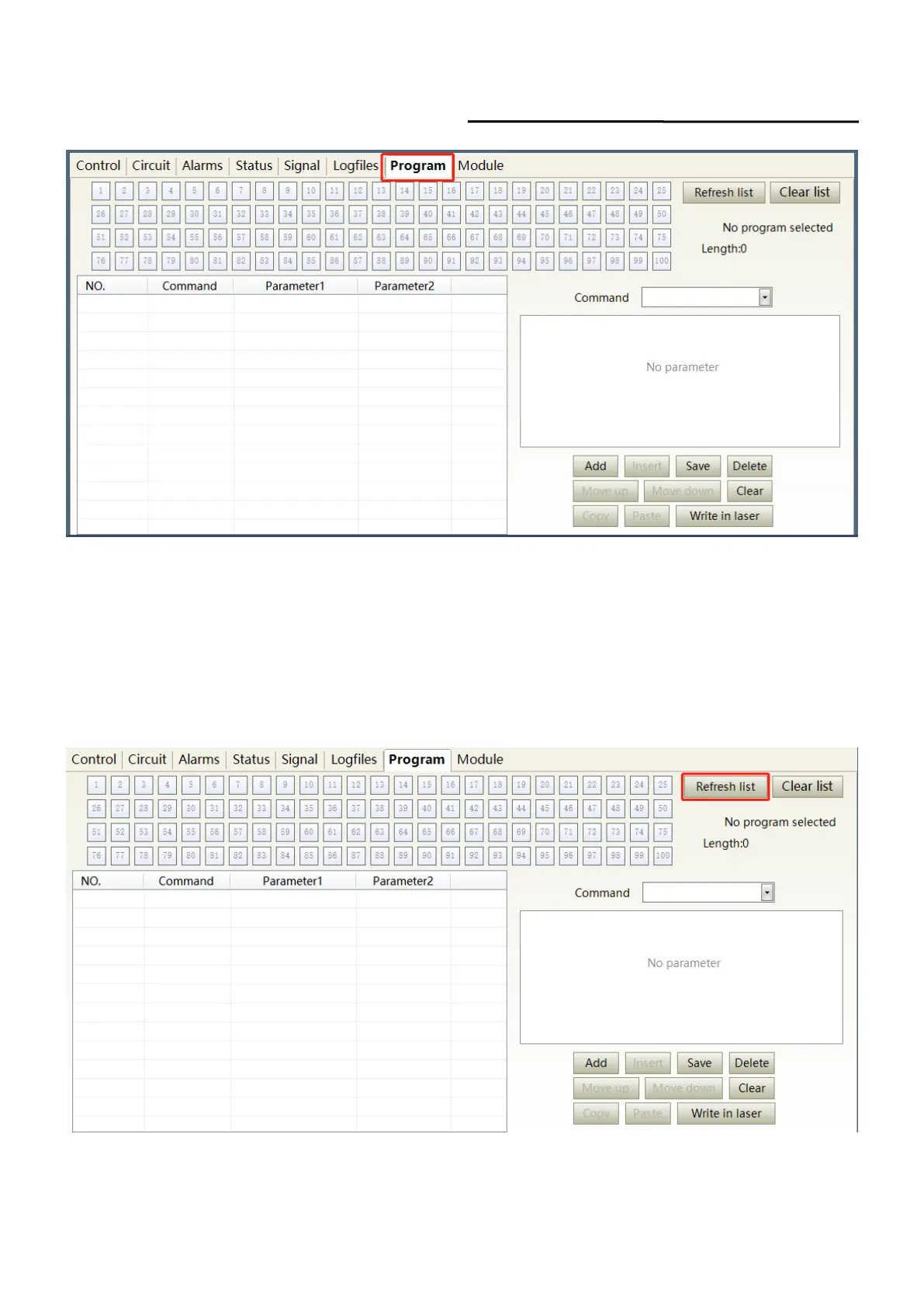

Figure 52 The programming interface in programming editing mode
8.13.1 View the Number of Wave Bars inside the Current Laser
Operating interfaces of view the number of wave bar stored inside the current laser is as Figure 53.
The software automatically lists the number of wavelength bars that have been saved by click on the
‘Refresher List’ button. Green indicates the bar already has a program and white indicates that the bar is
empty.
Figure 53 operating interfaces of wave bar stored inside the current laser
