Raycus XZ Series User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C20000TZ
45
6.4 Laser Operating in External Control Programming Mode
XP3(Serial Interface)
XP5(Ethernet Interface)
AC INPUT
XP2
(Security Interface)
PC
AC POWER
~380VAC
L1
L2
L3
PE
1
2
17
18
19
20
Ethernet cable
Interlock1
Interlock2
Serial port line
Raycus Laser
MOD+
MOD -
Peripheral
Equipment

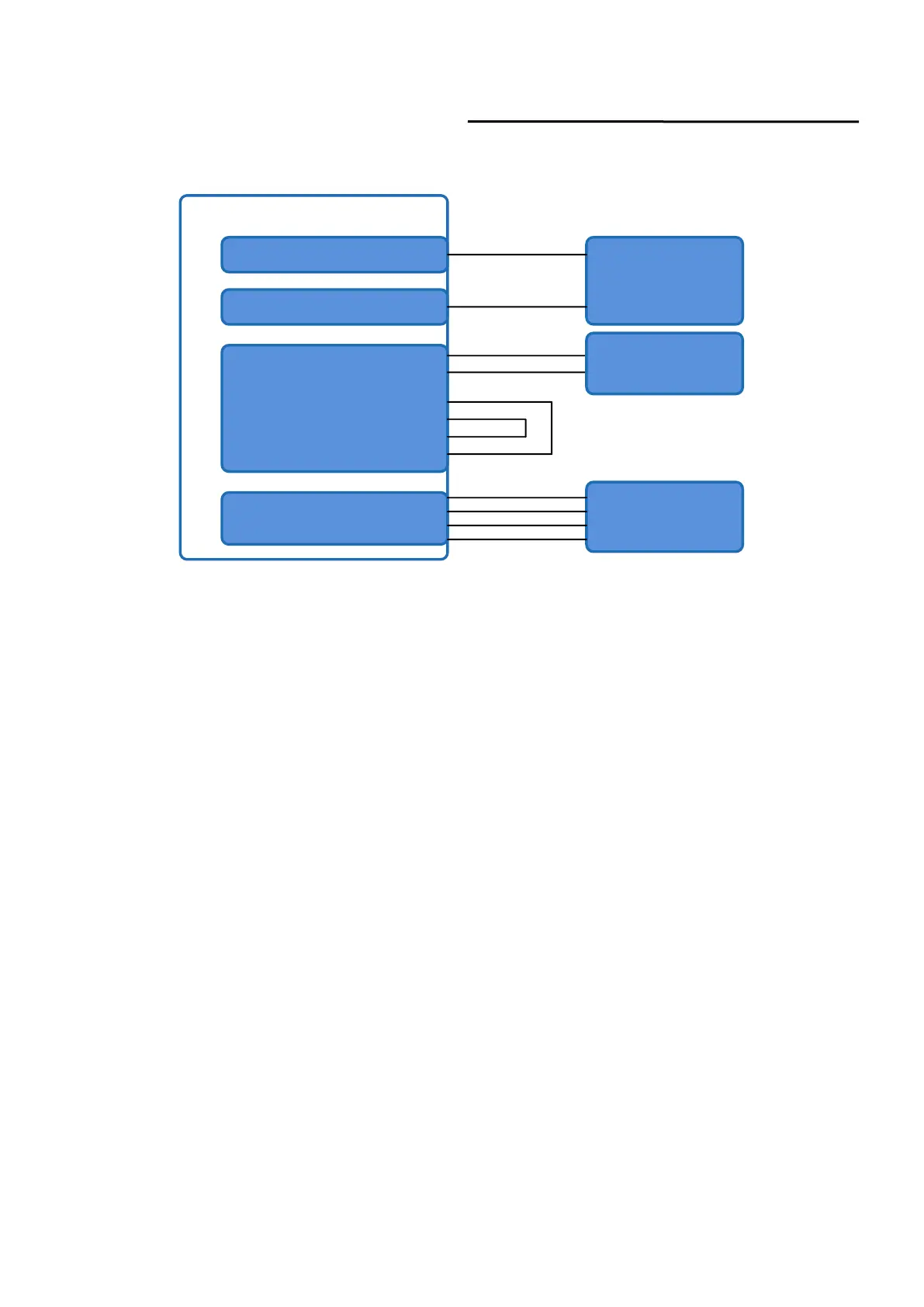

Figure 21 Wiring diagram of external control laser emission in programming mode, in ON mode
Operations Steps
a) Turn the knob switch on the rear panel to“ON”
b) Turn the key switch to“ON”
c) Open the Raycus PC software
d) Click the guide laser “ON” button to view the guide laser
e) Click the main power “ON”
f) Waiting for “Ready”
g) Set the pre-executed waveform number (the program number is greater than 0)
h) Start waveform at the rising edge of MOD signal.
NOTE:
The high-level time of MOD must be greater than the program running time. If MOD
gives a falling edge in advance, the Raycus PC software will display that the laser program is
abnormally terminated.
